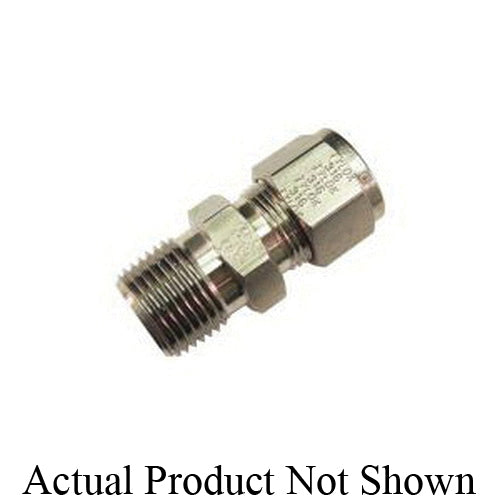

Tylok SS-5-DMC-4 Stainless 5/16 CBC Tube x 1/4 MNPT Straight

Product Description

The Tylok SS-5-DMC-4 is a stainless steel CBC tube connector designed for durability and reliability. This connector features a 5/16 inch nominal size with a Male National Pipe Thread (MNPT) end. It includes a double ferrule design for secure connections.

• Made from stainless steel for corrosion resistance
• Temperature range from -20 to 1000 degrees Fahrenheit
• Integrated double ferrule system for effective sealing

Product Highlights

This connector is suitable for various piping applications where secure fittings are needed, ensuring tight seals under high temperature.

Product Information

Standard Information

• Manufacturer: Tylok International Inc
• UPC: 00811731022809

Technical Specifications

• Domestic/Import: Domestic
• End Style: Tube x MNPT
• Fitting/Connector Type: Connector
• Hex Size: 9/16 inch Body
• Length: 1.54 inches
• Material: Stainless Steel
• Nominal Size: 5/16 inch
• Series: DMC
• Temperature Rating: -20 to 1000 degrees Fahrenheit
• Type: Double Ferrule
