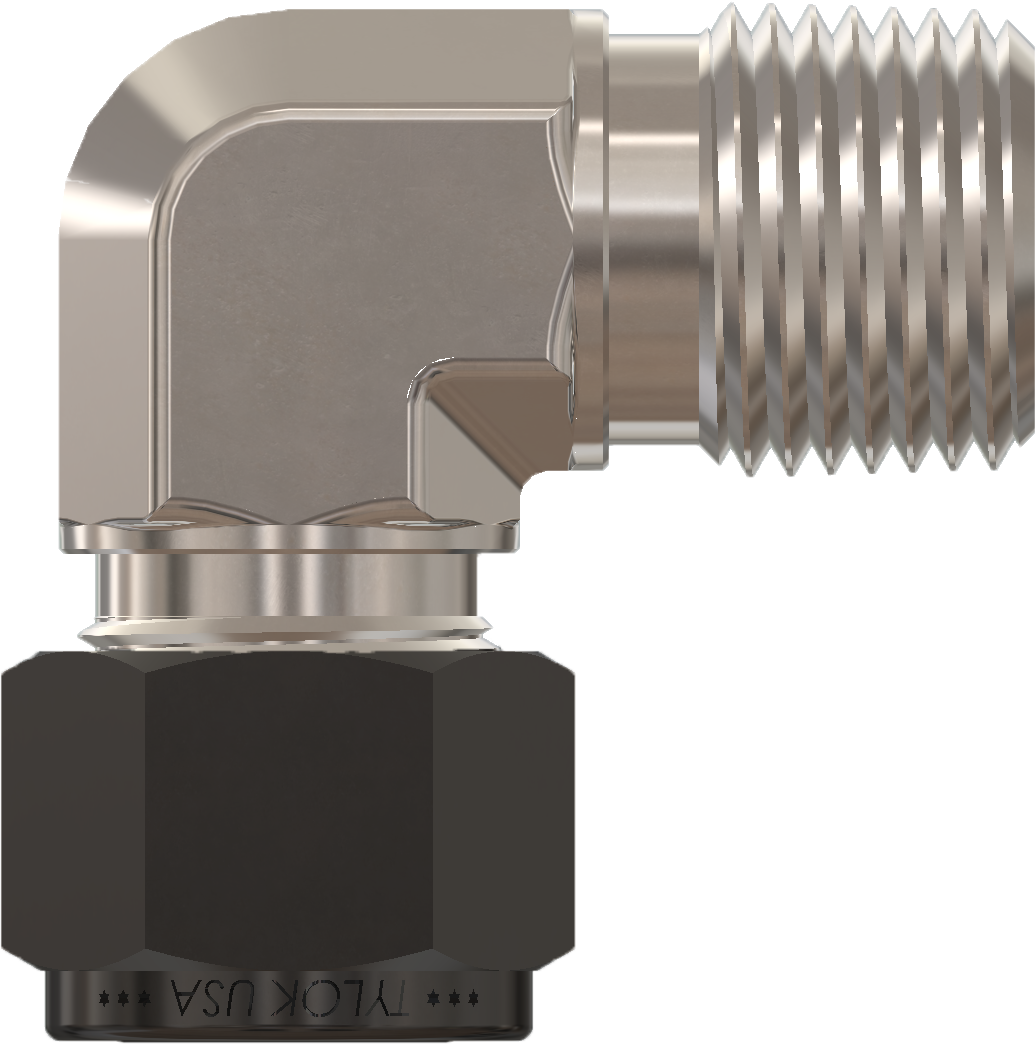

TYLOK SS-4-SME-4 Stainless 1/4 CS Tube x 1/4 MNPT Elbow, Single Ferrule System

Product Description

The TYLOK SS-4-SME-4 is a stainless steel elbow fitting designed for connecting a quarter-inch CS tube to a quarter-inch MNPT pipe. This single ferrule system ensures a secure and reliable connection. Ideal for various piping applications, it is suitable for both commercial and industrial settings.

• Constructed from durable 316 stainless steel
• Designed for easy installation with a single ferrule swaging system
• Heat code traceable for compliance and standards

Product Highlights

TYLOK's elbow fittings are built to withstand vibrations and are compatible with existing components in the field, making them a practical choice for professionals in the plumbing and HVAC industries.

Product Information

Standard Information

• Brand: TYLOK INTERNATIONAL INC
• Type: Single Ferrule

Technical Specifications

• Material: 316 Stainless Steel
• Nominal Size: 1/4 in
• End Style: Tube x MNPT
• Fitting/Connector Type: 90 deg Elbow
• Domestic/Import: Domestic
• Series: SME
• Nut Size: 9/16 in
• Pipe Thread: 1/8-27 NPT
