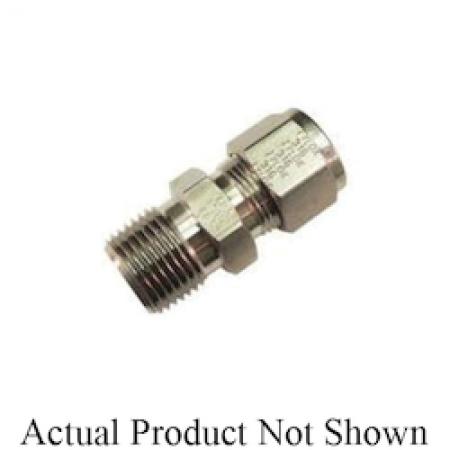

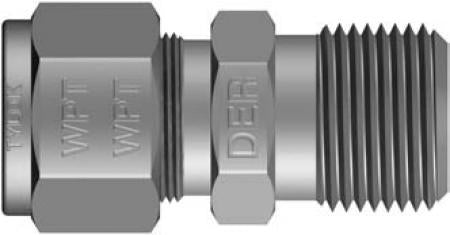

Tylok SS-4-DMC-4 CBC-LOK Male Connector Stainless Steel 1/4 Inch Tube x 1/4 Inch Pipe

Product Description

The Tylok SS-4-DMC-4 is a premium CBC-LOK male connector crafted for reliability in various industrial applications. Engineered by Tylok International, this connector features a 316 stainless steel construction ensuring superior durability and resistance to corrosive materials.

• Interchangeable with Swagelok SS-400-1-4 and Parker A-Lok fittings.
• Incorporates a double ferrule design to guarantee a secure and leak-proof connection.
• Heat code traceable for quality assurance.

Product Highlights

This male connector is designed with a double ferrule swaging action that enhances the sealing ability without the use of additional tools. It's ideal for connecting tubes and pipes in systems handling corrosive substances or extreme temperatures.

Product Information

Standard Information

• Brand: Tylok
• Series: DMC
• Material: 316 Stainless Steel

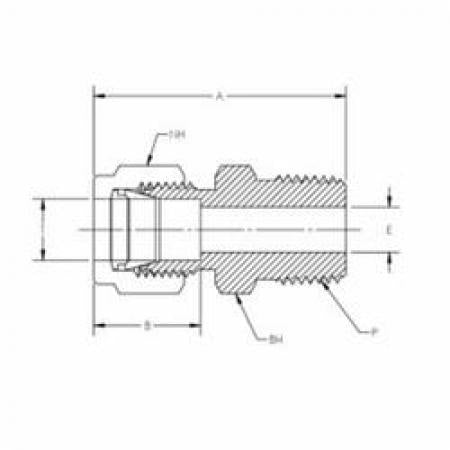

Technical Specifications

• Connection Type: Tube x MNPT
• Nominal Size: 1/4 inch
• Length: 1.494 inches
• Hex Size: 9/16 inch
• Pressure Rating: 4000 psig
• Temperature Range: -40 to 400 degrees F
• Standards/Certifications: ABS certified, ISO 9001 standard
