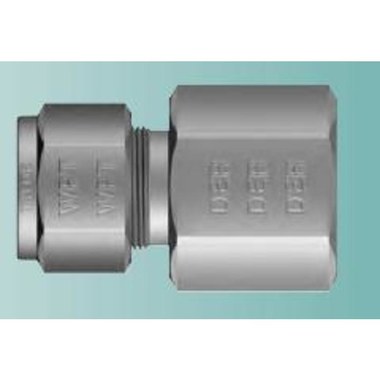

TYLOK SS-12-DFC-8 CBC FEMALE CONNECTOR 3/4 x 1/8 in

Product Description

The TYLOK SS-12-DFC-8 is a CBC female connector designed for efficient piping applications. This connector features a double ferrule and is suitable for use with various tubing systems. It is made from stainless steel, ensuring durability and reliability in different temperature ranges.

• Double ferrule design for secure fittings
• Temperature rating between -20 to 1000 degrees Fahrenheit
• Manufactured in the United States

Product Highlights

The TYLOK SS-12-DFC-8 provides excellent component interchangeability and is heat code traceable for consistent quality and performance.

Product Information

Standard Information

• Manufacturer: TYLOK INTERNATIONAL INC
• Type: Double Ferrule

Technical Specifications

• Domestic/Import: Domestic
• End Style: Tube x FNPT
• Fitting/Connector Type: Connector
• Hex Size: 1-1/16 in Body
• Length: 1.837 in
• Material: Stainless Steel
• Nominal Size: 3/4 x 1/8 in
• Series: DFC
• Temperature Rating: -20 to 1000 deg F
