Tylok b-dncset-4-5 Double Ferrule Tube Set 1/4 in Brass

Product Description

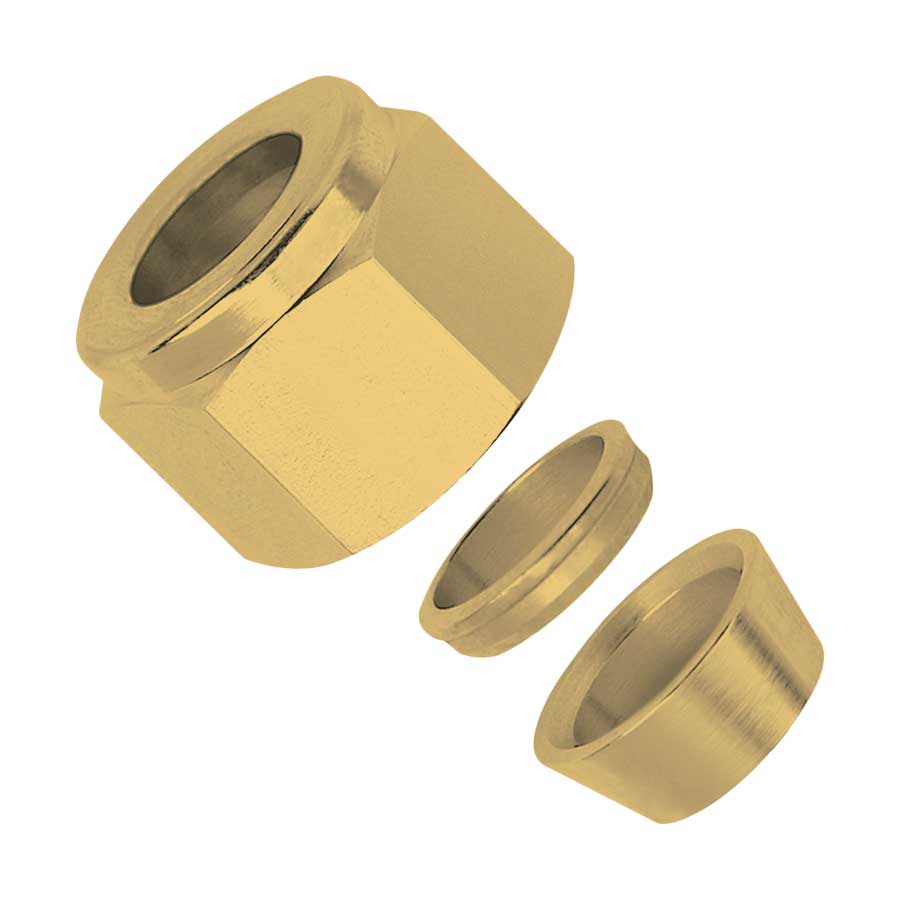

The TYLOK b-dncset-4-5 is a double ferrule tube nut and collet set designed for use with CBC-Lok compression tube fittings. Each set includes one nut, one front ferrule, and one rear ferrule, all machined from brass to ASTM and industry material standards. Weighing just 0.02 pounds, this set provides the compression components needed to complete a tube fitting assembly in instrumentation, fluid, or gas systems. CBC-Lok components are manufactured domestically in the U.S.A. to strict quality control requirements, including ISO 9001:2008 certification and ABS approval.

This set is intended for use in instrumentation tubing applications where reliable, leak-free compression fittings are required. It fits 1/4 inch nominal tube size and is suited for residential, commercial, and industrial installations involving gas, fluid, or instrumentation lines. Licensed tradespeople including pipefitters, HVAC technicians, and instrumentation specialists working with compression-style tube fittings will find this set a direct-fit solution for CBC-Lok fitting bodies.

Key Features

• Double ferrule design provides positive front and rear bite for a secure, leak-resistant seal
• Brass construction meets ASTM B16 Alloy 360 and ASTM B453 Alloy 345 bar stock standards
• Set includes one nut, one front ferrule, and one rear ferrule — all components needed for one fitting end
• Fully interchangeable with Swagelok and Parker A-Lok double ferrule components
• Manufactured domestically in the U.S.A. under ISO 9001:2008 quality management standards
• Holds ABS approval and Canadian Registration, meeting broad project specification requirements

Compatibility

CBC-Lok tube fittings and component sets are fully interchangeable with Swagelok and Parker A-Lok double ferrule fittings. Intermixing CBC-Lok bodies and component parts with those of other manufacturers does not adversely affect sealing ability, though using all CBC-Lok components throughout an assembly is recommended.

Installation Notes

Installation of compression tube fittings is typically performed by licensed pipefitters, instrumentation technicians, or HVAC technicians. Always depressurize and isolate the line before disassembling or assembling any tube fitting. Hand-tighten the nut to seat the ferrules, then advance with a wrench per the fitting body manufacturer's standard finger-tight-plus procedure. Follow applicable codes including ASTM F1387 for compression fittings in fluid systems.

Technical Specifications

• Series: DNCSET
• Type: Double Ferrule
• Nominal Size: 1/4 inch
• Material: Brass
• Weight: 0.02 pounds
• Country of Origin: United States
• Standards and Approvals: ASTM B16 Alloy 360 / ASTM B453 Alloy 345 Bar Stock, ASTM B124 Alloy 377 Forging, ASTM B75 Copper Temper (O) Tubing, ABS, ASTM F1387, Canadian Registration, ISO 9001:2008

Standard Information

• Brand: TYLOK
• Manufacturer Part Number: b-dncset-4-5
