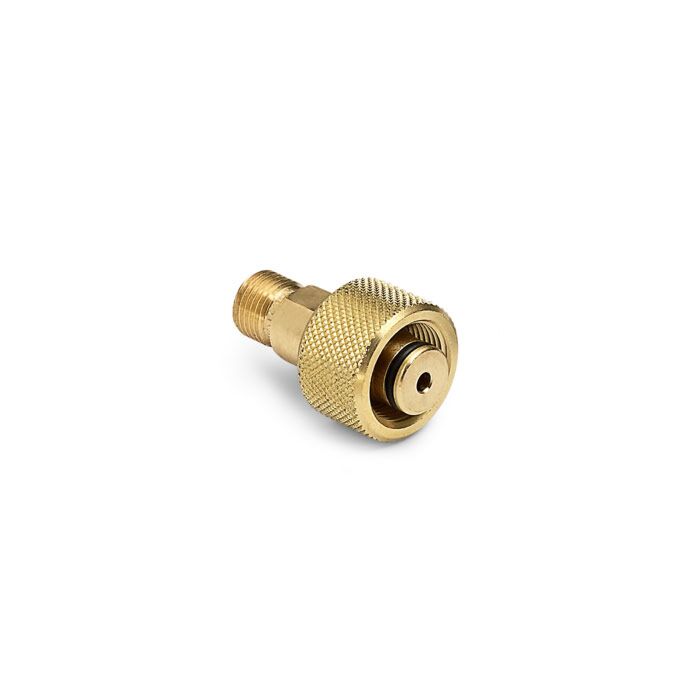

TYLOK 6176 1/2 Tube Fitting x Male Quick Test Adapter

Product Description

The TYLOK 6176 is a quick test adapter designed for connecting tube fittings without the need for a wrench. This unit effectively seals using an o-ring, which helps avoid damage to the tube fittings. It is suitable for applications such as pressure calibration, gas sampling, and pressure testing.

• Connects to various tube fittings like Swagelok and Parker.
• O-ring seal prevents damage to fittings.
• Ideal for pressure calibration and testing applications.

Product Highlights

This adapter is essential for secure connections in various testing environments.

Product Information

Standard Information

• Brand: TYLOK
• MPN: 6176

Technical Specifications

• Materials: Brass
• Max Operating Temperature: 225 °F / 105 °C
• Max Pressure: 5000 PSI / 350 bar / 35 MPa
• Max Vacuum: 0 InHg / 0.0 kPa
• Seal Materials: Buna-N
• End 1 Connector: 1/2 Male Tube Fitting
• End 1 Quick Disconnect: Yes
• Weight: 2.85 oz / 81 grams
