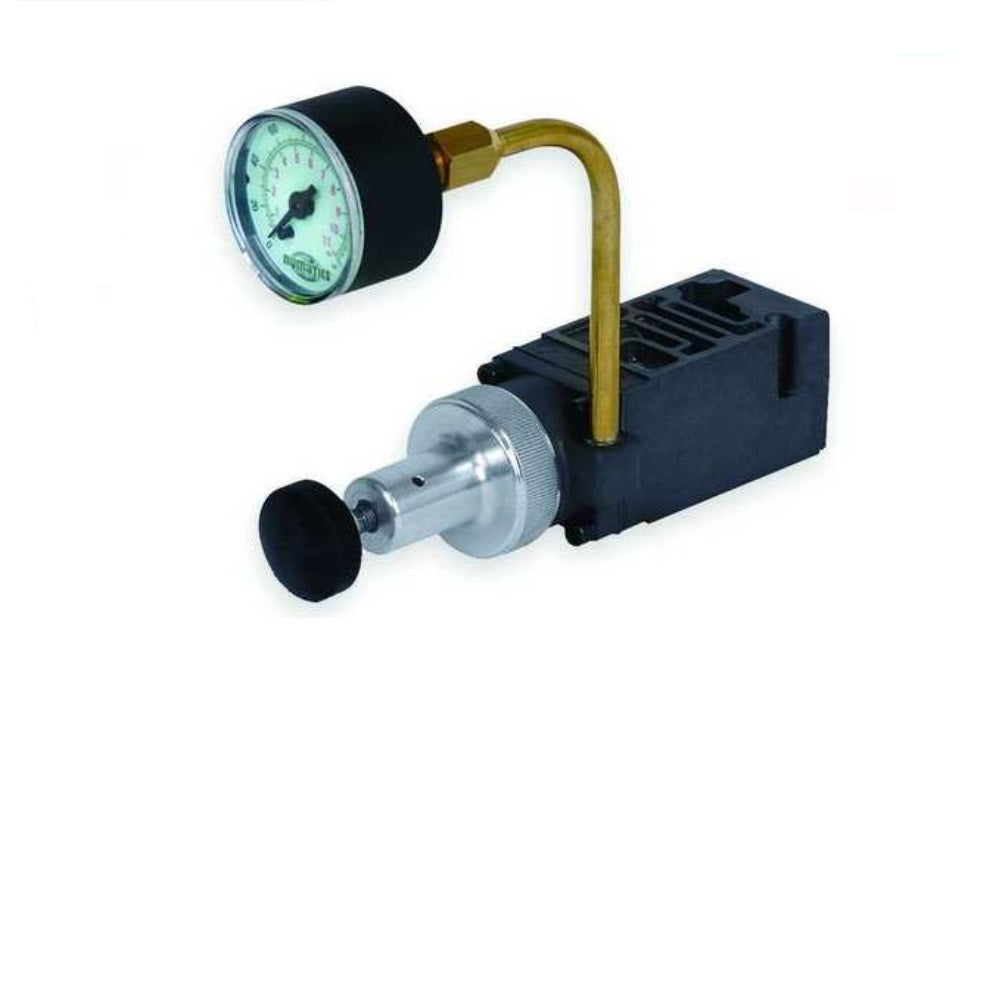

TYLOK 081RS100J000000 Single Pressure Regulator

Product Description

The TYLOK 081RS100J000000 is a single pressure regulator suitable for regulating pressure to port one. This component is part of the Numatics/Aventics Mark 8 series. It features a convenient plug-in base or manifold, allowing for easy valve replacement without the need to disconnect piping or wiring. This regulator accommodates both unlubricated and lubricated service, making it versatile across various applications.

• Type: Single pressure to port one
• Pressure range: 10-130 PSIG (0.7 - 9 BAR)
• Wiring: Plug-in for easy connection

Product Highlights

This unit is designed for use in systems with port sizes of one-eighth and one-quarter NPTF or G.

Product Information

Standard Information

• Regulator Type: Single pressure to port one
• Pressure Range: 10-130 PSIG (0.7 - 9 BAR)

Technical Specifications

• CV: 0.8 to 1.0
• Port Sizes: 1/8, 1/4 NPTF & G
• Flow Capacity: 37 to 46 SCFM at 80 PSIG / 790 to 985 NI/M at 6 BAR
• Operating Pressure Range: 28 Hg. Vacuum to 150 PSIG / Vacuum to 10 BAR
• Pilot Pressure Range: 20 to 115 PSIG / 1.5 to 8 BAR
• Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C
