Tyler Pipe 010265 3 no-hub deep seal p-trap 3 in

Product Description

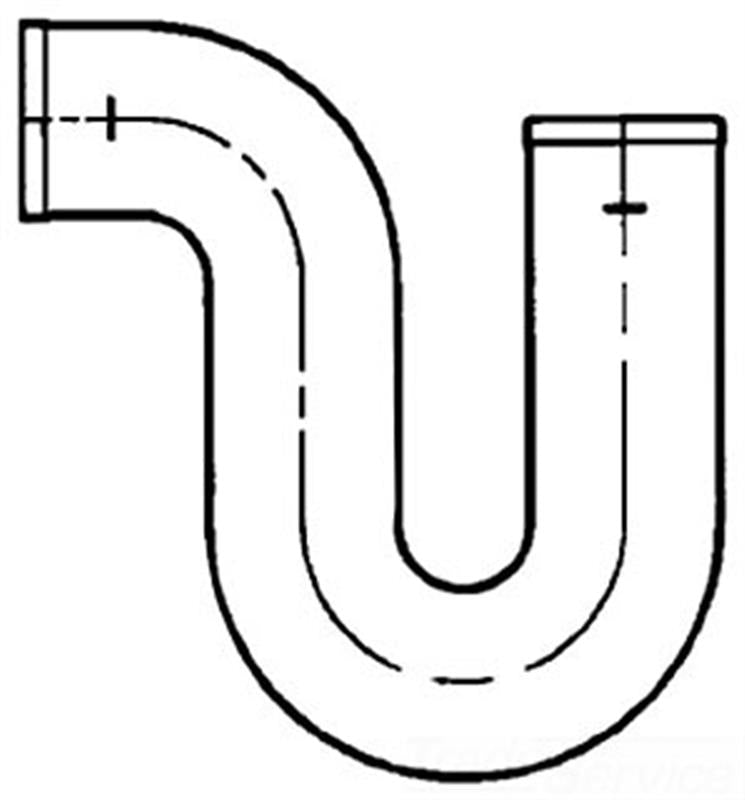

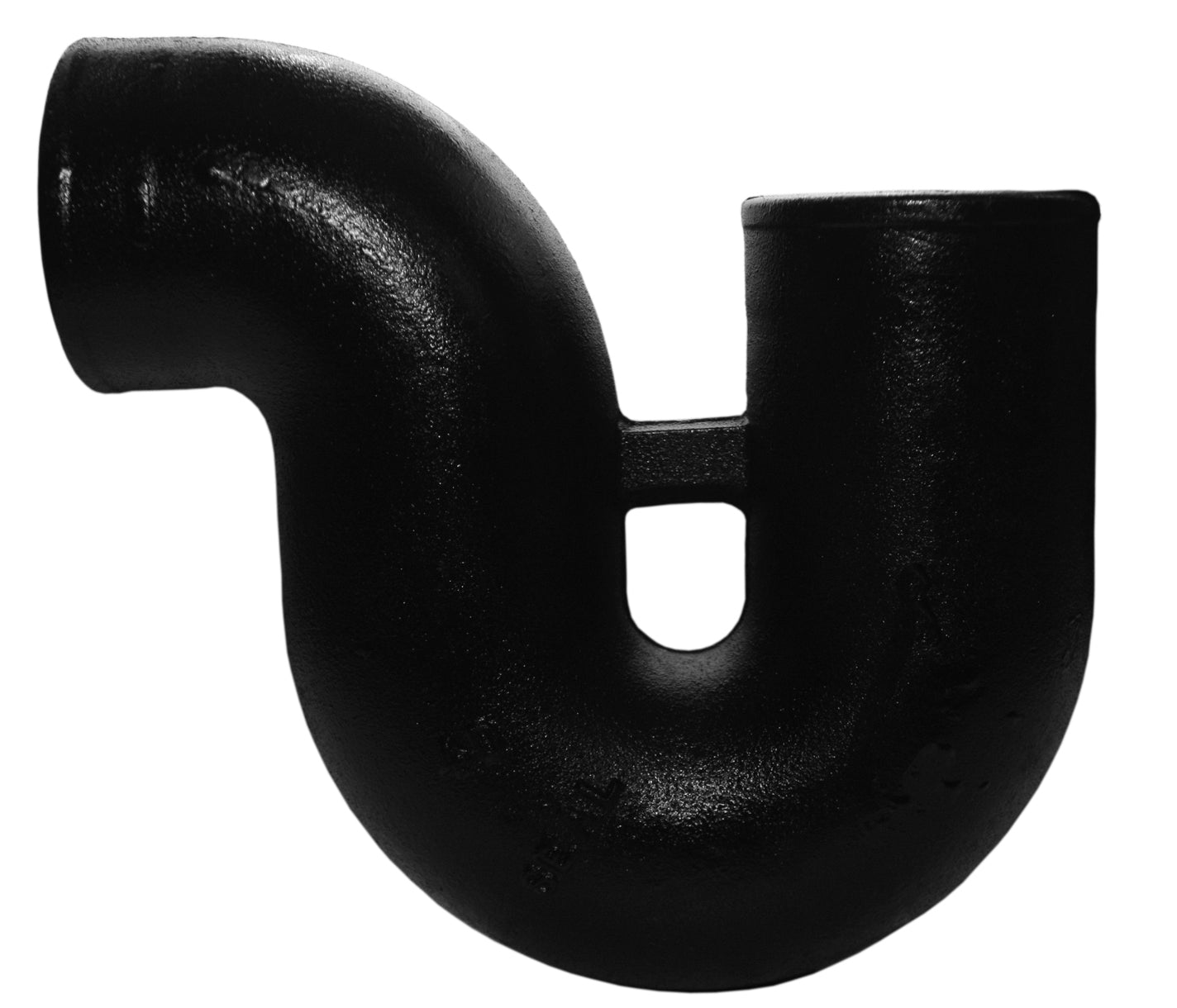

The TYLER PIPE 010265 No-Hub Deep Seal P-Trap is a 3 IN cast iron fitting designed for plumbing systems. This P-trap, conforming to ASTM A888 material standards, features a 9 IN center to end dimension. It is suitable for above and below grade soil, waste, vent lines, rainwater conductors, and storm drainage applications, ensuring efficient waste management and ventilation.

• Designed for above and below grade soil, waste, vent lines, rain water conductors and storm drainage lines.
• Complies with Cast Iron Soil Pipe Institute Standards 301 or ASTM A888.
• Features a No-Hub end style for secure connections in drainage systems.

Product Highlights

Durable cast iron P-trap for various drainage applications, meeting industry standards.

Product Information

Standard Information

• Brand: TYLER PIPE
• Manufacturer Part Number: 010265
• Country of Origin: USA

Technical Specifications

• Nominal Size: 3 IN
• Material: Cast Iron
• Material Standard: ASTM A888
• Type: Deep Seal
• End Style: No-Hub
• Fitting/Connector Type: P-Trap
• Applicable Standard: CISPI 301, WW-P-401E, NSF, ICC-ES-PMG, OSHA 29 CFR 1910.1200, EPA
• Application: DWV, Grade Soil, Waste, Vent Line, Rain Water Conductor
