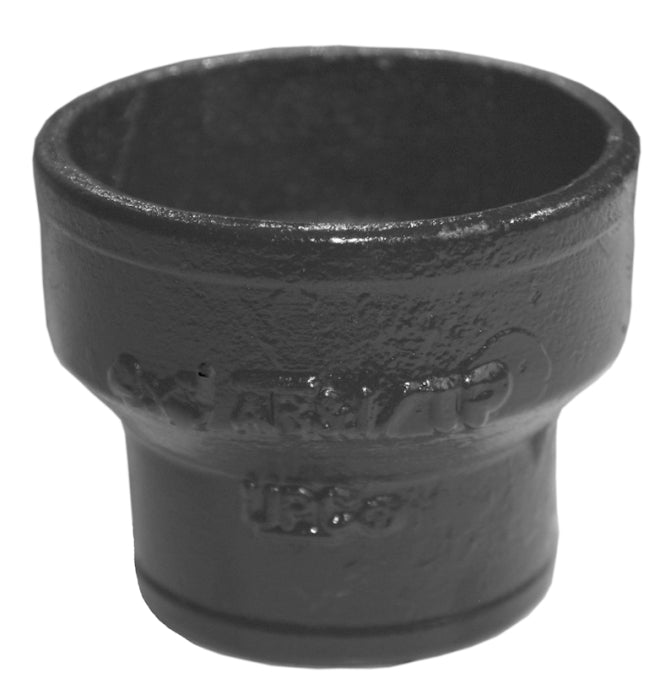

Tyler Pipe 009696 Short Pipe Reducer 4 x 3 in No-Hub Cast Iron

Product Description

The Tyler Pipe 009696 Short Pipe Reducer is a cast iron fitting designed for use in various sanitary and storm drainage applications. This reducer has a nominal size of 4 x 3 inches and features a no-hub end style. It is crafted from durable cast iron material, suitable for above and below-grade installations.

• Nominal Size: 4 x 3 inches
• No-Hub End Style
• Made from Cast Iron

Product Highlights

The Tyler Pipe 009696 Short Pipe Reducer is ideal for soil, waste, and vent lines. It is suitable for non-pressure applications and can withstand temperatures up to 212 degrees Fahrenheit.

Product Information

Standard Information

• End Style: No-Hub
• Fitting/Connector Type: Reducer

Technical Specifications

• Material: Cast Iron
• Nominal Size: 4 x 3 inches
• Length: 3-5/8 inches
• Temperature Rating: 212 degrees Fahrenheit
• Type: Short
• Specifications Met: ASTM A888, CISPI 301, ICC-ES PMG Listed, NSF Approved
• Manufacture Process: Cast
• Weight: 2.2 lbs
