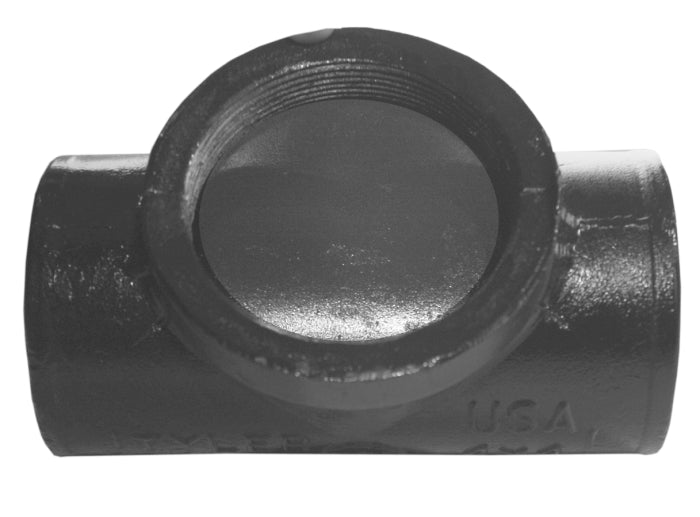

Tyler Pipe 009436 Test Tee 3 in No-Hub End Style Cast Iron

Product Description

The Tyler Pipe 009436 is a cast iron test tee designed for 3-inch nominal pipe sizes. Made for both above and below grade applications, this test tee is ideal for soil, waste, and vent lines, as well as rainwater conductors and storm drainage lines. It features a no-hub end style and is strongly recommended to be used with shielded couplings meeting CISPI 310 standards.

• 3-inch nominal pipe size
• No-hub end style
• Cast iron construction for durability

Product Highlights

The Tyler Pipe 009436 is crafted from cast iron, known for its strength and durability. Suitable for various drainage, waste, and vent applications, this test tee is non-combustible and offers excellent soundproofing qualities.

Product Information

Standard Information

• Brand: Tyler Pipe
• MPN: 009436
• UPC: 670610009436
• Manufacturer: Tyler Pipe & Coupling

Technical Specifications

• End Style: No-Hub
• Fitting/Connector Type: Tee
• Length: 2-11/16 inches
• Material: Cast Iron
• Nominal Size: 3 inches
• Weight: 4.8 lbs
• Specifications Met: ASTM A888, CISPI 301, ICC-ES PMG Listed, NSF Approved
• Manufacture Process: Cast
