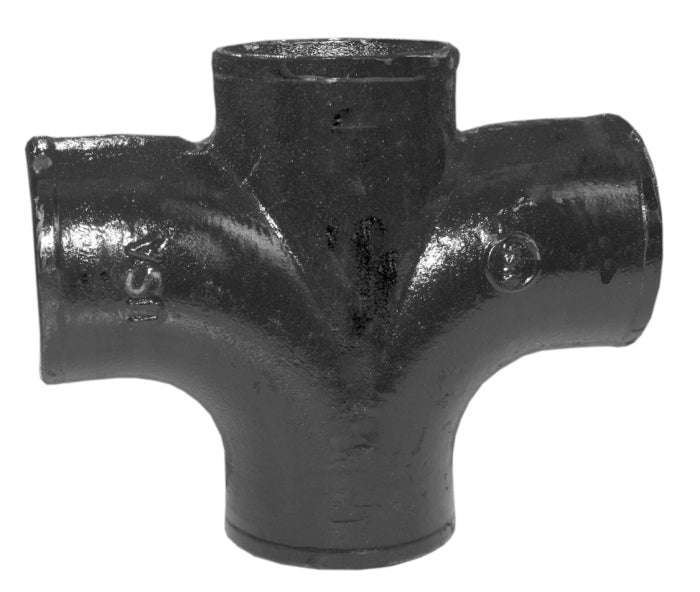

Tyler Pipe 009078 Sanitary Cross 2 Inch No-Hub Cast Iron

Product Description

The Tyler Pipe 009078 Sanitary Cross is a component for plumbing systems. It is a 2 inch nominal fitting made of durable cast iron. Used in various piping systems including above and below grade soil, waste, vent lines, rainwater conductors, and storm drainage lines. The fitting features a No-Hub end style for easy installation.

• 2 inch nominal size
• No-Hub end style
• Made of cast iron

Product Highlights

This sanitary cross complies with the Cast Iron Soil Pipe Institute Standards 301 and ASTM A888. It is designed for seamless integration into sanitary systems and should be used with shielded couplings as per CISPI 310 standards.

Product Information

Standard Information

• Brand: Tyler Pipe
• MPN: 009078
• UPC: 670610009078

Technical Specifications

• Dimensions: 4-1/2 x 4-1/2 inches center to end
• End Style: No-Hub
• Fitting/Connector Type: Cross
• Length: 6-7/8 inches
• Material: Cast Iron
• Nominal Size: 2 inches
• Standards Met: ASTM A888, CISPI 301, ICC ES PMG, NSF Approved
• Weight: 1 lb.
