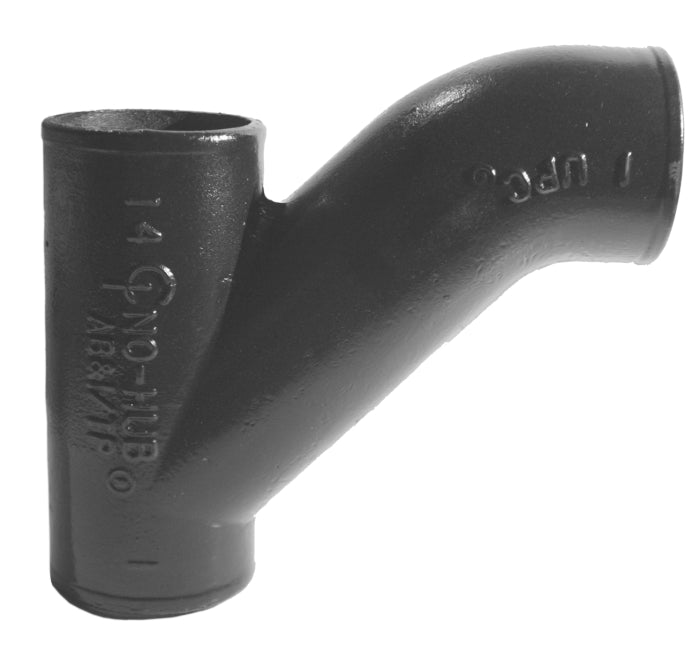

Tyler Pipe 008958 DWV Combination Wye and Bend 8 in Cast Iron No-Hub

Product Description

Tyler Pipe 008958 DWV Combination Wye and Bend, 8 in Nominal, No-Hub End Style, is a reliable cast iron fitting for both above and below grade soil, waste, vent lines, rain water conductors, and storm drainage lines. It carries the NO HUB insignia indicating compliance with Cast Iron Soil Pipe Institute Standards 301 and ASTM A888.

• 8-inch nominal size
• No-Hub end style
• Cast iron construction

Product Highlights

The Tyler Pipe 008958 DWV Combination Wye and Bend is used for non-pressure applications with temperature limits up to 212 degrees Fahrenheit. It offers high durability and excellent sound deadening properties, making it ideal for various construction types.

Product Information

Standard Information

• Brand: Tyler Pipe
• MPN: 008958

Technical Specifications

• Nominal Size: 8 in
• End Style: No-Hub
• Material: Cast Iron
• Dimensions: 14-3/4 x 15-9/16 x 3-3/4 in Center to End
• Length: 16-15/16 in
• Fitting/Connector Type: Combination Wye
