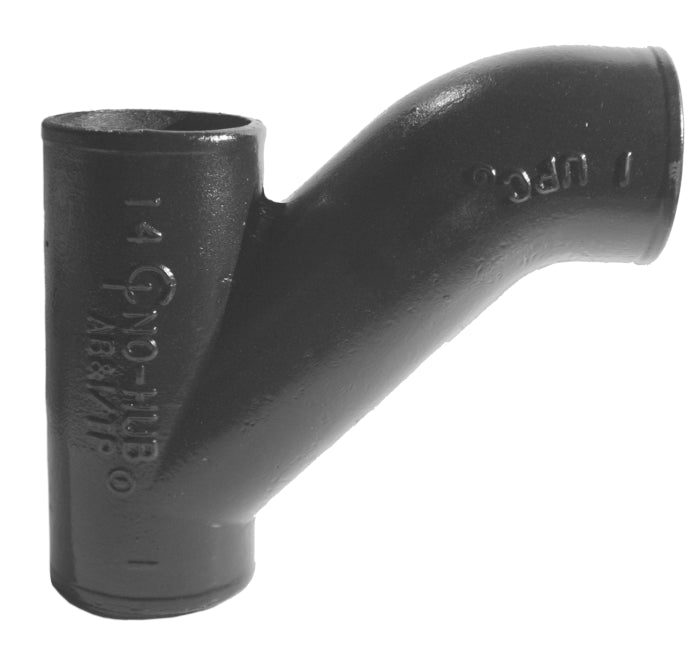

Tyler Pipe 008903 DWV Combination Wye and Bend 6 x 6 x 4 in No-Hub Cast Iron

Product Description

The Tyler Pipe 008903 DWV Combination Wye and Bend is perfect for various piping systems. This fitting accommodates 6 x 6 x 4 inches in nominal size. It has a no-hub end style and is crafted from cast iron.

• Designed for above and below-grade applications
• Ideal for waste, vent lines, rainwater conductors, and storm drainage lines
• Meets ASTM A888 and CISPI 301 standards

Product Highlights

This cast iron fitting is used in sanitary systems and is designed to last. The no-hub end style streamlines installation, and it meets critical industry standards, ensuring reliability.

Product Information

Standard Information

• Brand: Tyler Pipe
• MPN: 008903

Technical Specifications

• Dimensions: 9-3/4 x 11 x 1-15/16 in Center to End
• End Style: No-Hub
• Fitting/Connector Type: Combination Wye
• Length: 11-3/16 in
• Material: Cast Iron
• Nominal Size: 6 x 6 x 4 in
• Standards Met: ASTM A888, CISPI 301, ICC ES PMG Listed, NSF Approved
• Weight: 18.2 lb
