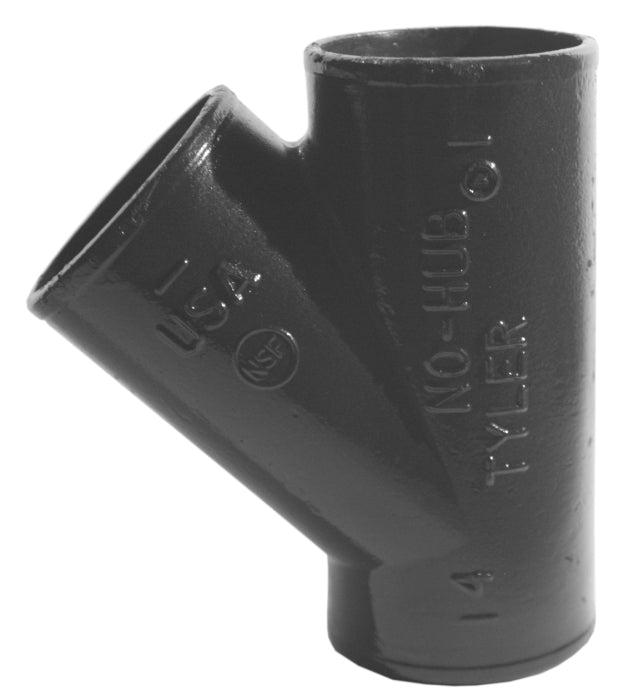

Tyler Pipe 008255 Wye-Branch No-Hub Cast Iron 4 x 4 x 3 inches

Product Description

Tyler Pipe 008255 Wye-Branch is a cast iron pipe fitting designed for sanitary and storm drain, waste, and vent applications. It features a no-hub end style and measures 4 x 4 x 3 inches. The cast iron construction ensures durability and long-lasting performance.

• Nominal size: 4 x 4 x 3 inches
• No-Hub end style
• Cast iron material

Product Highlights

Tyler Pipe 008255 Wye-Branch is ideal for both above and below grade installations. It is suitable for non-pressure applications where temperatures do not exceed 212 degrees Fahrenheit. The cast iron construction offers high crush strength and superior sound deadening performance.

Product Information

Standard Information

• Brand: Tyler Pipe
• MPN: 008255

Technical Specifications

• Nominal Size: 4 x 4 x 3 inches
• Material: Cast Iron
• End Style: No-Hub
• Length: 8 inches
• Pressure Rating: 4.3 psi
• Temperature Rating: 212 degrees Fahrenheit
• Dimensions: 1-11/16 inches Center to End Inlet, 6-1/2 inches Center to End Outlet
• Weight: 9 lb.
• Specifications Met: ASTM A888, CISPI 301, ICC-ES PMG Listed, NSF Approved
