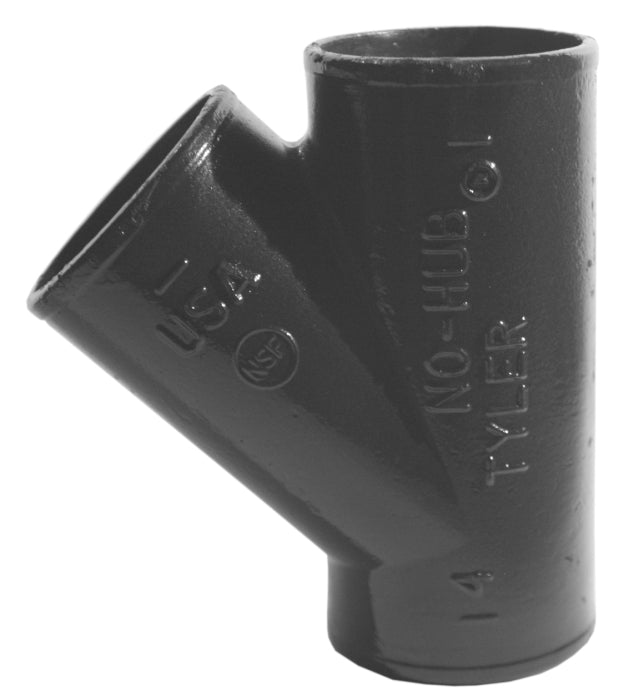

Tyler Pipe 008224 Pipe Wye-Branch 3 x 3 x 2 in No-Hub

Product Description

Tyler Pipe 008224 Pipe Wye-Branch, manufactured by Tyler Pipe & Coupling, is ideal for above and below grade soil, waste, vent lines, rainwater conductors, and storm drainage lines. This cast iron wye-branch fitting is designed for durability and strong performance in non-pressure applications. The 3 x 3 x 2 inch no-hub styled connector is noted for its high crush strength, non-combustibility, and superior sound deadening qualities.

• Cast iron construction
• No-hub end style
• 3 x 3 x 2 inch nominal size

Product Highlights

Tyler Pipe produces reliable cast iron fittings suitable for various drainage and vent systems. This wye-branch connector ensures a stable and efficient join in your piping setup.

Product Information

Standard Information

• Brand: Tyler Pipe
• Manufacturer: Tyler Pipe & Coupling
• MPN: 008224
• UPC: 670610008224

Technical Specifications

• Dimensions: 1-1/2 in Center to End Inlet, 5-5/16 in Center to End Outlet
• End Style: No-Hub
• Fitting/Connector Type: Wye
• Length: 6-5/8 inches
• Material: Cast Iron
• Nominal Size: 3 x 3 x 2 inches
• Specifications Met: ASTM A888, CISPI 301, ICC-ES PMG Listed, NSF Approved
• Manufacture Process: Cast
