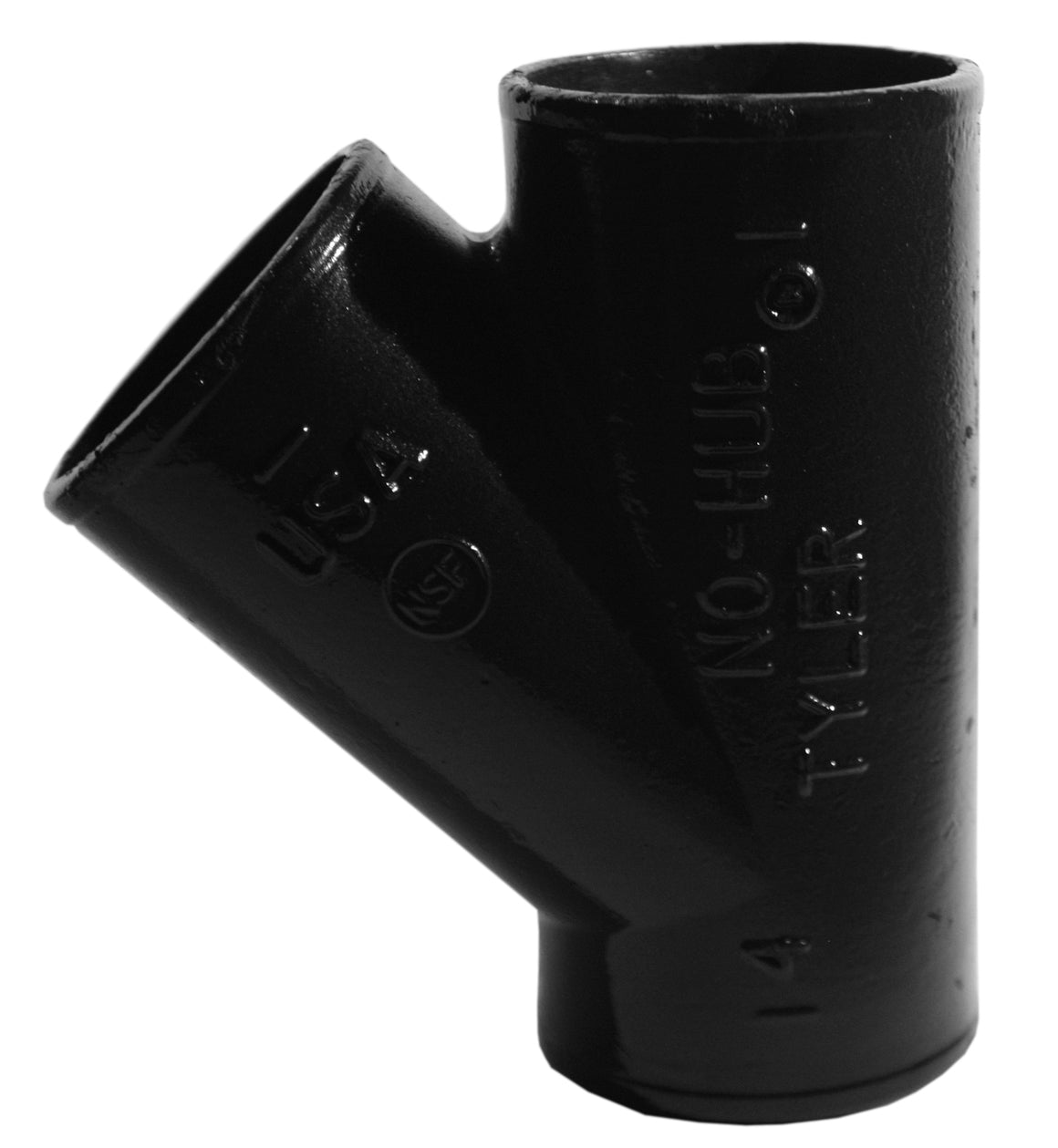

Tyler Pipe 008217 Pipe Wye-Branch, 2 in Nominal, No-Hub End Style

Product Description

The Tyler Pipe 008217 is a pipe wye-branch fitting designed for reliable connections in drainage systems. Made from durable cast iron, this fitting measures two inches nominal size and features a no-hub end style. It is suitable for various applications including sanitary and storm drainage.

• Material: Cast Iron
• Thickness: 0.16 inches
• Pressure Rating: 4.3 psi

Product Highlights

This fitting is ideal for use in above or below grade soil, waste, and vent lines. It is compliant with the Cast Iron Soil Pipe Institute standards, ensuring high performance and durability in plumbing applications.

Product Information

Standard Information

• Manufacturer: Tyler Pipe
• Part Number: 008217

Technical Specifications

• Dimensions: 2 in Center to End Inlet, 4-5/8 in Center to End Outlet
• End Style: No-Hub
• Fitting Type: Wye
• Length: 6-5/8 in
• Material: Cast Iron
• Nominal Size: 2 in
• Pressure Rating: 4.3 psi
• Temperature Rating: 212 deg F
• Standards/Approvals: ASTM A888, CISPI 301
