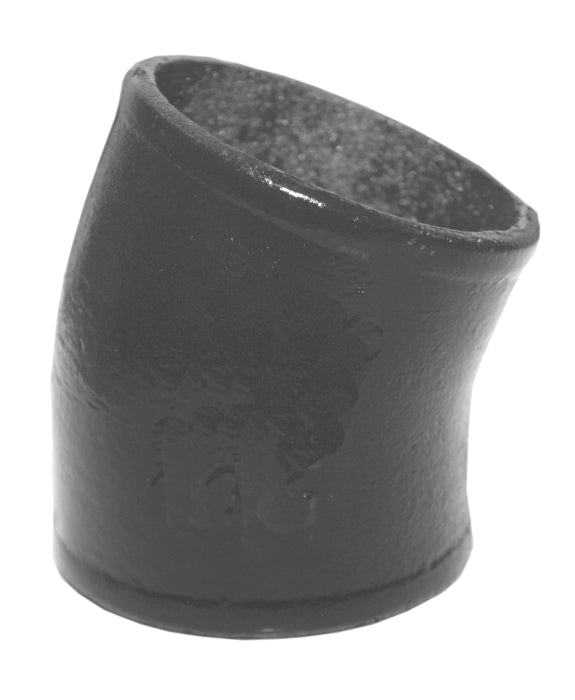

Tyler Pipe 007494 DWV Pipe Bend 2 Inch No-Hub End Style Cast Iron

Product Description

The Tyler Pipe 007494 is a cast iron DWV pipe bend, suitable for both above and below grade soil, waste, vent lines, rainwater conductors, and storm drainage lines. Manufactured by Tyler Pipe & Coupling, this bend features a 2-inch nominal size and a no-hub end style.

• Complies with ASTM A888 and CISPI 301 standards
• 1/16 bend fitting/connector
• 2-1/8 inches center to end dimensions

Product Highlights

This cast iron pipe bend offers a high crush strength and is non-combustible, making it a durable option for any DWV piping system. It is designed for non-pressure applications where temperatures will not exceed 212 degrees Fahrenheit, providing superior sound deadening performance.

Product Information

Standard Information

• UPC: 670610007494
• Brand: Tyler Pipe
• Manufacturer: Tyler Pipe & Coupling

Technical Specifications

• Material: Cast Iron
• Nominal Size: 2 inches
• End Style: No-Hub
• Fitting/Connector Type: 1/16 Bend
• Center to End Dimensions: 2-1/8 inches
• Bend Angle: 22-1/2 degrees
• Specifications Met: ASTM A888, CISPI 301, ICC-ES PMG Listed, NSF Approved
• Manufacture Process: Cast
