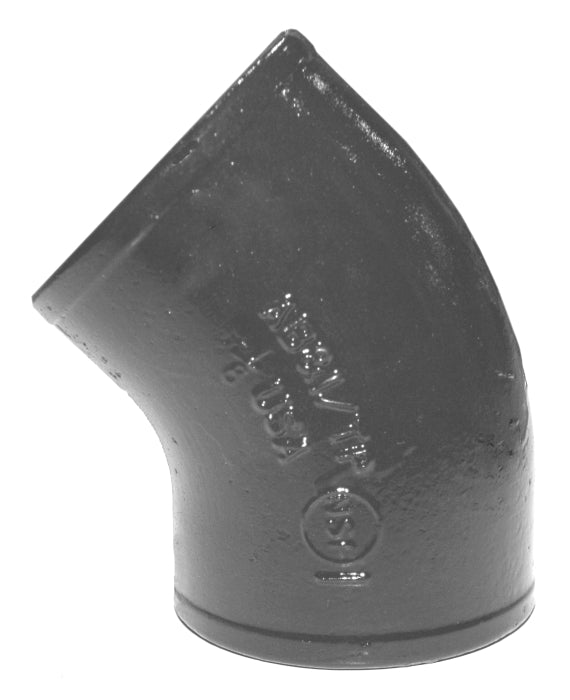

Tyler Pipe 007326 No-Hub DWV Pipe Bend 1-1/2 Inches

Product Description

The Tyler Pipe 007326 DWV Pipe Bend is a versatile fitting designed for various applications. This cast iron pipe bend suits both above and below grade lines, ensuring durability and reliability. Tyler Pipe recommends using shielded couplings that meet CISPI 310 specifications.

• Made from cast iron
• Suitable for soil, waste, and vent lines
• Complies with ASTM A888 and CISPI 301 standards

Product Highlights

This 1-1/2 inch nominal size, no-hub end style pipe bend is ideal for rainwater conductors, storm drainage lines, and other sanitary systems. It features a 1/8 bend fitting/connector type.

Product Information

Standard Information

• Brand: Tyler Pipe
• Manufacturer: Tyler Pipe & Coupling
• MPN: 007326

Technical Specifications

• Dimensions: 2-5/8 inches Center to End
• End Style: No-Hub
• Fitting/Connector Type: 1/8 Bend
• Material: Cast Iron
• Nominal Size: 1-1/2 inches
• Weight: 1.1 lb.
• Specifications Met: ASTM A888, CISPI 301, ICC-ES PMG Listed, NSF Approved
