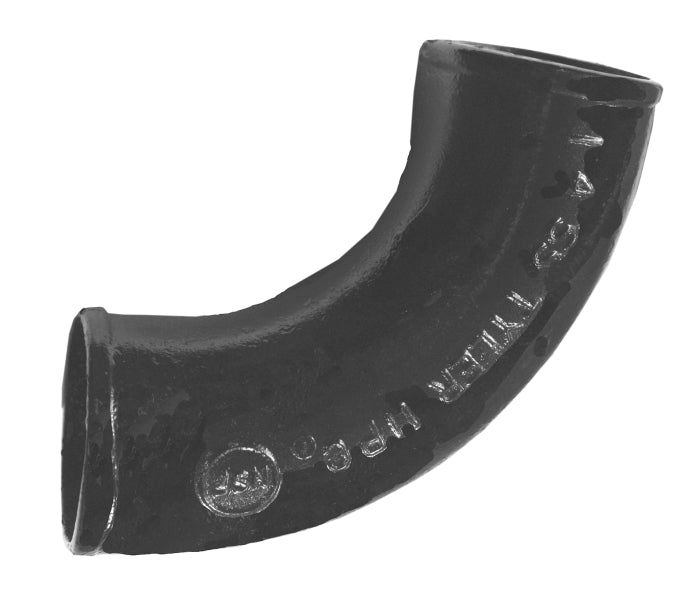

Tyler Pipe 007159 Short Sweep DWV Pipe Bend 6 Inch No-Hub Cast Iron

Product Description

Introducing the Tyler Pipe 007159 Short Sweep DWV Pipe Bend. This cast iron fitting is designed for both above and below grade applications. It supports waste, vent lines, rain water conductors, and storm drainage lines. The bend bears the insignia NO HUB indicating compliance with Cast Iron Soil Pipe Institute Standards 301 or ASTM A888.

• 6 inch nominal size
• Cast iron material
• No-Hub end style

Product Highlights

This fitting supports applications in sanitary systems and is recommended to be used with shielded couplings compliant with CISPI 310. Avoid using unshielded couplings to prevent voiding the product warranty.

Product Information

Standard Information

• Brand: Tyler Pipe
• Manufacturer: Tyler Pipe & Coupling

Technical Specifications

• Dimensions: 9 in Center to End
• End Style: No-Hub
• Fitting/Connector Type: 1/4 Bend
• Material: Cast Iron
• Nominal Size: 6 in
• Type: Short Sweep
• Specifications Met: ASTM A888, CISPI 301, ICC-ES PMG Listed, NSF Approved
• Bend Angle: 90 degrees
