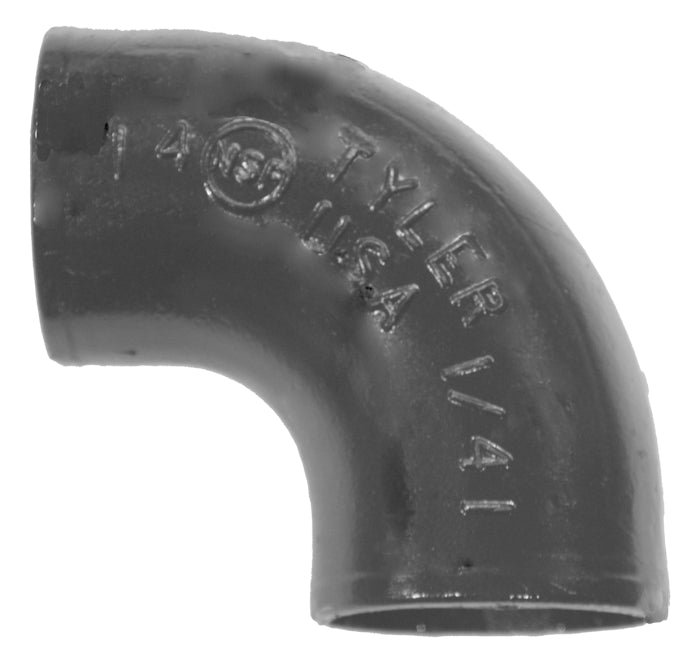

Tyler Pipe 006893 DWV Pipe Bend No-Hub Cast Iron 6 in

Product Description

The Tyler Pipe 006893 DWV Pipe Bend is a dependable choice for cast iron soil piping solutions. This fitting is suitable for both above and below-grade installations.

• Cast iron material ensures durability.
• No-Hub end style allows easy connections.
• 6 inch nominal size for various applications.

Product Highlights

Tyler Pipe 006893 DWV Pipe Bend is designed for soil, waste, and vent lines, along with storm drainage systems. Each fitting bears the registered NO HUB insignia, ensuring compliance with CISPI 301 or ASTM A888 standards. Recommended for use with shielded couplings as per CISPI 310 specifications.

Product Information

Standard Information

• Brand: Tyler Pipe
• Manufacturer: Tyler Pipe & Coupling
• Nominal Size: 6 inches

Technical Specifications

• Material: Cast Iron
• End Style: No-Hub
• Fitting/Connector Type: 1/4 Bend
• Bend Angle: 90 degrees
• Dimensions: 7 inches Center to End
• Specifications Met: ASTM A888, CISPI 301, ICC-ES PMG Listed, NSF Approved
• Manufacture Process: Cast
