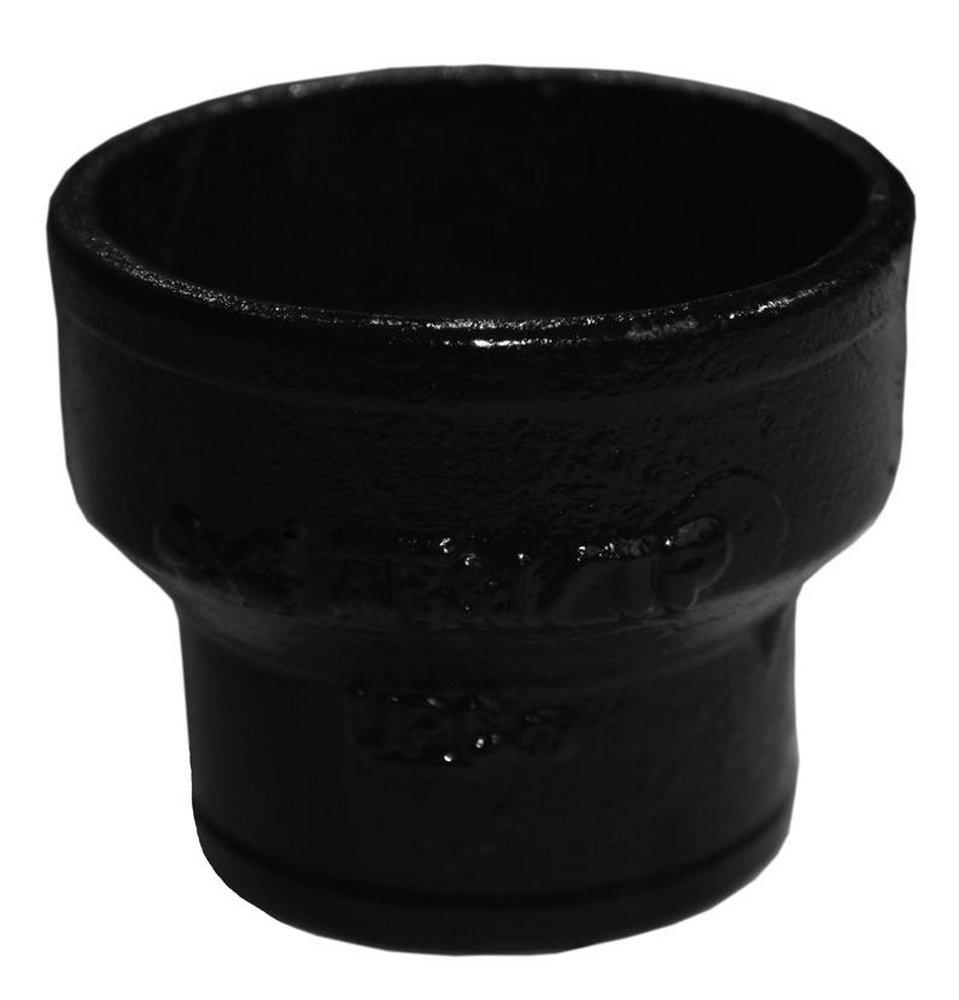

Tyler 377559 12x4 No-Hub Short Reducer

Product Description

The TYLER 377559 12X4 No-Hub Short Reducer is designed for use in soil, waste, vent lines, rainwater conductors, and storm drainage lines. It complies with Cast Iron Soil Pipe Institute Standards 301 or ASTM A888. Tyler Pipe Company recommends using shielded couplings manufactured in accordance with CISPI 310 for joining hubless cast iron pipe and fittings.

• Nominal size: 12 x 4 inches
• Constructed from cast iron
• Short reducer fitting/connector type

Product Highlights

This short pipe reducer is suitable for above and below grade soil, waste, and vent lines.

Product Information

Standard Information

• Brand: TYLER
• Manufacturer Part Number: 377559
• Country of Origin: Domestic

Technical Specifications

• End Style: No-Hub
• Fitting/Connector Type: Reducer
• Length: 6.5 In
• Material: Cast Iron
• Nominal Size: 12 x 4 In
• Temperature Rating: 212 deg F
• Type: Short
• Material Standard: ASTM A888
• Application: Drainage, Rainwater, Sanitary, Soil, Vent Lines, Waste
• End Connection 1: No Hub
• End Connection 2: No Hub
• Fitting Size 1: 12 in
• Fitting Size 2: 4 in
