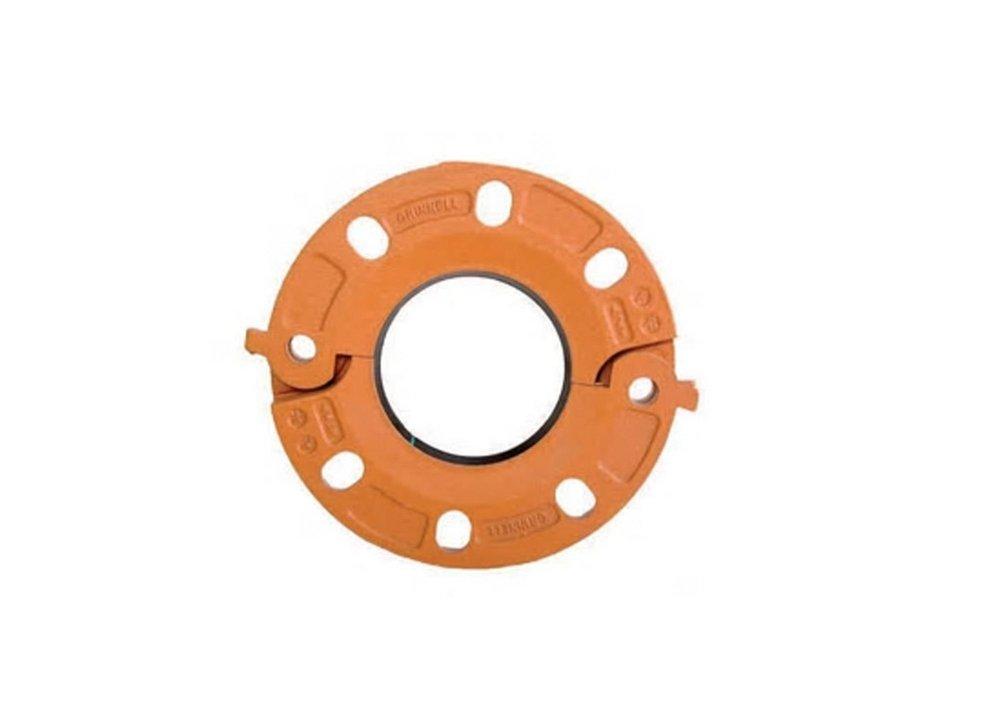

Tyco 7140S Figure 71 4 in. Grooved x Flanged 250 psi Painted Ductile Iron Adapter

Product Description

The TYCO 7140S Figure 71 adapter allows a direct transition from flanged components into a grooved piping system. Constructed from painted ductile iron with an EPDM gasket, this straight adapter is FM Approved and UL Listed. It is designed for a maximum pressure of 250 psi and can be used with ANSI Class 125 and 150 flanges.

• Allows direct transition from flanged to grooved piping
• Constructed from painted ductile iron
• FM Approved and UL Listed

Product Highlights

The TYCO 7140S adapter facilitates connections between grooved and flanged piping systems, ensuring secure and reliable performance.

Product Information

Standard Information

• Brand: TYCO
• Manufacturer Part Number: 7140S

Technical Specifications

• ANSI: ANSI Class 125, ANSI Class 150
• ASTM: ASTM A-536 Grade 65-45-12
• Coating: Painted
• Collection: Figure 71
• End Connection 1: Grooved
• End Connection 2: Flanged
• End Connections: Grooved x Flanged
• FM Approved: Yes
• Fitting Size 1: 4 in
• Fitting Size 2: 4 in
• Fitting Sizes: 4 in
• Fitting Type: Adapter, Straight
• Material: Ductile Iron, Rubber
• Material Type: EPDM
• Maximum Temperature: 230
• NSF Certified: No
• Pressure - Maximum: 250 psi
• UL Listed: Yes
• Brand: Tyco
• MPN: 7140S
