Product Description

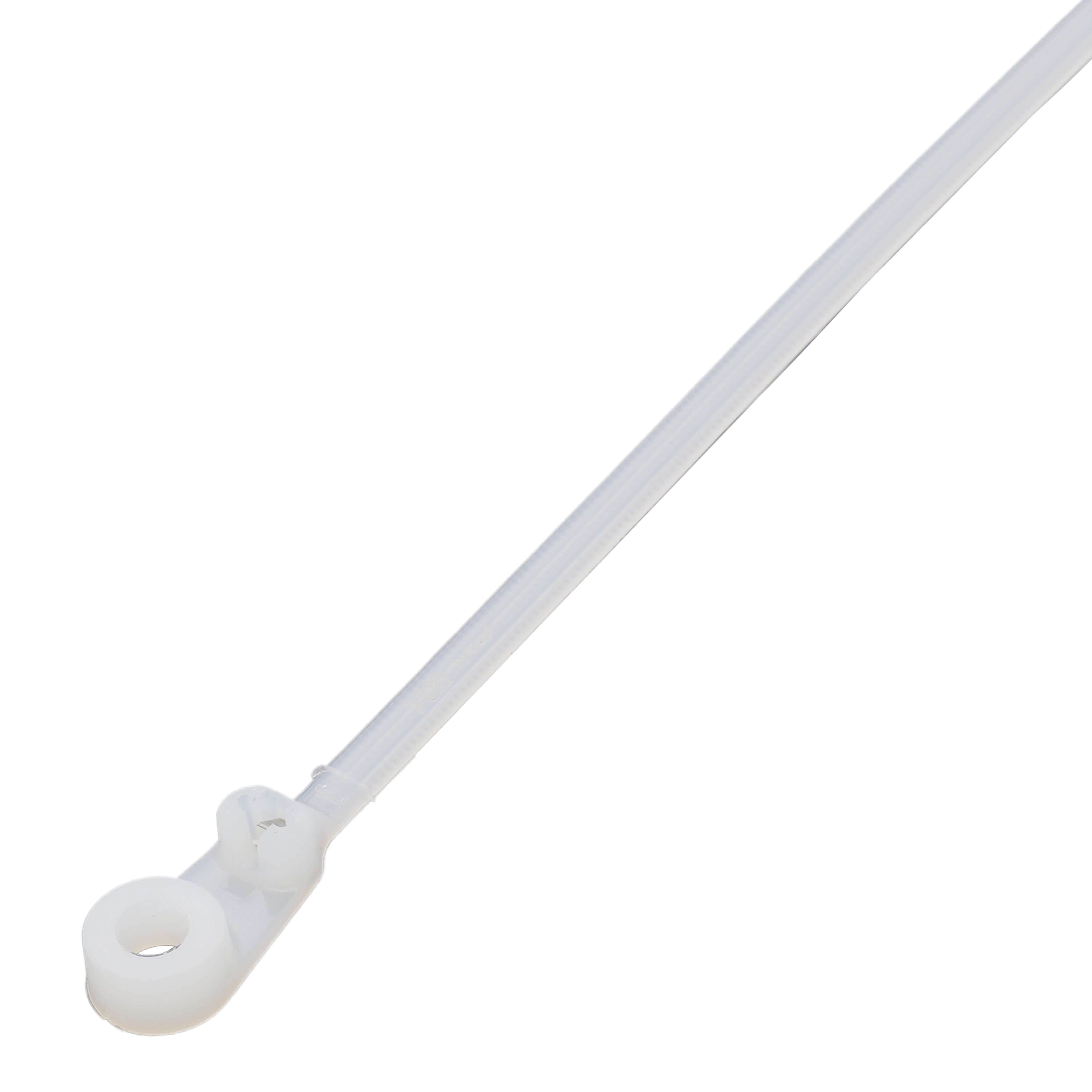

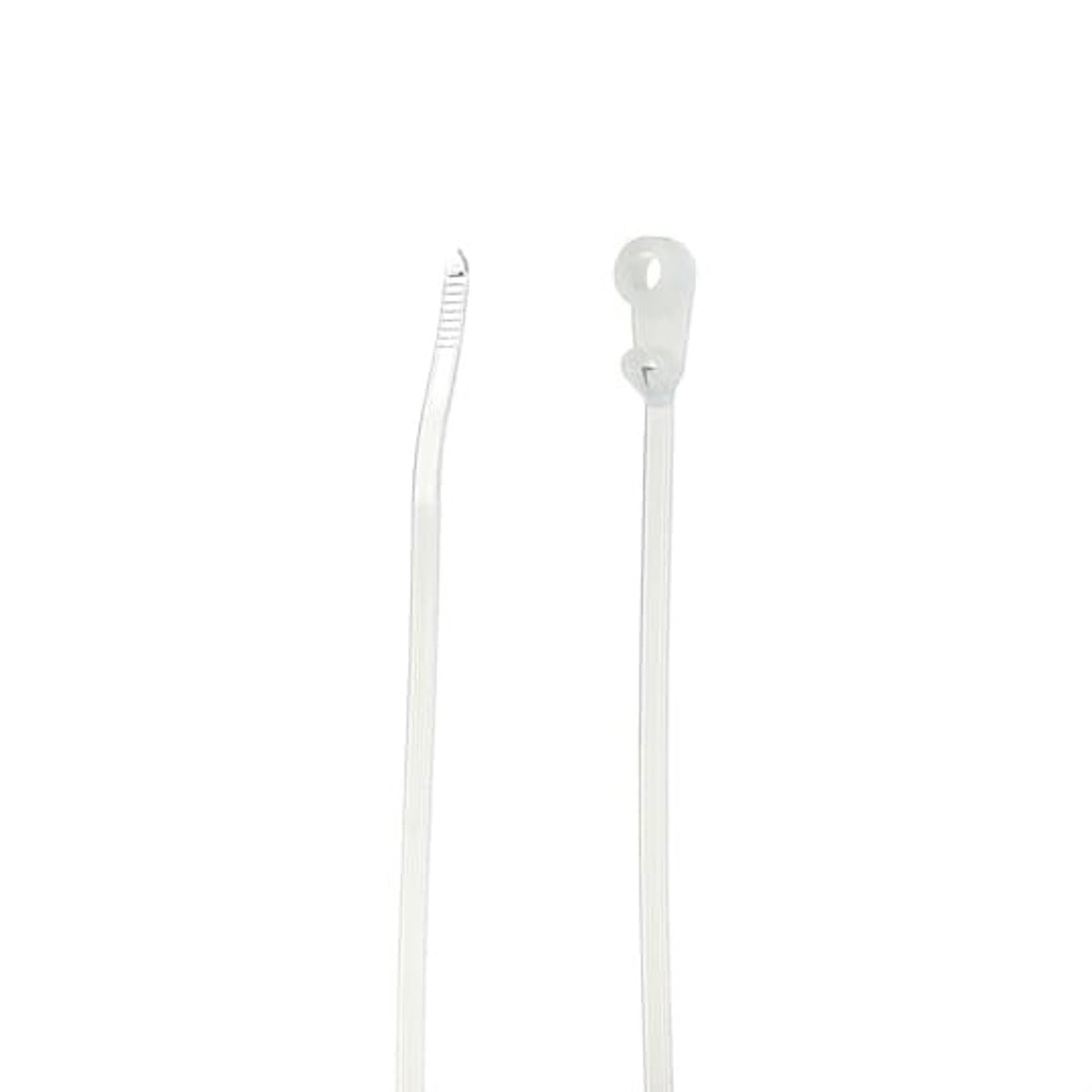

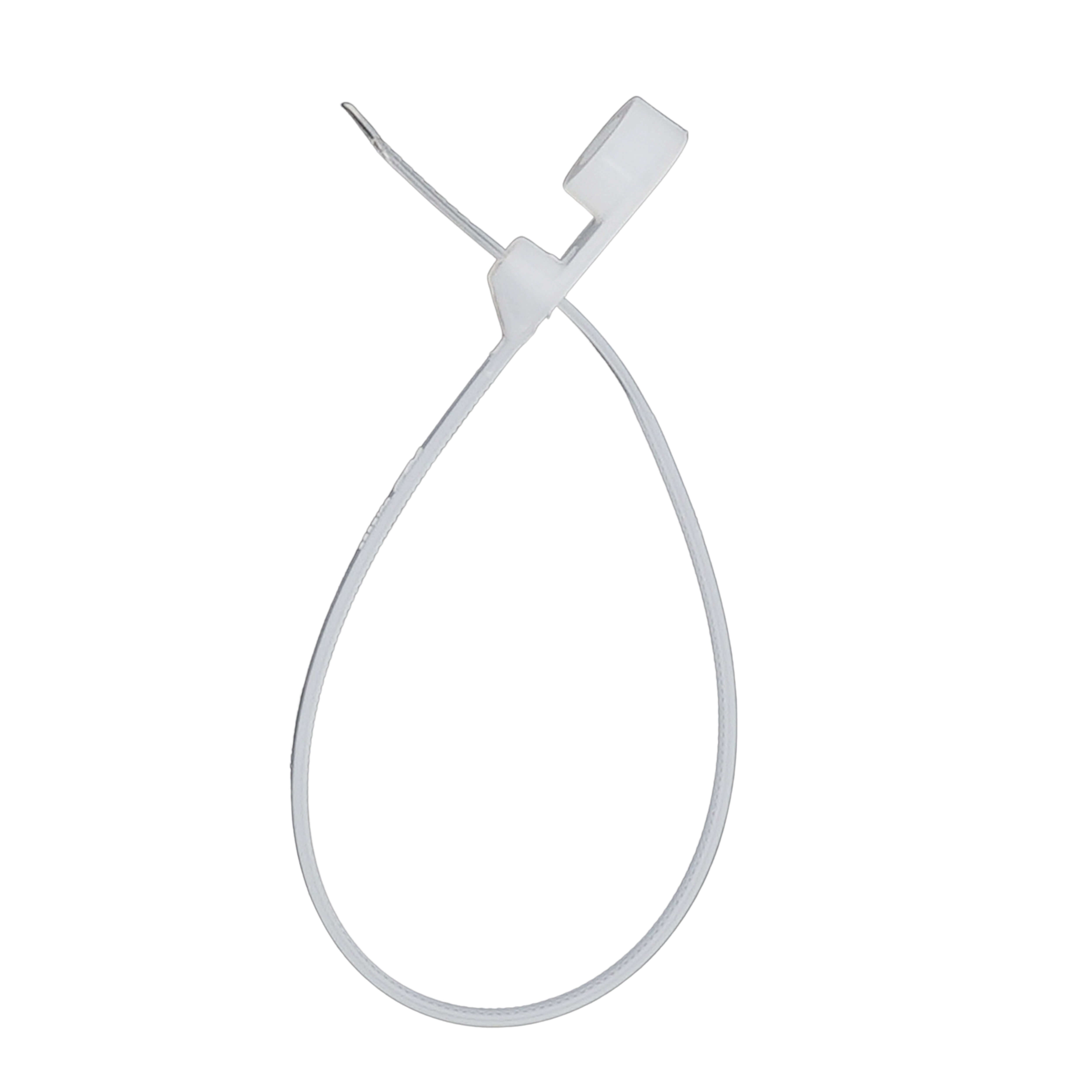

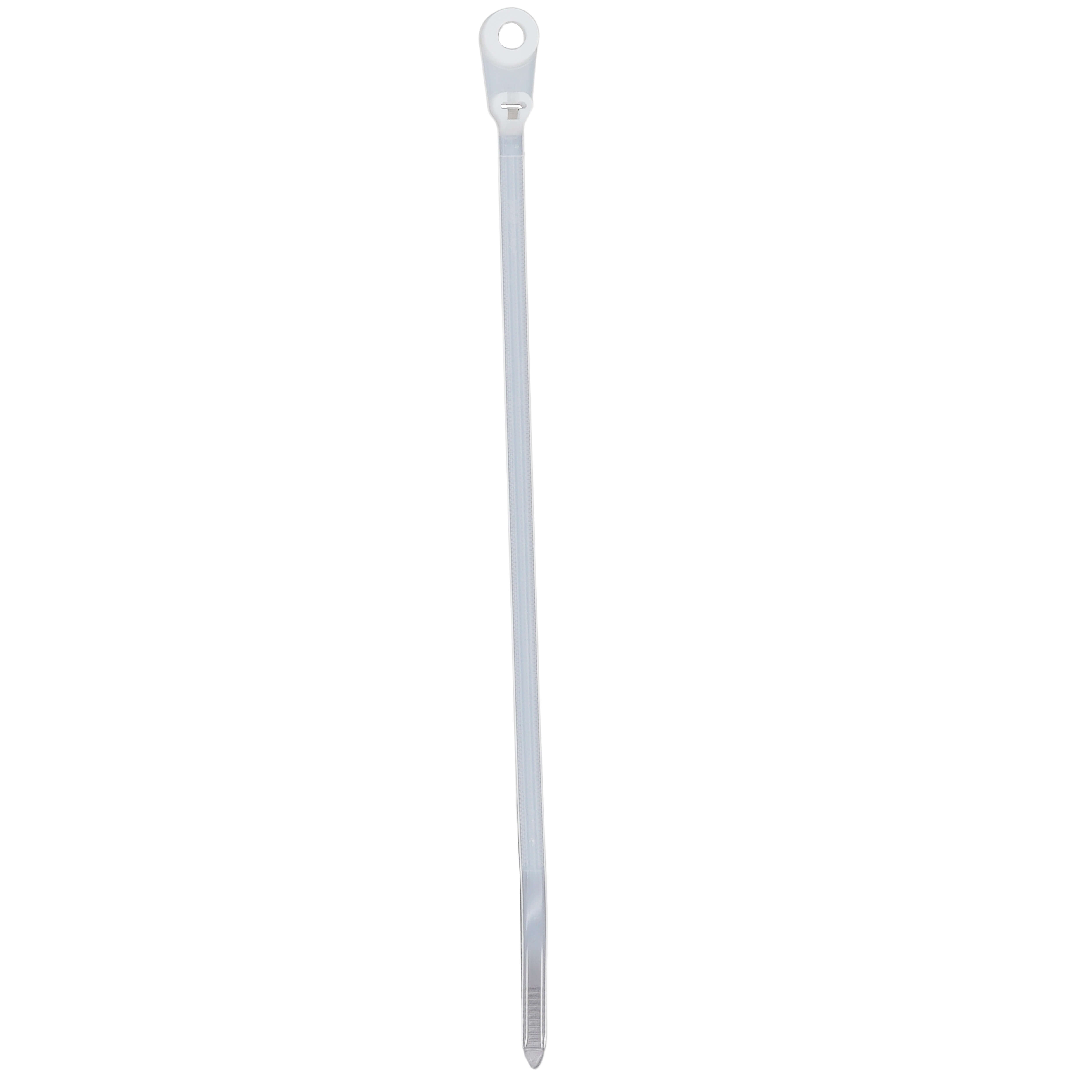

The TY-RAP TY534M integrated mounting hole cable tie is made of natural polyamide (Nylon 6.6) and suitable for indoor applications. It has a length of 6 inches, a width of 0.14 inch, and a thickness of 0.04 inches. The cable tie features a tensile strength rating of 40 pounds and is designed for use with a #8 screw for mounting.
- Integrated mounting hole
- Made of natural polyamide (nylon 6.6)
- Tensile strength rating of 40 pounds
Product Highlights
This cable tie features a low-profile head to prevent snags and a non-magnetic stainless steel locking device for maximum strength.
Product Information
Standard Information
-
Brand: TY-RAP
-
Manufacturer Part Number: TY534M
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: TY534M
-
Manufacturer: ABB - Installation Products
-
Brand: TY-RAP
-
Country of Origin: United States
-
Made in USA: Yes
-
Material: Nylon/Polyamide 6.6
-
Lock Mechanism: Stainless Steel Barb
-
Special Features: Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time
-
Standard: UL E49405
-
UPC: 786210807003
-
GTIN: 00786210807003
-
Item Type: Integrated Mounting Hole
-
Length: 6 in
-
Width: 0.14 in
-
Tensile Strength: 40 pounds
-
Thickness: 0.04 in
-
Operating Temperature: -40 to 185 Deg F
-
Mounting Hole Size: #8
-
Bundle Diameter: 1.125 Inch
-
UL Type: 21
-
Plenum Rated: Yes
-
Actual Length: 5.9 in
-
Cable Tie Duty: Intermediate
-
Indoor/Outdoor: Indoor
-
Mounting Style: Mounting Head
-
Nominal Length: 6 in.
-
Cable Tie Style: Mountable
-
Flame Retardant: No
-
Mounting Method: Screw Mount
-
Max. Bundle Dia.: 1.25"
-
Metal Detectable: No
-
Number of Straps: 1
-
Package Quantity: 100
-
Color - Cable Tie: Natural
-
Max. Temp. Rating: 185 Degrees F
-
Min. Temp. Rating: -76 Degrees F
-
Width - Cable Tie: 0.14"
-
Design - Cable Tie: Mountable
-
Length - Cable Tie: 6.00"
-
Mounting Hole Size - Cable Tie: #8
-
Cable Tie Properties: Halogen-Free, Plenum Rated
-
Screw Mount Hole Size: #8
-
Nominal Max. Bundle Dia.: 1 1/8 in
-
Basic Material - Cable Tie: Nylon
-
Tensile Strength - Cable Tie: 40 lb.
-
Approximate Length - Cable Tie: 6"
-
Cable Tie Material: Nylon 6.6 (Polyamide 6.6)
-
Cable Tie Colour: Natural
-
Cable Tie Length: 152.4mm
-
Cable Tie Width: 3.56mm
-
Cable Bundle Diameter Max: 28.7mm
-
Minimum Loop Tensile Strength: 40lb
-
Cable Tie Type: Mounting Hole
-
Product Range: Ty-Rap Series
-
SVHC: No SVHC (15-Jan-2018)
-
Temperature Rating: 185 deg F
-
Features: Cable Tie, Mountable, Actual Length 5.9 in, Width 0.14 in, Nominal Length 6 in, Locking Style Stainless Steel Barb, Color Natural, Basic Material - Cable Tie Nylon, Tensile Strength 40 lb, Halogen-Free, Plenum Rated, Intermediate, Mounting Method Screw Mount, Nominal Max. Bundle Dia. 1 1/8 in, Temp. Range -40 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use No, Plenum Rated Yes, Screw Mount Hole Size #8, UL Type 21, Thickness 0.05 in
-
Color Family: Natural
-
Operation temperature: -40-+185 °F
-
Model: Internal toothing
-
Band closure: Steel nose
-
Material quality: Polyamide (PA)
-
Surface protection: Untreated
-
UV-stable acc. ASTM D6779: N
-
Halogen free: Y
-
Transparent: N
-
Reflective (fluorescent): N
-
Text strip: None
-
Solvable fastener: N
-
Type of fastening: Screw hole
-
VG approval: N
-
MIL approval: N
-
UL approval: N
