Product Description

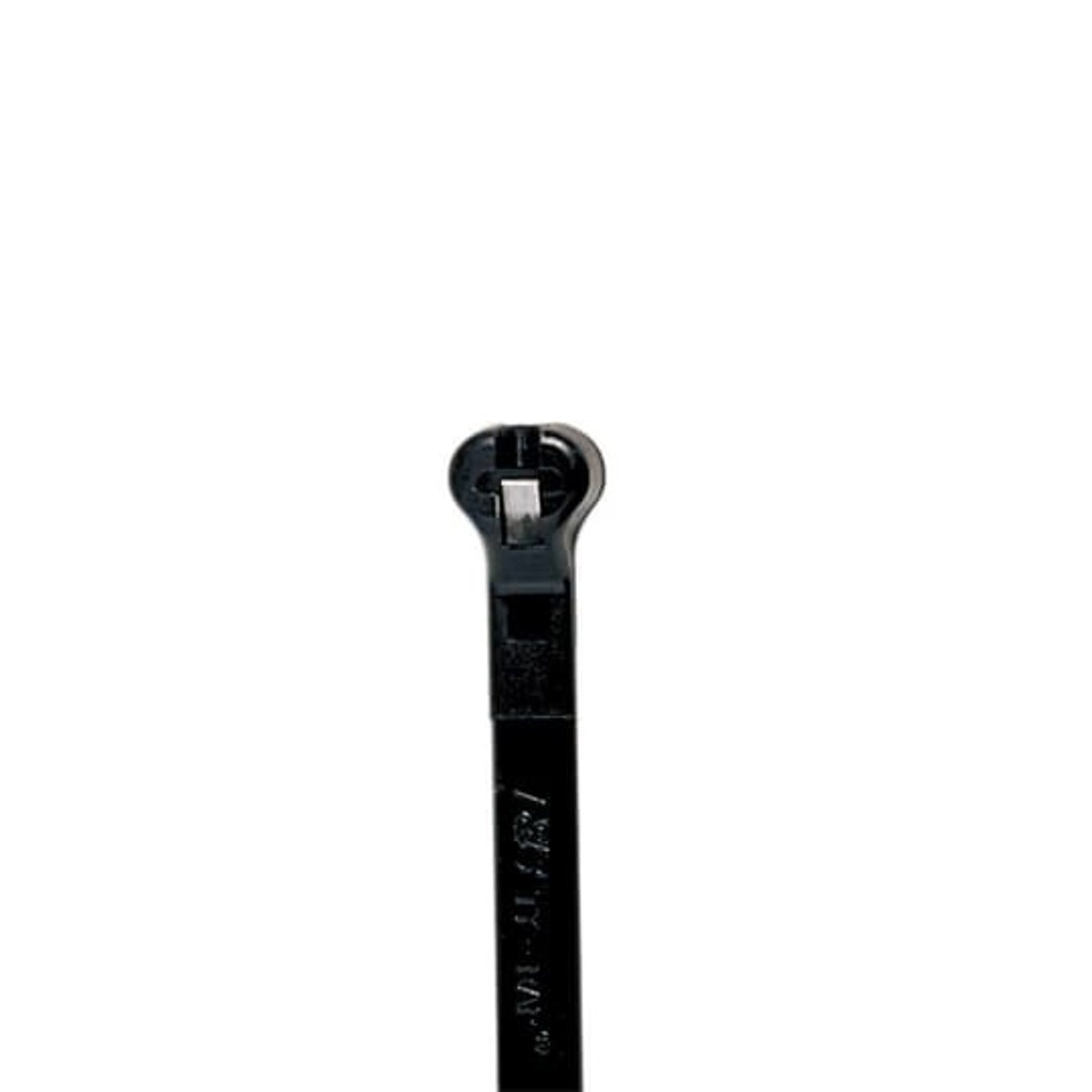

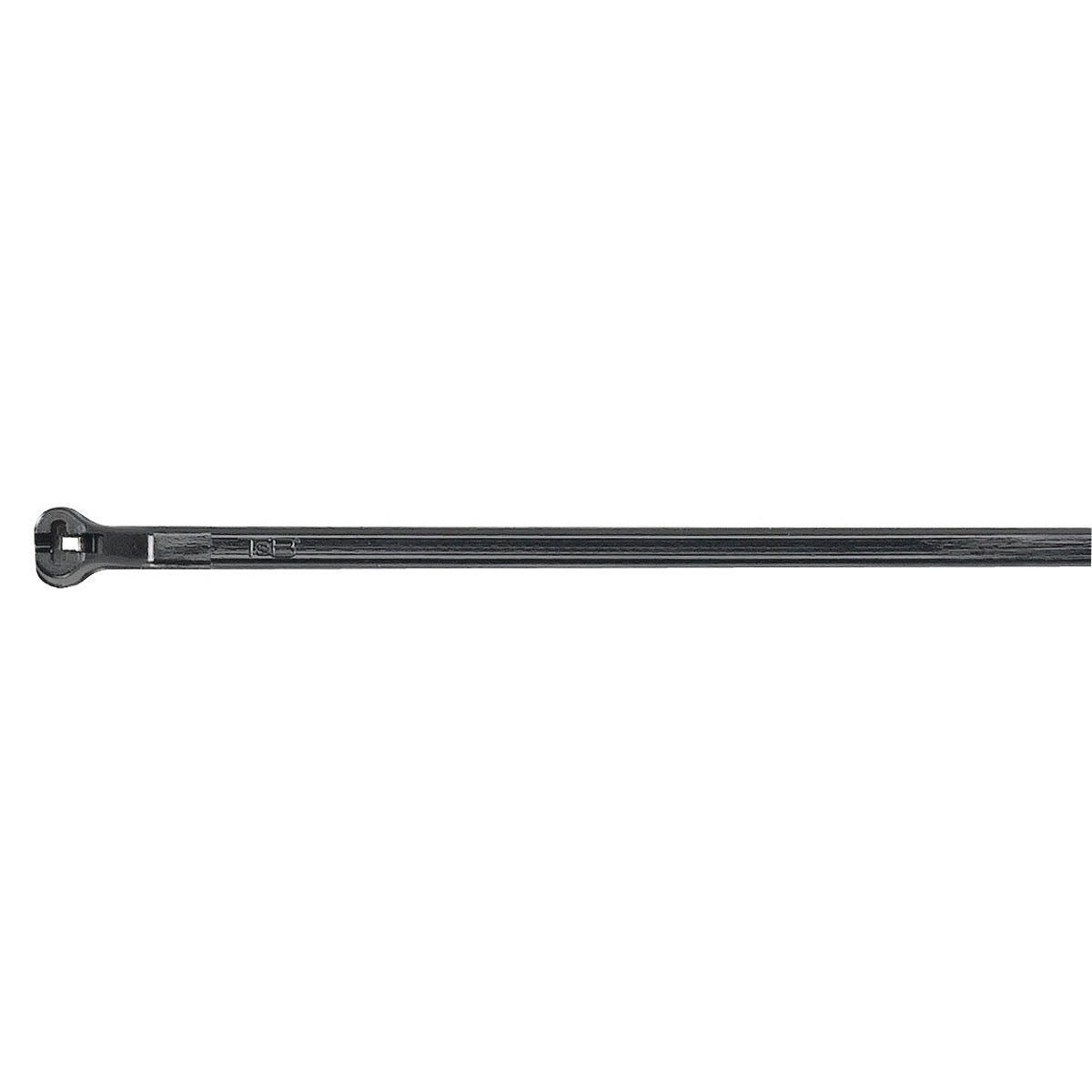

The TY-RAP TY528MX cable tie is a 2-piece high-performance standard tie with a length of 14.2 inches, a width of 0.19 inches, and a thickness of 0.055 inches. Constructed from Nylon/Polyamide 6.6, it features a stainless steel barb lock mechanism and a tensile strength of 50 lb. Suitable for bundling diameters from 0.138 to 4.01 inches.
- Low profile head prevents snags on uneven surfaces.
- Non-magnetic stainless steel locking device ensures maximum strength.
- Weather and UV-resistant for indoor and outdoor use.
Product Highlights
The TY-RAP TY528MX cable tie offers a reliable fastening solution with its durable construction and innovative design, ensuring superior performance in various applications.
Product Information
Standard Information
-
Brand: TY-RAP
-
Manufacturer Part Number: TY528MX
-
Country of Origin: United States
Technical Specifications
-
Type: 2-Piece High Performance Standard
-
Width: 0.19 in
-
Length: 14.2 in
-
Thickness: 0.055 in
-
Manufacturer: ABB - Installation Products
-
Lock Mechanism: Stainless Steel Barb
-
Bundle Diameter: 0.138 to 4.01 in
-
Tensile Strength: 50 lb
-
Temperature Rating: 220 deg F
-
Material: Nylon/Polyamide 6.6
-
Country of Origin: United States
-
Made in USA: Yes
-
Item Type: High Performance
-
Approval: UL, CSA
-
Clip Material: Stainless Steel
-
Application: Indoor/Outdoor Applications
-
Mfg Standards/Approvals: Military Specification MS3367-2-0|UL Listed|CSA 62275 Type 2/21S
-
Cable Tie: Cable Tie
-
Resists: Weather and UV
-
UL Type: 21S
-
Standards: UL Listed
-
Tool Code: A/B
-
Outdoor Use: Yes
-
Temp. Range: -40 Degrees to 185 Degrees F
-
Plenum Rated: Yes
-
Actual Length: 14.2 in
-
Basic Material: Nylon
-
Cable Tie Duty: Standard
-
Indoor/Outdoor: Indoor, Outdoor
-
Nominal Length: 14 1/2 in
-
Cable Tie Style: Standard
-
Flame Retardant: No
-
Max. Bundle Dia.: 4.00"
-
Metal Detectable: No
-
Number of Straps: 1.0
-
Package Quantity: 100
-
Tensile Strength - Cable Tie: 50 lb.
-
Approximate Length - Cable Tie: 14"
-
Duty Rating: Standard
-
Color Family: Black
-
Standard & Approvals: Mil Spec MS3367-2-0, UL/EN/CSA62275 Type 2/21S Rated, RoHS Compliant
