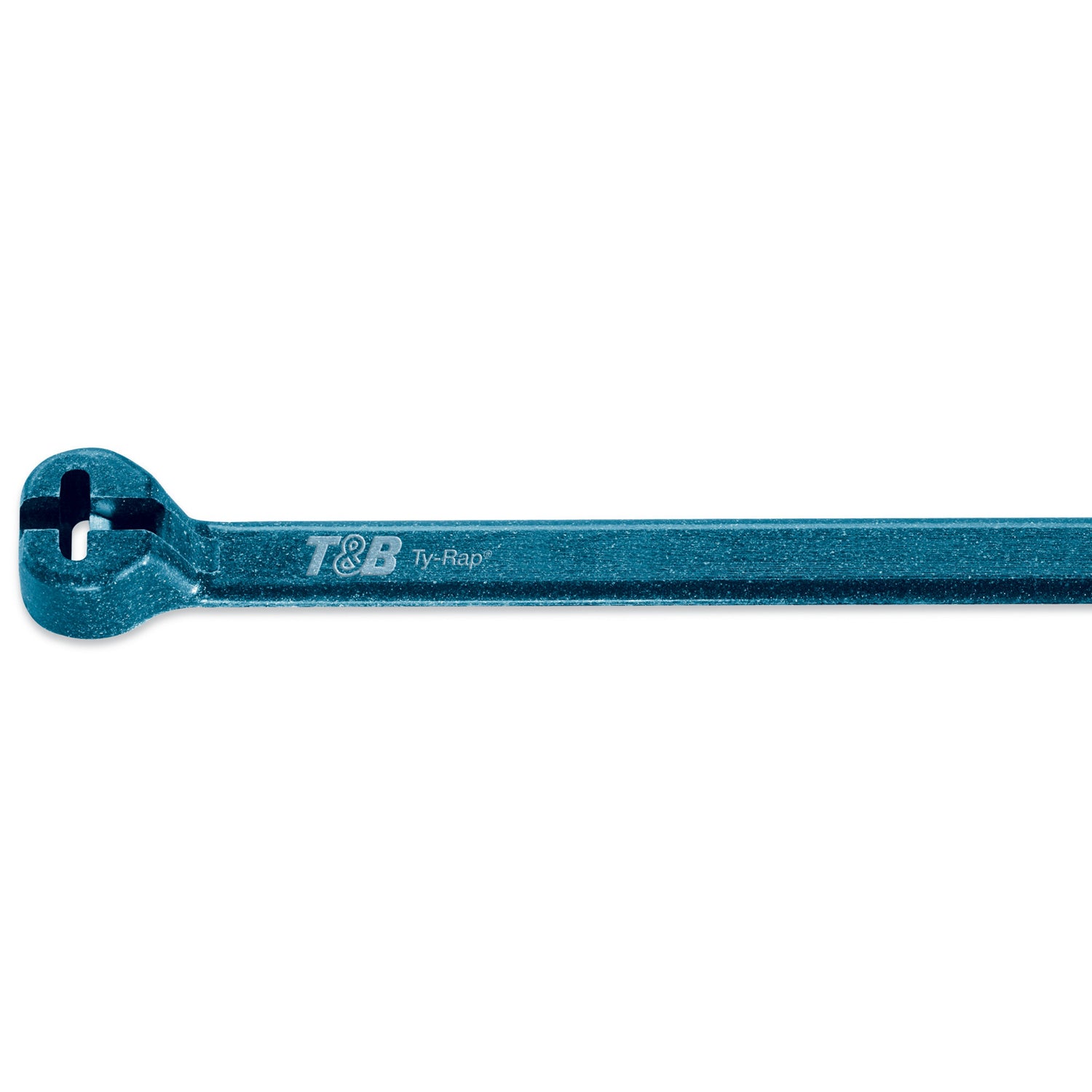

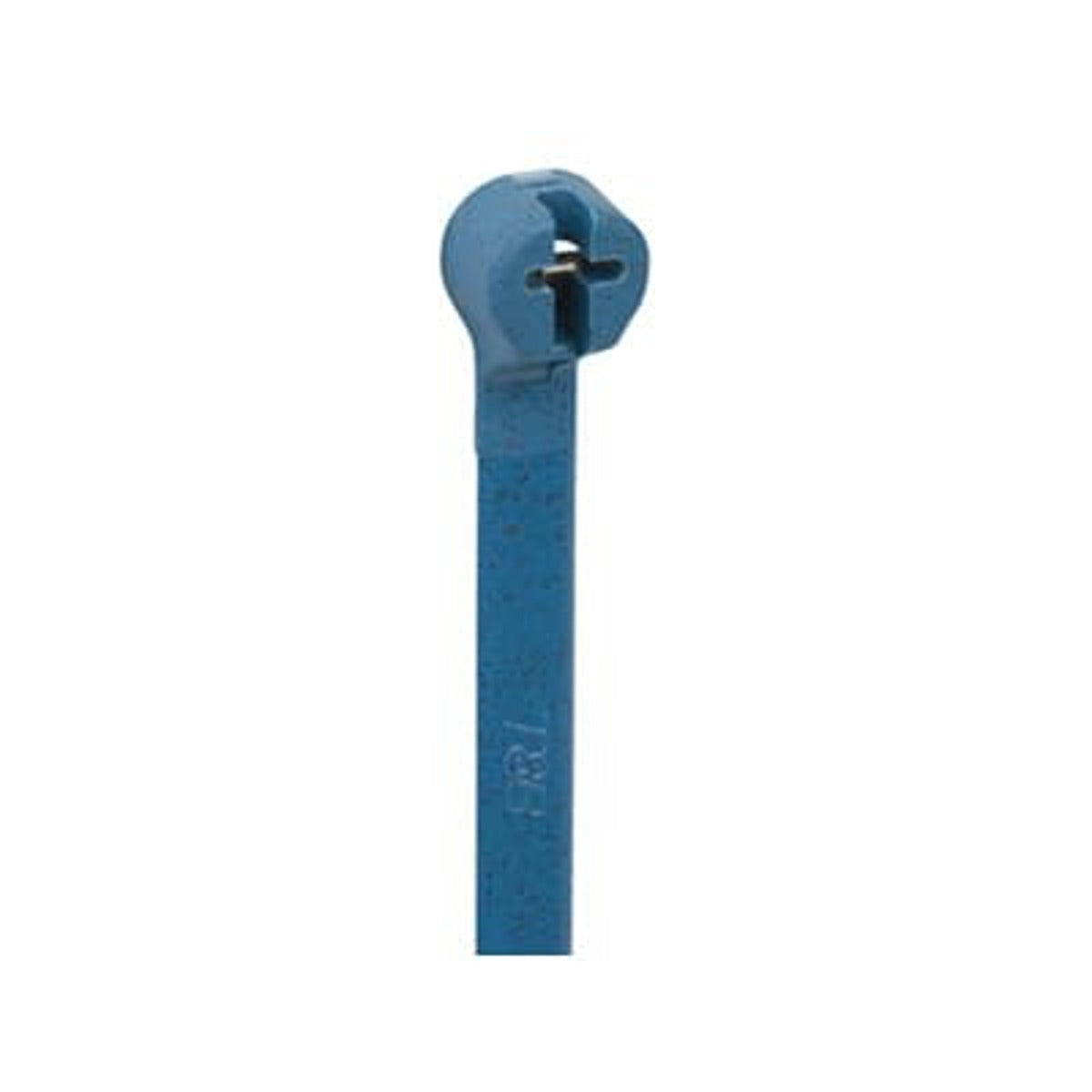

The TY-RAP TY525M-NDT detectable cable tie is constructed from bright blue polyamide (Nylon 6.6). This cable tie is suitable for temperatures up to 85 Degrees Celsius (185 F). It has a length of 186mm (7.31 Inches), a width of 4.70mm (0.19 Inch), and a tensile strength rating of 222 Newtons (50 Pounds).
Detectable by metal detectors
Detectable by X-ray equipment
Visual detection
Stainless steel barb lock mechanism
Product Highlights
This cable tie features a stainless steel locking device and is suitable for indoor applications.
Product Information
Standard Information
Brand: TY-RAP
Manufacturer Part Number: TY525M-NDT
Country of Origin: United States
Technical Specifications
Catalog Number
TY525M-NDT
Manufacturer
ABB - Installation Products
Brand
TY-RAP
Country of Origin
United States
Made in USA
Yes
Lock Mechanism
Stainless Steel Barb
Material
Nylon/Polyamide 6.6
Special Features
Detectable by metal detectors, X-ray equipment, or visual detection
UPC
786210995335
GTIN
00786210995335
Item Type
Detectable
Length
7.2 in
Width
0.18 in
Tensile Strength
50 lb
Thickness
0.047 in
Type
1-Piece, Locking
Clip Material
Stainless Steel
Bundle Diameter
0.138 - 1.77 in
Temperature Rating
-40 to 185 Deg F
Design
Standard
Standards
UL 94V-2
Tool Code
B
Outdoor Use
No
Plenum Rated
No
Actual Length
7.3 in
Basic Material
Nylon
Cable Tie Duty
Standard
Indoor/Outdoor
Indoor
Nominal Length
7 1/2 in
Cable Tie Style
Standard
Flame Retardant
No
Max. Bundle Dia.
1.75"
Metal Detectable
Yes
Number of Straps
1.0
Package Quantity
100
Color
Blue
Max. Temp. Rating
185 Degrees F
Min. Temp. Rating
-40 Degrees F
Cable Tie Properties
Halogen-Free, Metal Detectable, UV Light Resistant
