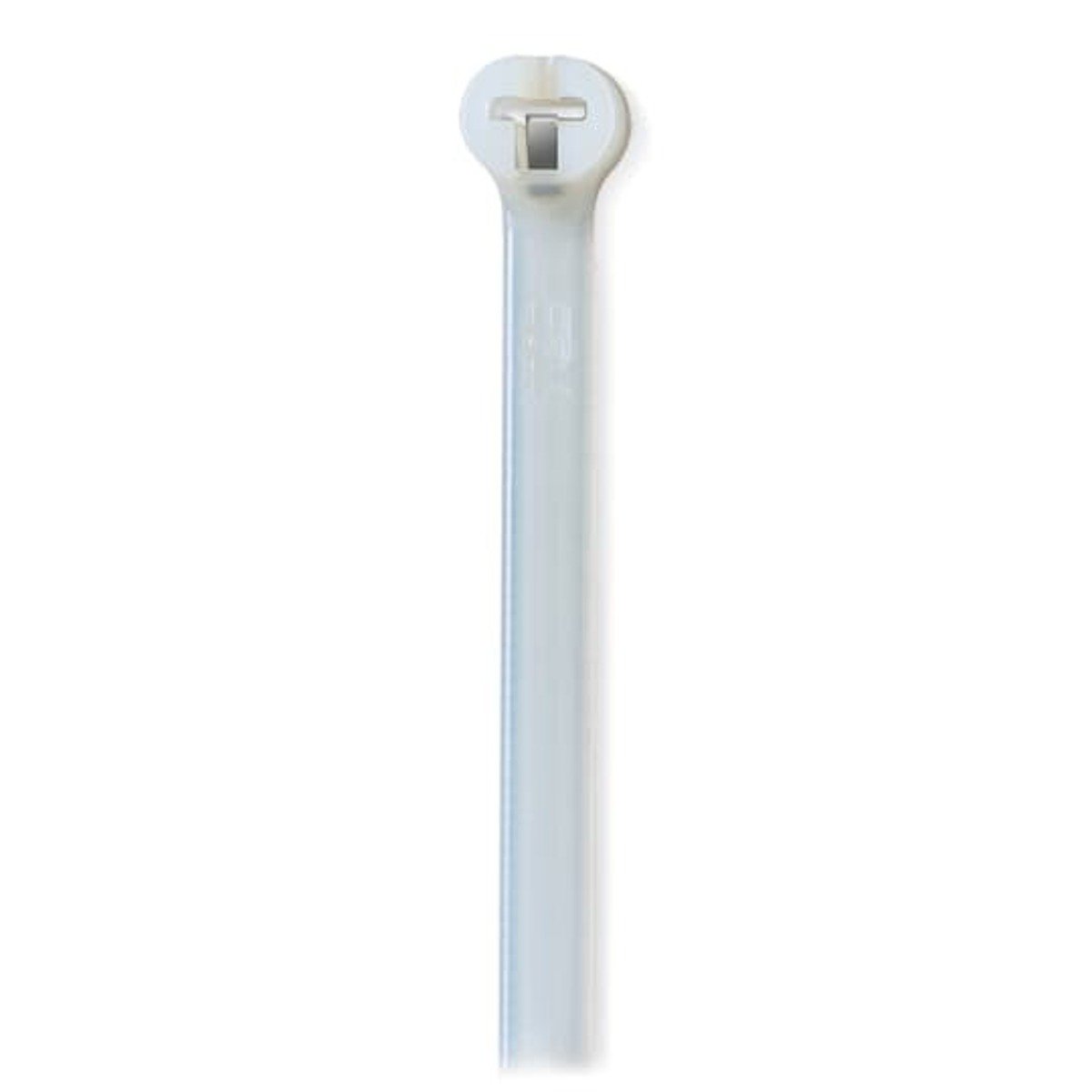

Ty-Rap TY523M cable tie 3.62in 18lb

Product Description

The TY-RAP TY523M cable tie is a 2-piece high-performance standard tie. Measuring 3.62 inches in length and 0.09 inches in width, it features a stainless steel barb locking mechanism. Constructed from nylon/polyamide 6.6, this tie offers a tensile strength of 18 lb and is suitable for temperatures up to 185 deg F.

• Low profile head prevents snags on uneven surfaces.
• Stainless steel locking device ensures maximum strength.
• Smooth, notchless body reduces stress concentration points.

Product Highlights

Ideal for fastening applications where performance matters, providing a secure and reliable solution.

Product Information

Standard Information

• Brand: TY-RAP
• Manufacturer Part Number: TY523M
• Country of Origin: United States

Technical Specifications

• Type: 2-Piece High Performance Standard
• Width: 0.09 in
• Length: 3.6 in
• Thickness: 0.04 in
• Manufacturer: ABB - Installation Products
• Lock Mechanism: Stainless Steel Barb
• Bundle Diameter: 0.06 to 0.63 in
• Tensile Strength: 18 lb
• Temperature Rating: 185 deg F
• Material: Nylon/Polyamide 6.6
• Country of Origin: United States
• Made in USA: Yes
• Standard: UL E49405
• UPC: 786210805078
• GTIN: 00786210805078
• Item Type: High Performance
• Approval: UL, CSA
• Clip Material: Stainless Steel
• Finish: Natural
• Application: Indoor Applications
• Mfg Standards/Approvals: UL File No. E49405|CSA File No. 62275 Type 2/21S|EN Certified|Military Specification MS3367-4-9
• Duty Rating: Miniature
• Color Family: Natural
• Nominal Length: 3.62 in.
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
