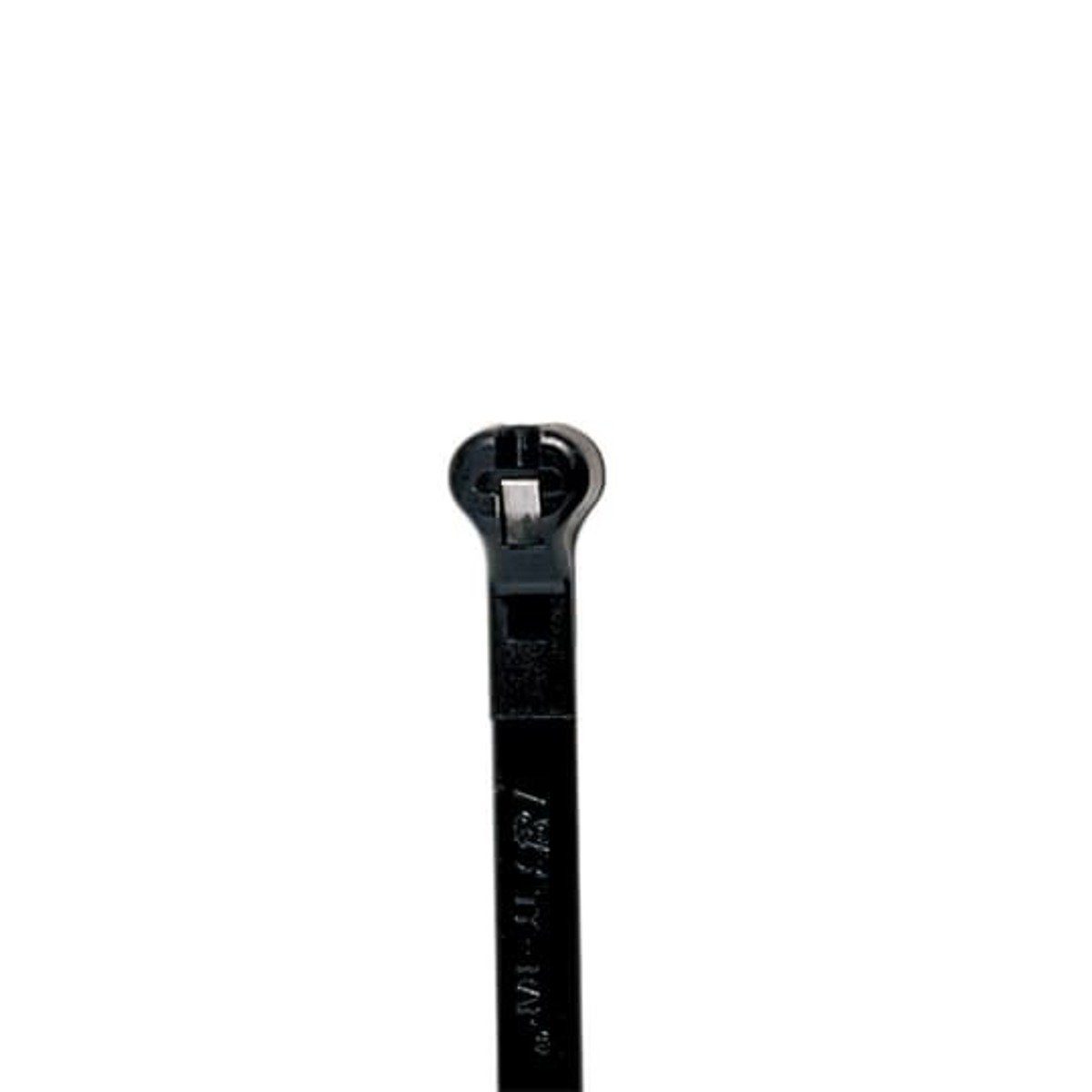

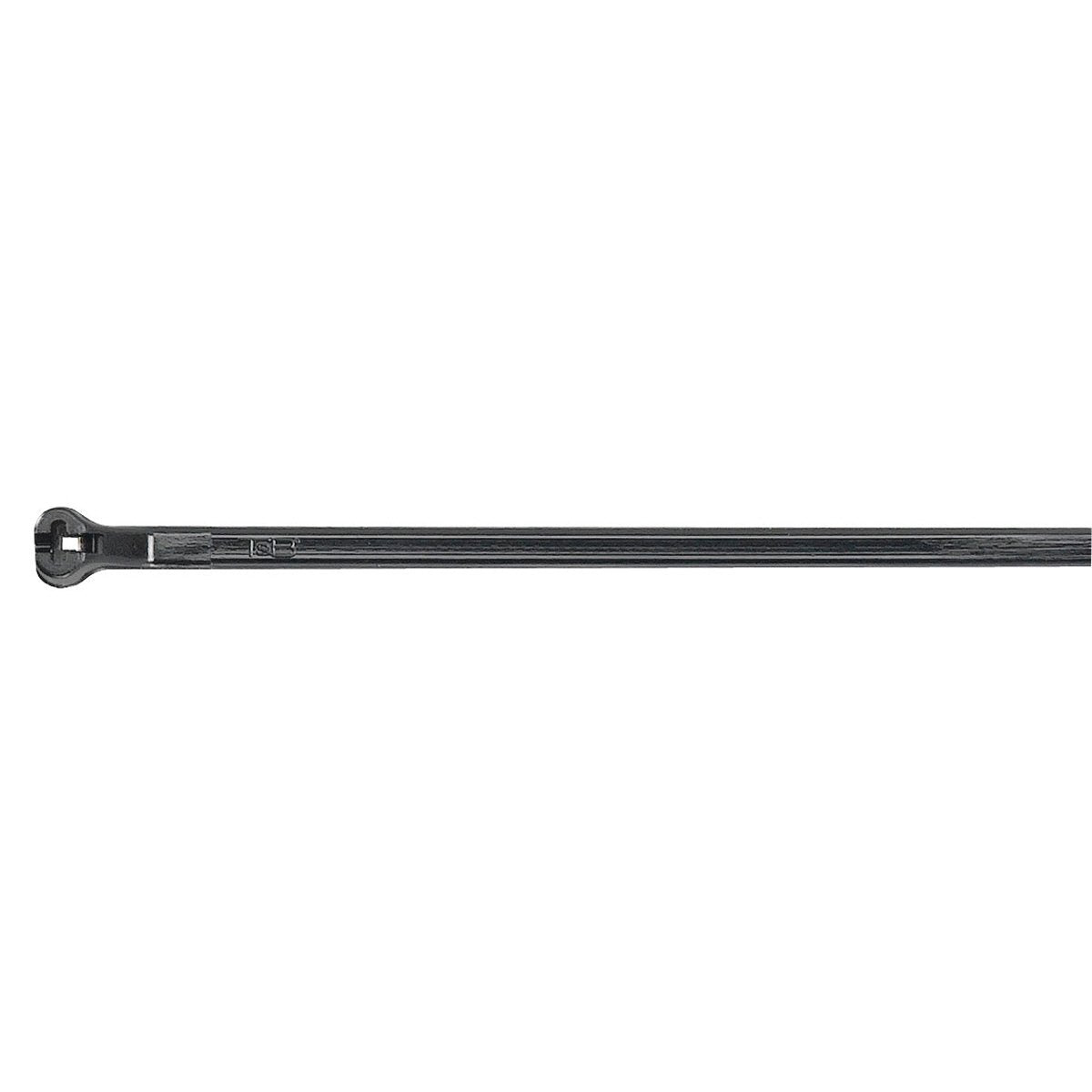

Ty-Rap TY5232MX Cable Tie 18 lb 8 in 100 Pack

Product Description

The TY-RAP TY5232MX cable tie is constructed from black polyamide (Nylon 6.6) and is suitable for temperatures up to 105 degrees Celsius (221 F). Weather and ultraviolet resistant, it is designed for indoor and outdoor applications. UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum. The low profile head prevents snags on uneven surfaces.

• Weather and Ultraviolet Resistant for Indoor and Outdoor Applications
• UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum
• Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads

Product Highlights

This cable tie features a non-magnetic stainless steel locking device that ensures maximum strength and the right tightness every time.

Product Information

Standard Information

• Brand: TY-RAP
• Manufacturer Part Number: TY5232MX
• Country of Origin: United States

Technical Specifications

• Catalog Number: TY5232MX
• Manufacturer: ABB - Installation Products
• Brand: TY-RAP
• Country of Origin: United States
• Made in USA: Yes
• Lock Mechanism: Stainless Steel Barb
• Material: Nylon/Polyamide 6.6
• Special Features: Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time
• UPC: 786210839370
• GTIN: 00786210839370
• Item Type: High Performance
• Length: 8 in , 202 mm
• Width: 0.09 in , 2.3 mm
• Tensile Strength: 18 pounds , 80 newtons
• Thickness: 0.04 in , 1 mm
• Type: 1-Piece, Locking
• Clip Material: Stainless Steel
• Bundle Diameter: 2 Inch
• Approval: UL, CSA
• Temperature Rating: -40 to 185 Deg F
• Finish: Natural
• Size: 8"
• Product Type: Tie
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Holding Force: 80 N
• Package Quantity: 100
• Series: TY232 Series
• Nominal Length (inches): 8
• Max. Wire Bundle Diameter (inches): 2
• Flammability Rating: UL 94 V-2
• Packaging: 100/Pack
