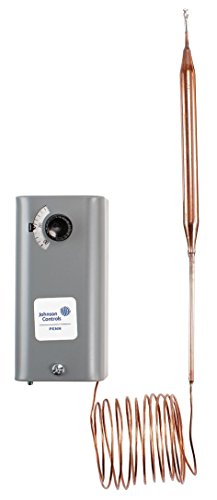

Johnson Controls A28AA-36C Line Volt Mechanical Thermostat 24 to 277 VAC 16 Amp

Product Description

The Johnson Controls A28AA-36C is a line voltage mechanical thermostat. It operates efficiently within a voltage range of twenty-four to two hundred seventy-seven volts alternating current and supports full load amps. This thermostat is designed for heating and cooling applications, featuring two stage control capabilities.

• Voltage Range: 24 to 277 VAC
• Full Load Amps at 120 VAC: 16 Amps
• Temperature Control Range: 40 to 90 Degrees F

Product Highlights

This thermostat features remote sensing capability and is designed for use in various HVAC equipment, providing reliable temperature control.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: A28AA-36C

Technical Specifications

• Switch Type: SPDT
• Height: 4.375 inches
• Width: 2.125 inches
• Depth: 1.8125 inches
• Temperature Sensitivity: +/- 2 Degrees F
• Capillary Length: 6 feet
• Differential: 2 to 7 Degrees F
• Remote Sensing Bulb: Included
