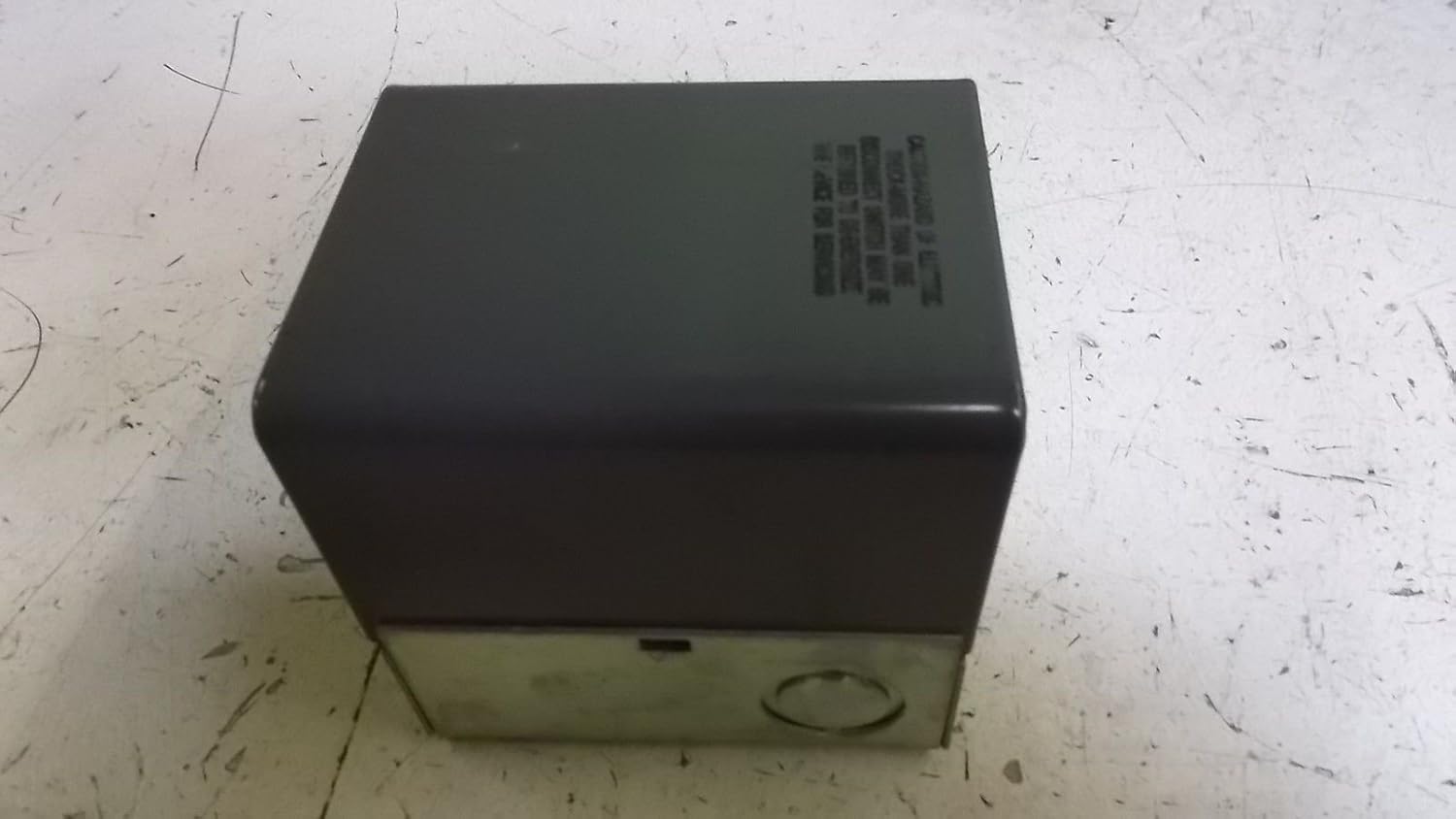

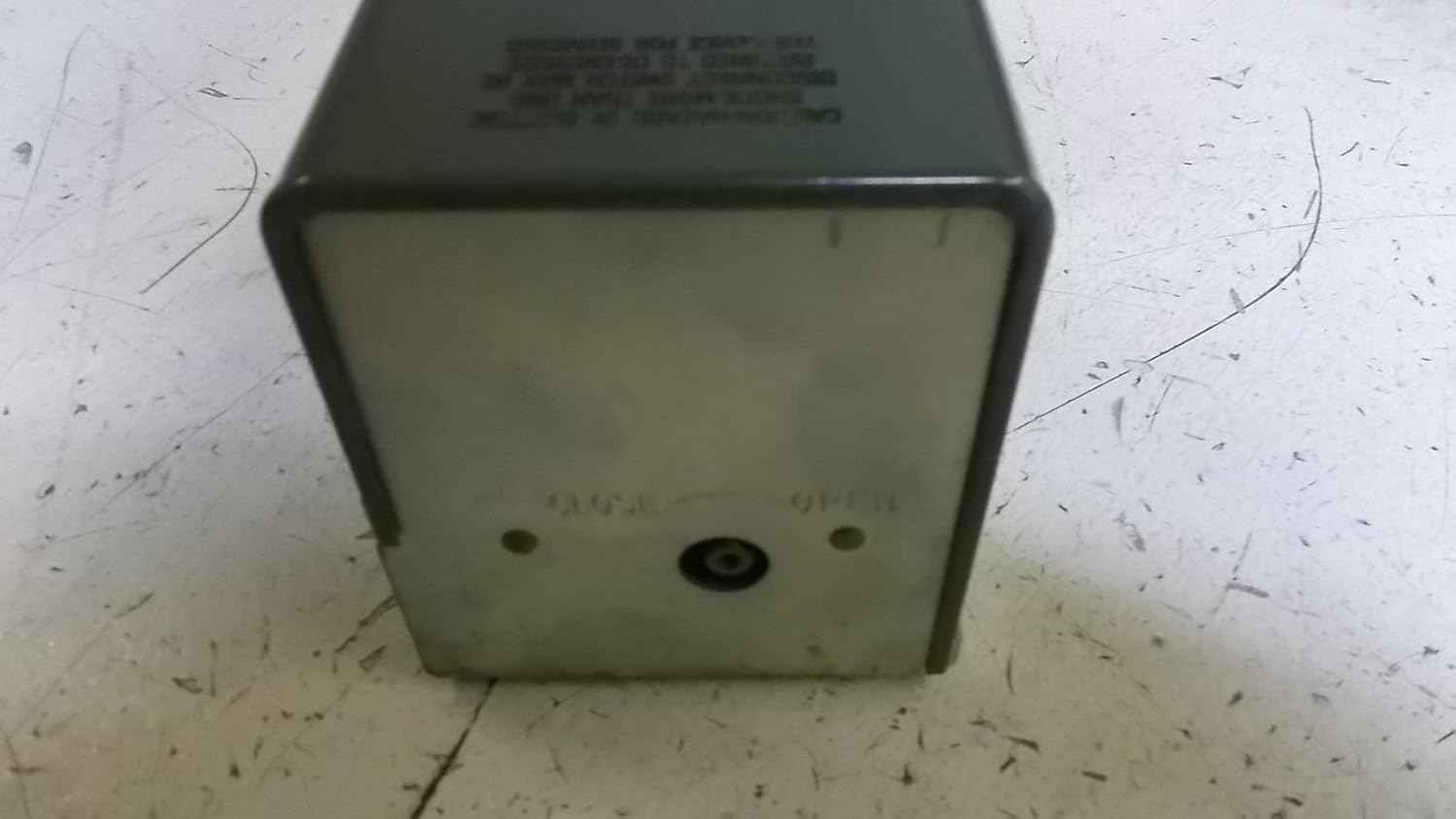

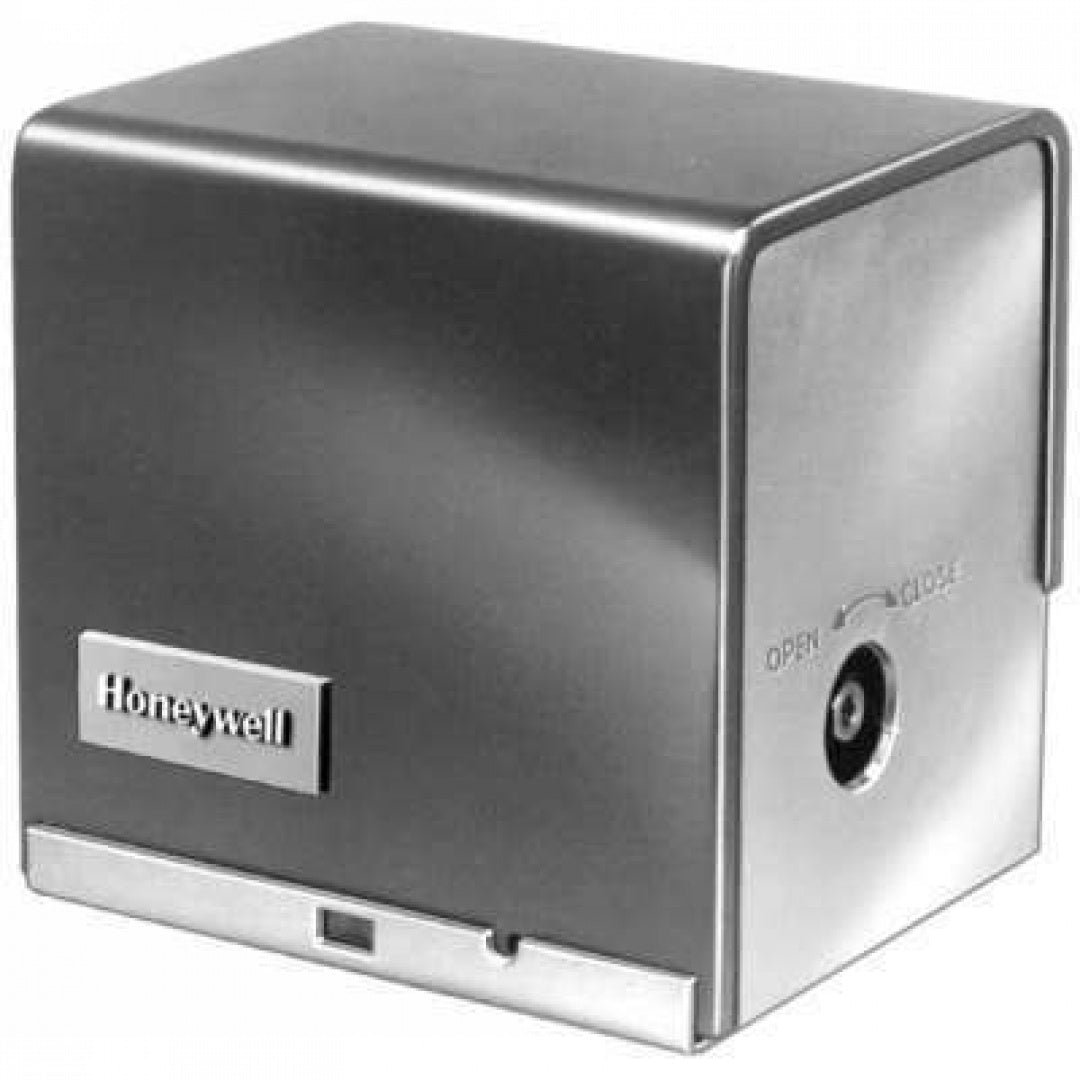

Honeywell M436A1116 Damper Motor Two Position SPST 120 Vac 20 lb. Torque

Product Description

The Honeywell M436A1116 Damper Motor, Two Position, SPST, 120 Vac, 20 lb. Torque, is designed for robust performance in HVAC systems. This spring return motor is ideal for managing outdoor air dampers in residential and light commercial settings.

• Ideal for combustion and makeup air dampers
• Supports heating and cooling system changeover dampers
• Includes an internal SPDT switch for auxiliary control

Product Highlights

This motor helps control outdoor air dampers, allows for heating/cooling transitions, and supports ventilation needs. It features a spring return for power failure recovery, a thermal breaker for overload protection, and is foot-mounted for ease of installation.

Product Information

Standard Information

• Brand: Honeywell
• Model: M436A

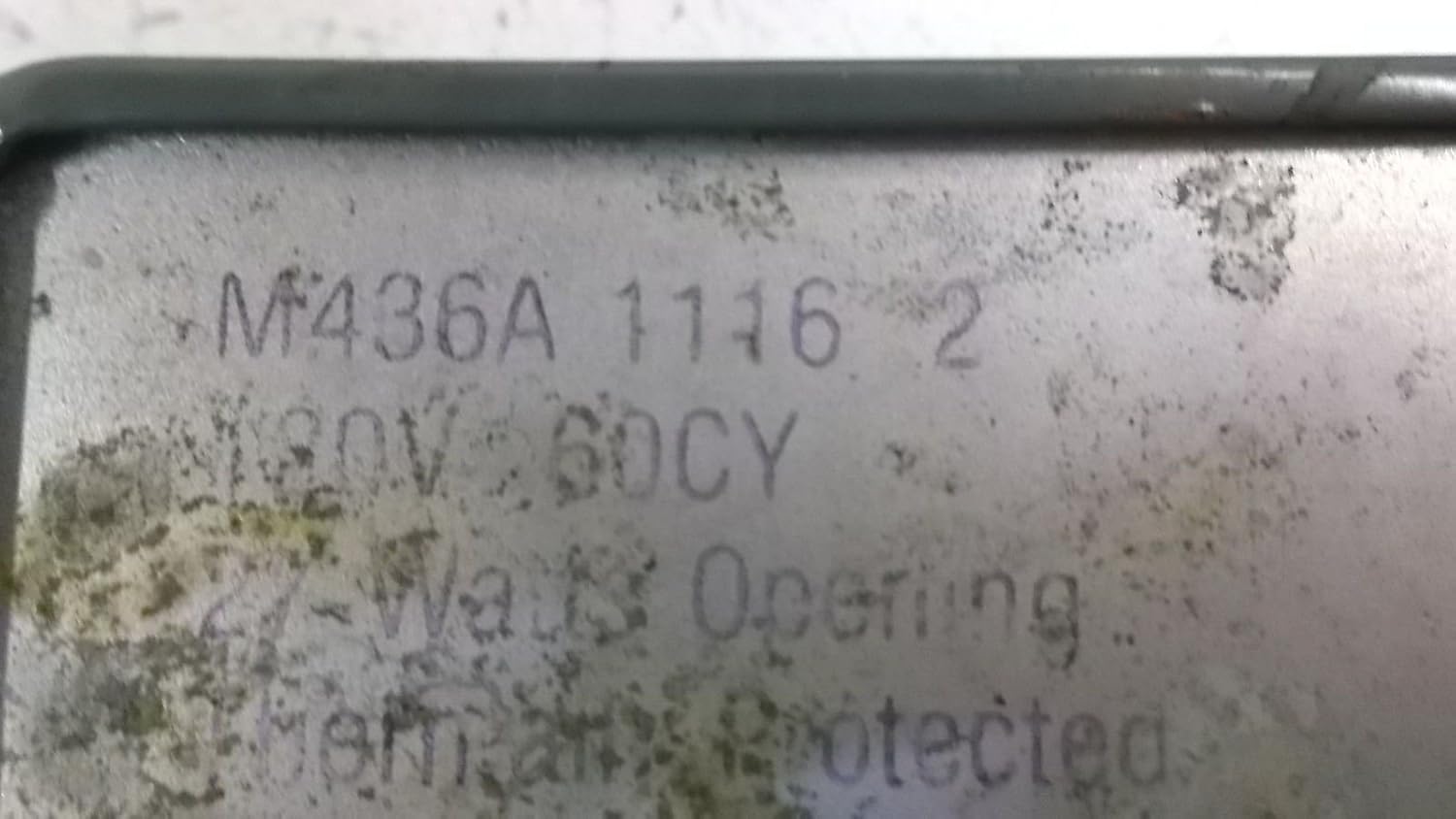

• MPN: M436A1116

Technical Specifications

• Voltage: 120 Vac
• Torque Rating: 20 lb-in
• Height: 4.5 inches
• Width: 4.625 inches
• Depth: 3.75 inches
• Power: 28W Opening, 8.5W Holding
• Include: Internal SPDT switch
• Fail Safe Mode: Spring Return
• Control Signal: Two position, SPST
• Mount: Foot-mounted
• Operating Temperature: 32°F to 125°F
• Electrical Connections: Screw terminals
• Timing: 25 sec Spring Return, 30 sec Nominal @ 60 Hz
