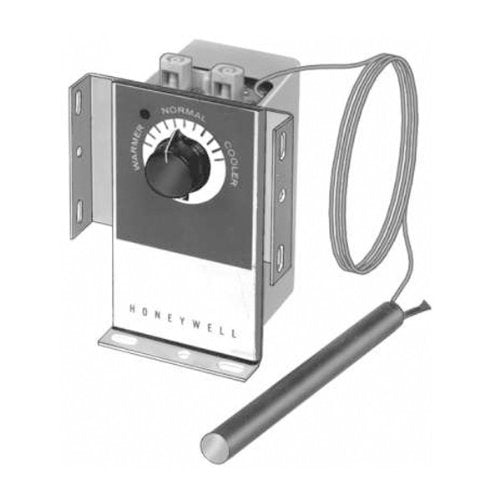

Honeywell LP916A1134 Two Pipe DA Pneumatic Temp Sensor 65-85F

Product Description

The Honeywell LP916A1134 is a two-pipe direct acting pneumatic temperature sensor. This sensor is designed for precise temperature measurement within a range of 65 to 85 degrees Fahrenheit. It is suitable for demanding industrial environments and easily integrates with existing pneumatic control systems.

• Accurate temperature measurement
• Operating range 65 to 85 degrees Fahrenheit
• Durable construction

Product Highlights

This pneumatic temperature sensor from Honeywell provides accurate temperature monitoring for HVAC systems and process control applications. It features a robust two-pipe design and a remote bulb sensor that ensures reliable signal transmission.

Product Information

Standard Information

• Brand: Honeywell
• MPN: LP916A1134

Technical Specifications

• Temperature Range: 65 to 85 degrees Fahrenheit
• Operating Pressure: 25 PSI
• Sensor Element: Bulb 3/8 x 7 inches, capillary 36 inches
• Connections: 1/4 inch barb fittings
• Material: High impact styrene
• Dimensions: 3 3/4 inches width x 3 inches depth x 4 3/4 inches height
• Weight: 1.6 lbs
• Included: Integral mounting bracket, 304528A bag assembly, (2) 316297-00021 bulb hangers
