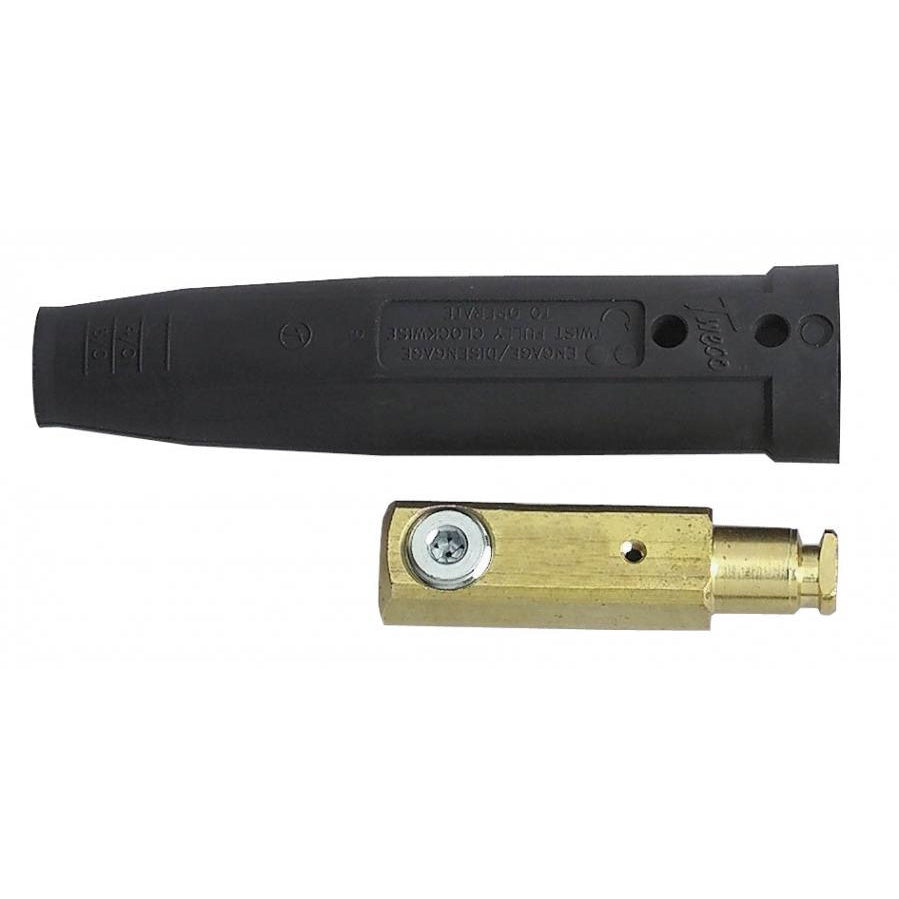

Tweco 9425-1210 2-MPC-1 Male Connector 300 Amp 2-Pack 94251210

Product Description

The Tweco 9425-1210 (2-MPC-1) is a male welding cable connector rated for 300 A, supplied as a two-piece set. It uses a single ball-point cable connection and accepts 1/0 to 3/0 welding cable. The connector body is machined from a brass-alloy extrusion with a zinc-plated cover and heat- and oil-resistant thermoplastic elastomer covers, providing a positive cam-action locking interface and interchangeability with older MBP connectors.

• Single ball-point connection accepts 1/0, 2/0, and 3/0 welding cable
• Machined brass-alloy body with zinc-plated cover and ball-point screws
• Heat- and oil-resistant thermoplastic elastomer covers; positive cam-action locking

Product Highlights

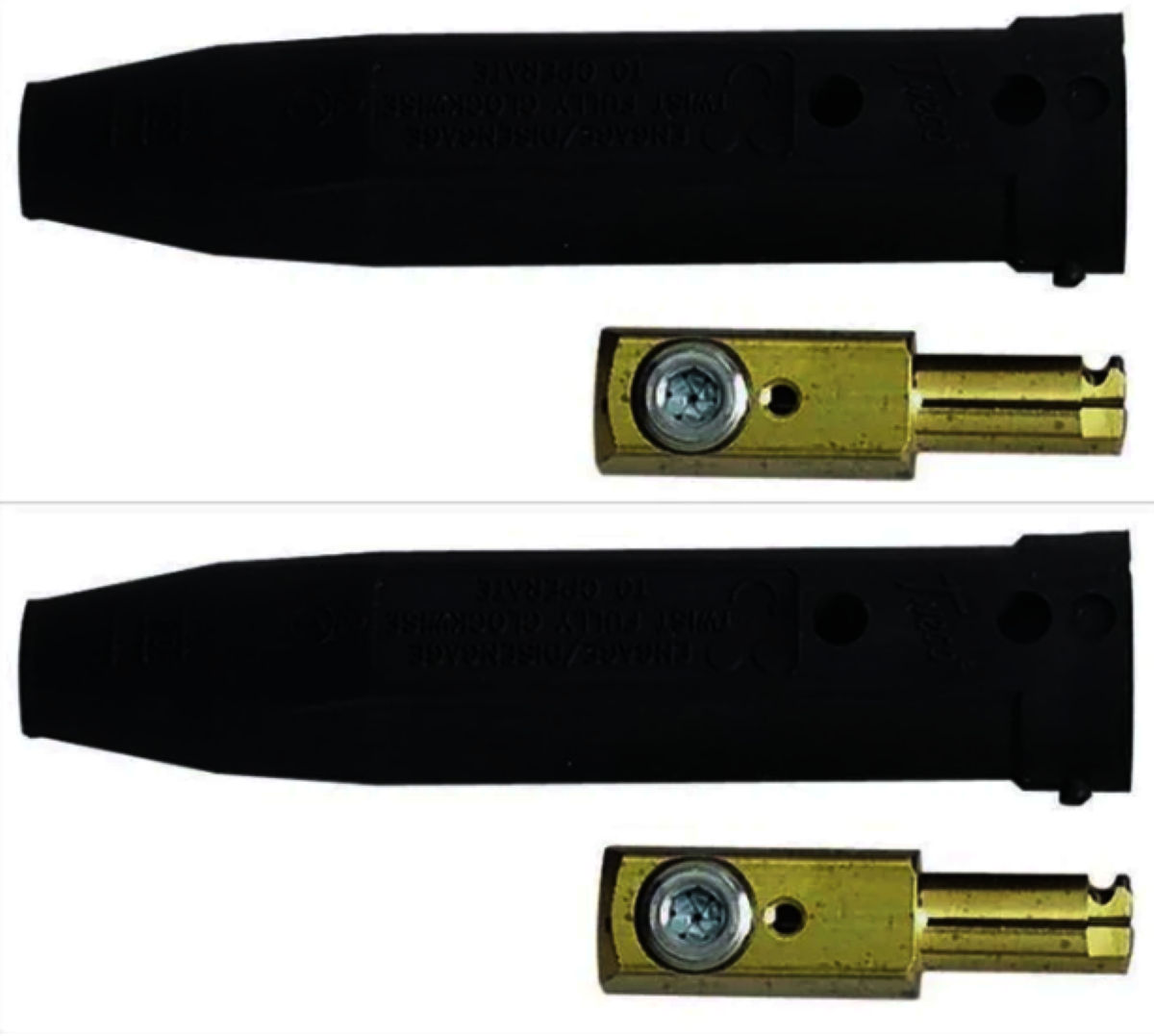

Male Tweco 2-MPC-1 cable connector, 300 A rating, single ball-point, zinc-plated cover, sold as a 2-pack

Product Information

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 9425-1210
• Country of Origin: Mexico

Technical Specifications

• Brand: TWECO
• Manufacturer Part Number: 9425-1210
• Model Number: 2-MPC-1
• Alternate Part Number: 94251210
• Connector Type: Tweco
• Connector Gender: Male
• Connection Type: Single ball-point
• Cable Capacity: 1/0, 2/0, 3/0
• Maximum Amperage: 300 A
• Material: Brass-alloy extrusion (machined)
• Cover Material: Thermoplastic elastomer (heat- and oil-resistant)
• Finish: Zinc plated cover with ball-point screws
• Insulated: Yes
• Package Quantity: 2
• Compatibility: Interchangeable with older Tweco MBP connectors
• Weight (listed in specs): 0.96 lb
• Country of Origin: Mexico
• UPC: 608246054094
• ASIN: B01LXFYGYQ
