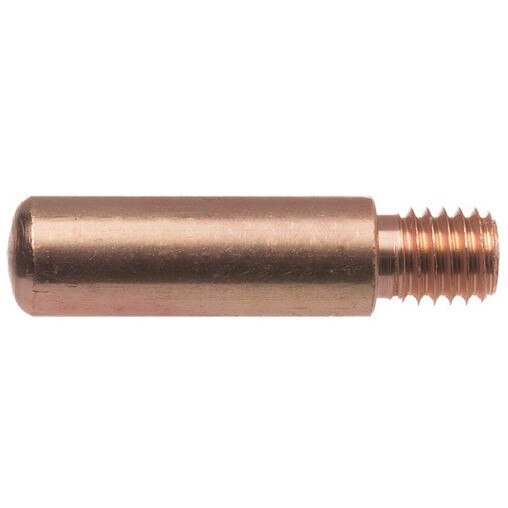

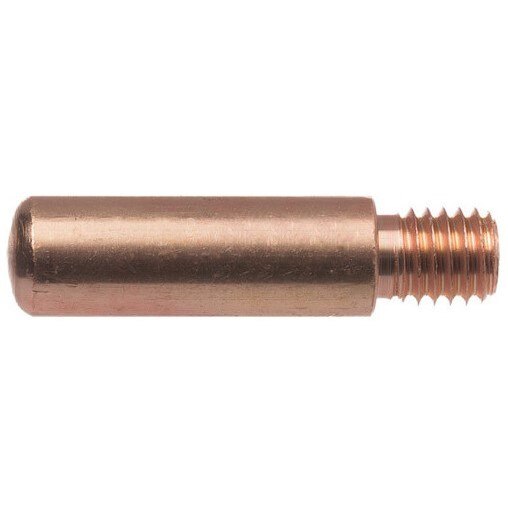

Tweco 7050-1001 Mig Contact Tip 0.030 Inch 10 Pack

Product Description

The TWECO 7050-1001 is a standard MIG welding contact tip designed to carry welding current from the gun to the wire electrode at the point of electrical contact. It features a 0.030 inch wire diameter rating with a 0.038 inch bore ID, machined from extruded or gun-drilled copper alloy tubing for consistent inside diameter surface finish. The outside diameter measures 0.25 inches and the tip length is 1 inch. Sold as a pack of 10, this tip is installed by welding technicians and MIG operators who require reliable current transfer and weld quality in applications up to 200 amps.

This contact tip is suited for light to medium-duty MIG welding applications in fabrication, maintenance, and repair environments. It is designed for use with the MS250, Mini, and No. 1 MIG gun series. The threaded style construction ensures positive contact with a compatible gas diffuser when installed to the gun. The bore ID tolerance is held to plus or minus 0.003 inches, supporting consistent wire feed and arc stability across extended use.

Key Features

• 0.030 inch wire diameter rating with 0.038 inch bore ID
• Bore ID tolerance held to plus or minus 0.003 inches for consistent wire feed
• Machined from copper alloy tubing for smooth, uniform inside diameter surface
• Each tip is marked with part number and wire diameter for easy field identification
• Threaded style design ensures proper contact with gas diffuser when installed
• Rated for welding applications up to 200 amps
• Sold as a pack of 10

Compatibility

Designed for use with TWECO MS250, Mini, and No. 1 MIG gun series with a compatible threaded gas diffuser.

Installation Notes

Contact tips are installed and replaced by welding technicians and MIG gun operators. Always power down the welding system and allow the gun to cool before removing or installing contact tips. Use the appropriate tip wrench to avoid cross-threading or over-torquing the threaded connection. Inspect the gas diffuser for wear or spatter buildup and replace as needed when changing contact tips.

Technical Specifications

• Wire Diameter: 0.030 inches
• Bore ID: 0.038 inches
• Outside Diameter: 0.25 inches
• Tip Length: 1 inch
• Amperage Rating: 200 amps maximum
• Material: Copper alloy
• Package Quantity: 10 per pack
• Package Weight: 0.15 pounds
• UPC: 608246225517

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 7050-1001
