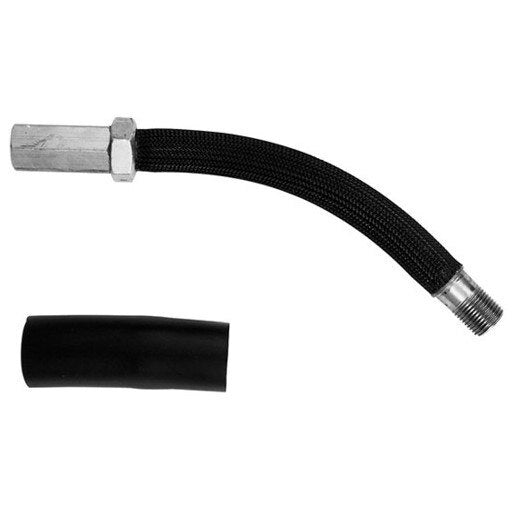

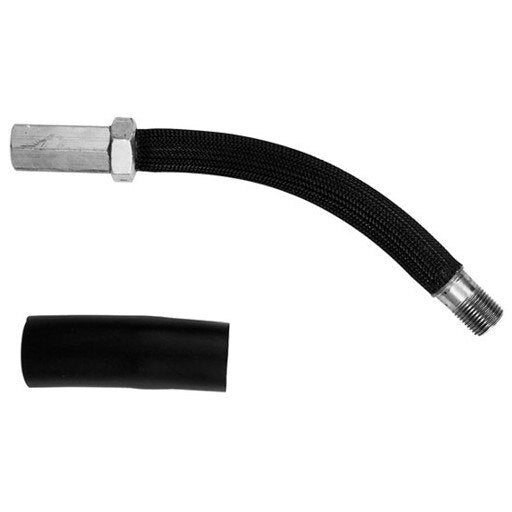

Tweco 1620-1300 Mig Conductor Tube 45 Degree Classic No. 2

Product Description

The TWECO 1620-1300 is a 45-degree conductor tube designed for use with the Classic No. 2 Professional MIG gun. Also called a neck or gooseneck, the conductor tube directs the wire feed and carries welding current from the handle assembly to the contact tip end. It is a wear and replacement consumable serviced by welding technicians and MIG gun maintenance personnel. At 0.45 pounds and measuring approximately 8.6 inches in length, this metal conductor tube is a direct-fit replacement consumable for Classic No. 2 gun configurations requiring a 45-degree bend angle.

This conductor tube is intended for MIG welding applications in fabrication shops, manufacturing facilities, and field welding environments where Classic No. 2 Professional MIG gun setups are in service. The 45-degree angle suits flat and horizontal welding positions where moderate torch angle access is needed. TWECO Classic No. 2 conductor tubes are also available in 60, 80, and 180-degree configurations as well as a flexible Knucklehead option for varied access requirements.

Key Features

• 45-degree bend angle suits flat and horizontal position MIG welding
• Metal construction for durability and heat conductivity in continuous welding cycles
• Direct-fit replacement consumable for Classic No. 2 Professional MIG guns
• Lightweight at 0.45 pounds for reduced operator fatigue during extended use
• Sold individually for single-unit replacement without excess stock

Compatibility

Designed for use with TWECO Classic No. 2 Professional MIG guns. Compatible conductor tube configurations for this gun family also include 60, 80, and 180-degree standard angles and the flexible Knucklehead style.

Installation Notes

Conductor tube replacement is performed by qualified welding equipment technicians or experienced MIG gun operators. Disconnect the gun from the wire feeder and ensure the power source is off before disassembly. Remove the contact tip and nozzle before unthreading or unlatching the existing conductor tube. Follow the gun manufacturer's assembly torque guidance and inspect liner seating when reinstalling.

Technical Specifications

• Bend Angle: 45 degrees
• Material: Metal
• Length: 8.6 inches
• Width: 3.5 inches
• Height: 0.7 inches
• Weight: 0.45 pounds
• Sold As: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1620-1300
