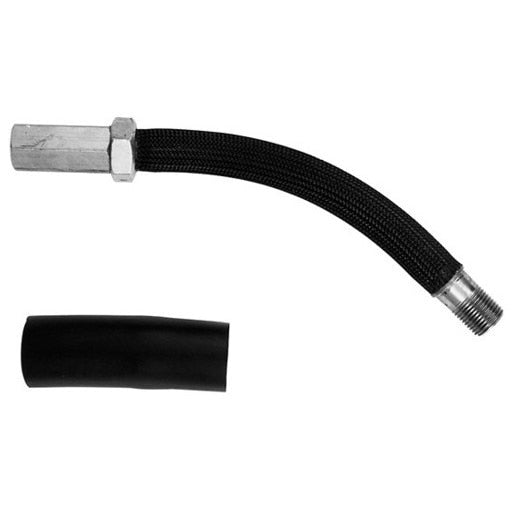

Tweco 1620-1102 Conductor Tube 60 Degree Mig Gun

Product Description

The TWECO 1620-1102 is a fibre conductor tube designed for use with the Classic No. 2 Professional MIG welding gun. The conductor tube directs the welding wire from the gun neck to the contact tip, maintaining proper wire alignment and electrical contact throughout the weld. This 60-degree version is the standard consumable configuration for applications requiring a fixed-angle approach. It measures approximately 8.6 inches in length and weighs 0.19 pounds. Welding technicians and fabricators replace conductor tubes as part of routine MIG gun maintenance when wear, burn-back damage, or arc instability indicates consumable degradation.

This conductor tube fits the TWECO Classic No. 2 Professional MIG gun platform. The 60-degree angle suits flat, horizontal, and many out-of-position welds where a fixed-neck gun is used. Classic No. 2 guns are widely used in light industrial, fabrication shop, and maintenance welding environments. The fibre construction provides electrical isolation between the tube body and the gun neck assembly. TWECO Classic No. 2 conductor tubes are also available in 45, 80, and 180-degree configurations as well as the flexible Knucklehead option for jobs requiring varied torch angles.

Key Features

• 60-degree fixed angle for standard MIG welding positions
• Fibre construction provides electrical isolation at the gun neck
• OEM-style replacement consumable for Classic No. 2 Professional MIG guns
• Sold individually, allowing single-unit replacement as needed
• Compact profile: 8.6 inches long, 0.19 pounds

Compatibility

Designed for use with the TWECO Classic No. 2 Professional MIG gun. Compatible consumable family includes 45, 60, 80, and 180-degree conductor tubes and the flexible Knucklehead configuration.

Installation Notes

Conductor tube replacement is performed by qualified welding equipment technicians or experienced welders. Always disconnect the MIG gun from the welder power source and allow the gun to cool completely before handling consumables. Use appropriate hand tools to remove and seat the conductor tube without cross-threading the connection. Follow the gun manufacturer's assembly sequence to ensure proper wire liner alignment through the new tube.

Technical Specifications

• Angle: 60 degrees
• Material: Fibre
• Length: 8.6 inches
• Width: 3.5 inches
• Height: 0.7 inches
• Weight: 0.19 pounds
• Sold As: Each
• UPC: 608246086309

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1620-1102
