Tweco 1560-1110 Brass Gas Diffuser 350A Mig Eliminator

Product Description

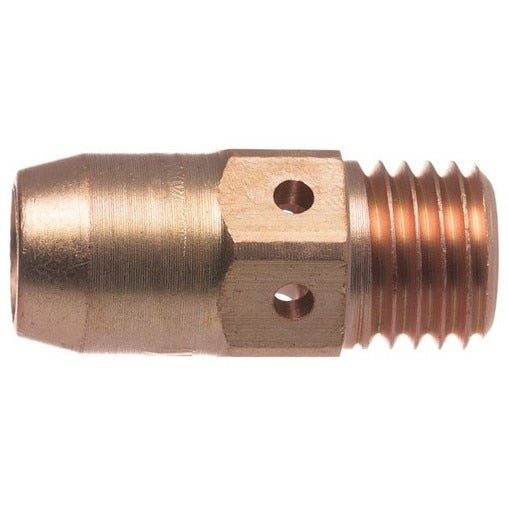

The TWECO 1560-1110 is a brass gas diffuser designed for use with the Tweco Eliminator MIG gun series rated up to 350 amps. Machined from 360 brass alloy bar stock, this diffuser delivers consistent dimensional stability and reliable electrical conductivity across light to medium duty welding applications. It measures 2.378 inches in overall length and features an M11 x 1.5-6g thread size with six 0.094-inch gas holes for uniform shielding gas distribution. A spiral ring provides the mating surface for slip-on nozzle assemblies, and a silicone O-ring seals securely against the nozzle assembly. Sold in a pack of five.

This gas diffuser is suited for light to medium duty MIG welding applications requiring up to 350 amps of output. It is compatible with Tweco Eliminator front-end consumables and slip-on nozzle assemblies. The part number is rolled-stamped on the external surface for fast identification in the field, and the replacement O-ring part number is also noted on the diffuser for convenient reference. This diffuser fits the properly threaded conductor tube of compatible Tweco Eliminator MIG guns, making it a direct drop-in component for shops and field welders running that platform.

Key Features

• Machined from 360 brass alloy bar stock for consistent dimensional stability
• Six 0.094-inch gas holes provide uniform shielding gas coverage
• M11 x 1.5-6g thread size for proper fit on compatible conductor tubes
• Spiral ring design accepts slip-on nozzle assemblies
• Silicone O-ring included for secure sealing against the nozzle assembly
• Part number and replacement O-ring reference rolled-stamped on exterior for easy field ID
• Sold as a pack of five units

Compatibility

Designed for use with Tweco Eliminator MIG gun series rated up to 350A and Tweco Eliminator front-end consumables. Replacement O-ring part number is EL52-1 (1560-1108).

Installation Notes

Installation is performed by a qualified welder or welding technician. Disconnect and de-energize the MIG gun and power source before replacing front-end consumables. Thread the diffuser onto the conductor tube by hand first to avoid cross-threading, then snug with the appropriate wrench. Inspect the silicone O-ring for damage before assembly to ensure a proper gas seal against the nozzle.

Technical Specifications

• Overall Length: 2.378 inches
• Thread Size: M11 x 1.5-6g
• Gas Holes: Six at 0.094 inches each
• Current Rating: 350 amps
• Material: 360 brass alloy bar stock
• Seal Type: Silicone O-ring
• Weight: 0.09 pounds
• Package Quantity: 5 per pack
• UPC: 608246005676

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1560-1110
