Tweco 1560-1100 Mig Gas Diffuser 600A 16RS 16S Series

Product Description

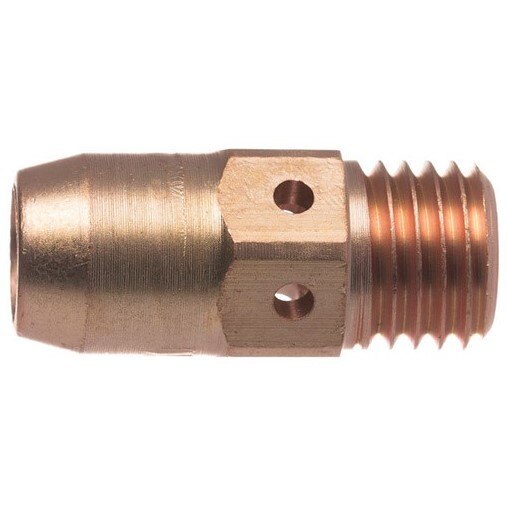

The TWECO 1560-1100 is a standard-duty MIG gas diffuser designed for use with Tweco No. 5 MIG gun series and Eliminator front-end consumables rated up to 600 amps. Machined from 145 tellurium copper alloy bar stock, this diffuser delivers consistent dimensional stability and reliable electrical conductivity across medium to heavy-duty welding applications. It measures 1.142 inches in overall length and features an M12 x 1.5-6g thread size with six gas holes at 0.094 inches each for even shielding gas distribution. The part number is rolled and stamped on the external surface for quick field identification. Sold as a pack of 5 units.

This gas diffuser fits within the Tweco 16RS and 16S series front-end consumable system and is suited for medium to heavy-duty MIG welding environments. The conduit set screw accommodates a 1/16-inch conduit liner, keeping it securely in place during operation. The properly threaded conductor tube mates directly with compatible MIG gun bodies. This component is appropriate for fabrication shops, structural welding, and other applications demanding sustained high-amperage output up to 600A.

Key Features

• Rated up to 600 amps for medium to heavy-duty MIG welding
• Machined from 145 tellurium copper alloy bar stock for consistent dimensional stability and electrical performance
• Six 0.094-inch gas holes for uniform shielding gas distribution around the weld zone
• M12 x 1.5-6g thread for secure fit on compatible conductor tubes
• Conduit set screw accommodates 1/16-inch conduit liner
• Part number rolled and stamped on external surface for easy identification in the field

Compatibility

Compatible with Tweco No. 5 MIG gun series (600A) and Eliminator front-end consumables within the 16RS and 16S series consumable system.

Installation Notes

Installation is performed by qualified welding technicians or maintenance personnel. Always power down and de-energize the MIG gun and disconnect from the wire feeder before removing or installing front-end consumables. Ensure the conduit liner is fully seated and secured with the set screw before returning the gun to service. Do not over-tighten threaded connections, as tellurium copper fittings can be damaged by excessive torque.

Technical Specifications

• Overall Length: 1.142 inches
• Thread Size: M12 x 1.5-6g
• Gas Holes: 6 holes at 0.094 inches each
• Maximum Amperage: 600A
• Material: 145 Tellurium Copper Alloy
• Conduit Liner Accommodation: 1/16 inch
• Package Quantity: 5 per pack
• Weight: 0.04 pounds
• UPC: 608246080253

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1560-1100
