Tweco 1540-1137 Gas Diffuser 450A Mig Welding

Product Description

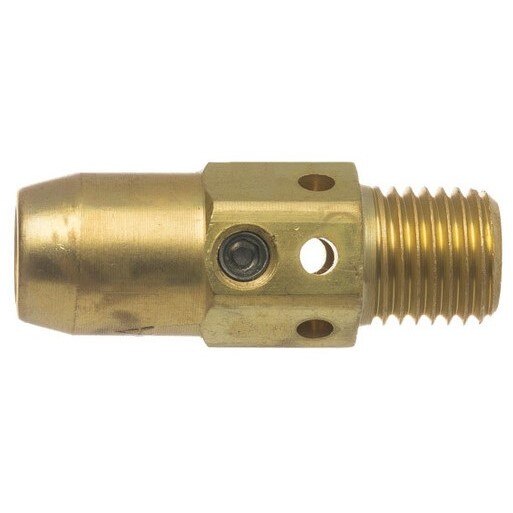

The TWECO 1540-1137 is a brass gas diffuser designed for use with slip-on style nozzle assemblies on 450 A MIG gun series and Eliminator front-end consumable systems. Machined from 360 brass alloy bar stock, it delivers consistent dimensional stability and reliable electrical conductivity in medium to heavy-duty welding applications rated up to 450 A. The diffuser measures 2.043 inches in length with a 9/16 inch-18 UNC-2A thread size and features six 0.094 inch gas holes for uniform shielding gas distribution. A silicone o-ring seals the diffuser against the nozzle assembly, and a metal flat spring on the OD retains the nozzle during the welding process. Licensed welders and MIG gun technicians install this component as a standard consumable replacement.

This gas diffuser is suited for medium to heavy-duty MIG welding environments where consistent gas coverage and electrical performance are required. It is compatible with 1/16 inch wire conduit liners and properly threaded conductor tubes used in 450 A MIG gun setups. The Eliminator front-end consumable configuration makes it a practical replacement in production welding, fabrication shops, and heavy industrial applications. The part number is rolled-stamped on the external surface for quick identification during consumable changeovers. Sold in a pack of five units.

Key Features

• Machined from 360 brass alloy bar stock for consistent dimensional stability and electrical conductivity
• Six 0.094 inch gas holes provide uniform shielding gas distribution around the weld zone
• Metal flat spring on the OD retains slip-on nozzle assemblies securely during welding
• Silicone o-ring seals against the nozzle assembly to prevent gas leakage
• Part number rolled-stamped on the external surface for easy field identification
• Rated for medium to heavy-duty applications up to 450 A

Compatibility

Designed for use with slip-on style nozzle assemblies on 450 A MIG gun series and Eliminator front-end consumables. Compatible with 1/16 inch wire conduit liners and threaded conductor tubes used in that gun configuration.

Installation Notes

Installation is performed by a qualified welder or MIG gun technician. Always power down the welding machine and allow the gun to cool before replacing consumables. Thread the diffuser onto the conductor tube using the 9/16 inch-18 UNC-2A thread engagement and verify the o-ring is properly seated before attaching the nozzle assembly. Do not over-tighten, as this may damage the brass threads or deform the o-ring seat.

Technical Specifications

• Length: 2.043 inches
• Thread Size: 9/16 inch-18 UNC-2A
• Gas Holes: 6 x 0.094 inches
• Wire Conduit Liner Size: 1/16 inch
• Current Rating: 450 A
• Material: 360 Brass Alloy Bar Stock
• Weight: 0.1 pounds
• Package Quantity: 5 per pack

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1540-1137
