Tweco 1540-1136 Gas Diffuser 450A Mig Welding 5 Pack

Product Description

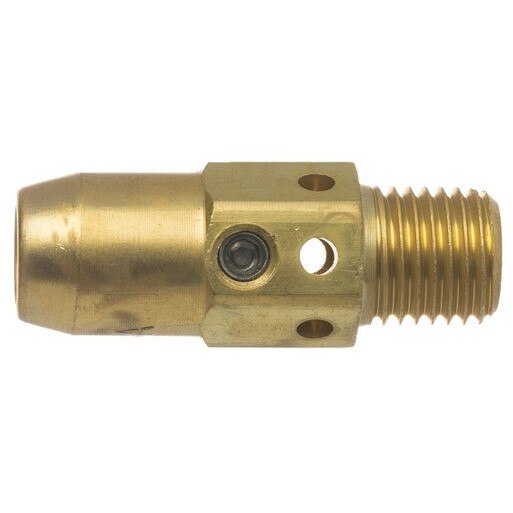

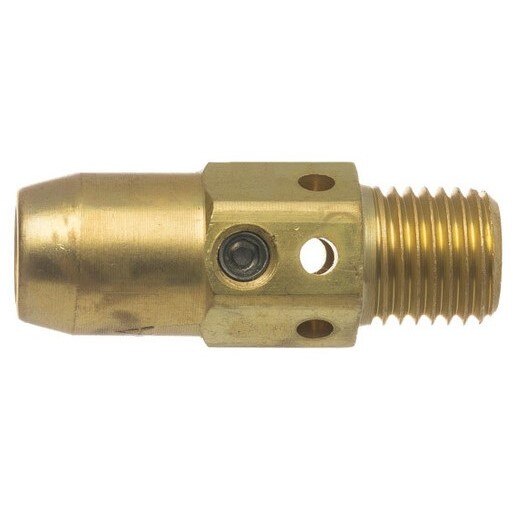

The TWECO 1540-1136 is a heavy-duty brass gas diffuser designed for use with slip-on nozzle assemblies on MIG welding guns rated up to 450 amps. Machined from 360 brass alloy bar stock, it measures 1.955 inches in overall length and features a 9/16 inch-18 UNC-2A thread size with six 0.094 inch gas ports for consistent shielding gas distribution. A metal flat spring mounted to the outer diameter allows nozzle assemblies to slide on and lock in place during the weld cycle. A silicone O-ring seals against the nozzle assembly to prevent gas leakage. Licensed HVAC and welding professionals working with medium to heavy-duty MIG applications will find the dimensional stability and consistent electrical properties essential for repeatable results. Sold in packs of five.

This diffuser is suited for medium to heavy-duty standard MIG welding applications up to 450 amps. It is designed specifically for use with slip-on style nozzle assemblies and is compatible with the 450 A Tweco Spray Master MIG gun series as well as Tweco eliminator front-end consumable systems. The 16RS and 16S series designation covers a range of heavy-duty welding environments where stable arc characteristics and reliable gas coverage are critical. Typical install scenarios include fabrication shops, structural welding, and heavy manufacturing lines where high-amperage MIG guns see sustained duty cycles.

Key Features

• Machined from 360 brass alloy bar stock for consistent dimensional stability and reliable electrical conductivity
• Six 0.094 inch gas ports deliver even shielding gas distribution around the weld zone
• 9/16 inch-18 UNC-2A external thread mates with standard conductor tube on compatible MIG guns
• Metal flat spring on the outer diameter retains slip-on nozzle assemblies securely during the welding process
• Silicone O-ring seals the nozzle assembly interface to prevent shielding gas loss
• Part number rolled-stamped on the external surface for fast field identification

Compatibility

Compatible with slip-on nozzle assemblies used on the 450 A Tweco Spray Master MIG gun series and Tweco eliminator front-end consumable systems. Fits the 16RS and 16S series heavy-duty MIG gun configuration.

Installation Notes

Installation and replacement of MIG gun consumables should be performed by a qualified welding technician with the gun fully de-energized and the wire feeder disabled before handling. Thread the diffuser into the conductor tube by hand first to avoid cross-threading, then snug with appropriate pliers — do not over-torque brass fittings. Inspect the silicone O-ring for damage before reinstalling the nozzle assembly to maintain a proper gas seal.

Technical Specifications

• Overall Length: 1.955 inches
• Thread Size: 9/16 inch-18 UNC-2A
• Gas Holes: 6 x 0.094 inch diameter
• Maximum Current Rating: 450 amps
• Material: 360 brass alloy bar stock
• Package Quantity: 5 per pack
• Weight: 0.09 pounds
• Width: 1.9 inches
• Height: 0.7 inches
• UPC: 608246301075

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1540-1136
