Tweco 1525-1140 Automation Gas Diffuser 400 Amp

Product Description

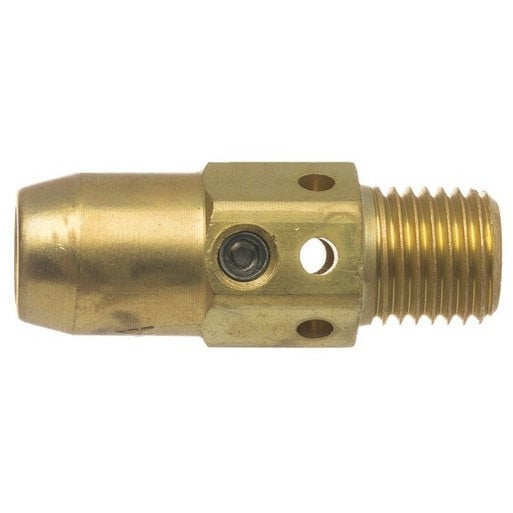

The TWECO 1525-1140 is a 400-amp automation gas diffuser machined from solid brass alloy bar stock. It is designed for use in MIG welding automation systems where consistent, high-volume gas coverage is critical. The diffuser seats inside the welding gun front end and meters shielding gas flow around the contact tip. With twelve gas ports at 0.094 inches each, it delivers significantly broader gas distribution than standard six-hole designs, helping to stabilize the arc and improve weld quality in high-duty-cycle automated applications. A machined groove around the outside diameter aids in cutting replacement conduit liner during service.

This diffuser is suited for automated MIG welding cells operating at up to 400 amps. It fits the TWECO WC53-EL gun platform and is intended for use with EL16RS contact tips. Typical installations include robotic and hard-automation welding fixtures in manufacturing and fabrication environments where the gun front end is serviced on a scheduled maintenance cycle rather than on demand.

Key Features

• Machined from solid brass alloy bar stock for consistent dimensional accuracy and heat resistance
• Twelve 0.094-inch gas ports provide roughly double the gas distribution area of a standard six-hole diffuser
• Machined exterior groove simplifies conduit liner cutting during front-end replacement
• Rated to 400 amps for high-duty-cycle automated welding applications
• Designed for use with EL16RS contact tips

Compatibility

Compatible with the TWECO WC53-EL gun platform. Use with EL16RS contact tips. Consult TWECO documentation to confirm fitment with other gun configurations before installation.

Installation Notes

Installation is performed by welding technicians or maintenance personnel servicing the automated gun front end. Power down and de-energize the welding system and relieve any pneumatic pressure before disassembling the gun. Thread the diffuser in by hand first to avoid cross-threading, then snug with the appropriate spanner or pliers — do not overtighten brass components against brass gun bodies. Verify tip-to-diffuser seating before returning the cell to production.

Technical Specifications

• Amperage Rating: 400 amps
• Number of Gas Ports: 12
• Gas Port Diameter: 0.094 inches (2.38 mm)
• Material: Solid brass alloy
• Length: 0.6 inches
• Width: 1.3 inches
• Height: 0.6 inches
• Weight: 0.04 pounds
• Sold As: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1525-1140
