Tweco 1520-1141 Mig Gas Diffuser 450A WS14 Weldskill

Product Description

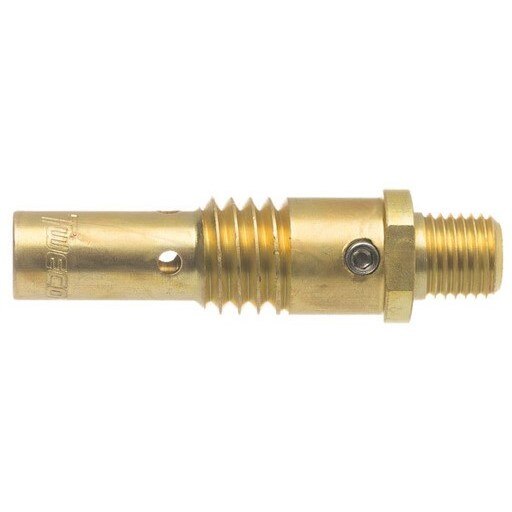

The TWECO 1520-1141 is a gas diffuser designed for use with MIG welding guns rated up to 450 amps. Machined from 360 brass alloy bar stock, it delivers consistent dimensional stability and reliable electrical conductivity across light to medium duty welding cycles. The diffuser measures 2.27 inches in overall length and features four 0.094-inch gas holes for even shielding gas distribution around the weld zone. Thread size is 3/8-24 UNF-2A male. A conduit set screw secures the conduit liner in position. The part number is rolled and stamped on the external surface for quick field identification. Sold in packs of 5. Installed by certified welders and MIG gun service technicians.

The 1520-1141 is part of the TWECO WS14 Weldskill Series and is suited for light to medium duty MIG welding applications up to 450 amps. It is compatible with slip-on nozzle assemblies and Eliminator front-end consumables used on 450A MIG gun platforms. The machined external thread allows nozzle assemblies or nozzle insulators to thread over the diffuser body, locking the slip-on nozzle securely in place during the welding process. This design fits standard conductor tube configurations found in appropriately rated TWECO MIG guns.

Key Features

• Rated up to 450 amps for light to medium duty MIG welding
• Machined from 360 brass alloy bar stock for consistent dimensional stability and electrical performance
• Four 0.094-inch gas holes provide uniform shielding gas distribution
• 3/8-24 UNF-2A male external thread accommodates slip-on nozzle assemblies and nozzle insulators
• Conduit set screw included to secure the conduit liner in place
• Part number rolled stamped on external surface for easy identification
• Compatible with Eliminator front-end consumables

Compatibility

Designed for use with TWECO WS14 Weldskill Series 450A MIG gun slip-on nozzle assemblies and Eliminator front-end consumables. Fits appropriately threaded conductor tubes on compatible 450A MIG guns.

Installation Notes

Installation is performed by a qualified welder or MIG gun technician. Disconnect and de-energize the welding power source before servicing front-end consumables. Thread the diffuser onto the conductor tube hand-tight, then verify nozzle seating before resuming welding operations. Do not overtighten, as this can damage the brass threads or distort the gas holes.

Technical Specifications

• Current Rating: 450 amps
• Overall Length: 2.27 inches
• Thread Size: 3/8-24 UNF-2A male
• Gas Holes: Four at 0.094 inches each
• Material: 360 brass alloy bar stock
• Weight: 0.09 pounds
• Package Quantity: 5 per pack
• UPC: 608246288185

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1520-1141
