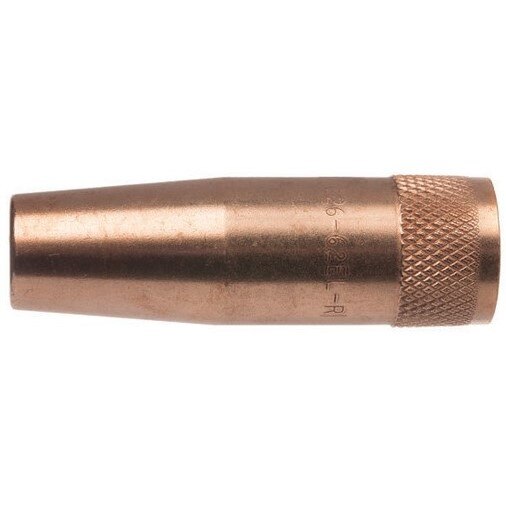

Tweco 1264-1120 Water Cooled Mig Nozzle 5/8 Inch Bore WC26

Product Description

The TWECO 1264-1120 is a water-cooled MIG welding nozzle designed for use with Tweco Standard Water Cooled MIG guns rated up to 600 amperes. Part of the WC26 series, the nozzle features a 5/8 inch bore and measures 2.871 inches in length. The housing is machined from tellurium copper alloy bar stock, providing consistent dimensional stability and efficient heat dissipation under sustained high-amperage operation. A G7 silicone spatter shield is included with each nozzle. This component is installed by certified welding technicians and fabricators performing medium to heavy duty MIG welding work.

The 1264-1120 is suited for medium to heavy duty welding applications where continuous or near-continuous arc time at high amperage is required. It is compatible with Tweco Standard or Eliminator consumables, making it a versatile option for shops already running Tweco WC26-series torch configurations. The nozzle threads onto the outer jacket assembly of water-cooled conductor tubes. Note that the Spatter Shield WC26-1 (Stock No. 1264-1009) is sold separately and used in conjunction with this nozzle.

Key Features

• Rated for welding applications up to 600 amperes
• Machined from tellurium copper alloy bar for dimensional stability and heat dissipation
• 5/8 inch bore diameter for consistent shielding gas flow
• G7 silicone spatter shield included with each nozzle
• Part number roll-stamped on exterior surface for easy field identification
• Threads onto outer jacket assembly of water-cooled conductor tubes

Compatibility

Compatible with Tweco Standard Water Cooled MIG guns rated up to 600 amperes. Accepts Tweco Standard or Eliminator consumables. Designed for use with Spatter Shield WC26-1 (Stock No. 1264-1009), sold separately.

Installation Notes

Installation should be performed by a qualified welding technician. Before servicing the torch or replacing nozzle components, shut off shielding gas supply and disconnect the welding power source. Ensure the water-cooled conductor tube is fully depressurized and cooled before handling. Thread the nozzle onto the outer jacket assembly by hand first to avoid cross-threading, then snug securely.

Technical Specifications

• Bore Diameter: 5/8 inch
• Nozzle Length: 2.871 inches
• Maximum Amperage: 600 amps
• Material: Tellurium copper alloy
• Included Accessory: G7 silicone spatter shield
• Package Weight: 0.3 pounds
• Package Length: 8.3 inches
• Package Width: 4.3 inches
• Package Height: 1.1 inches
• Sold As: Each
• UPC: 608246038155

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1264-1120
