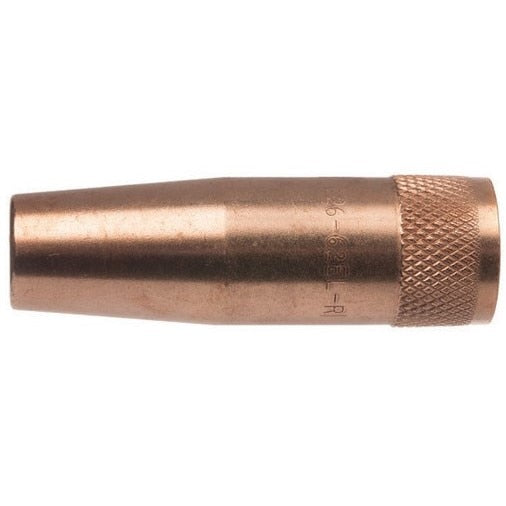

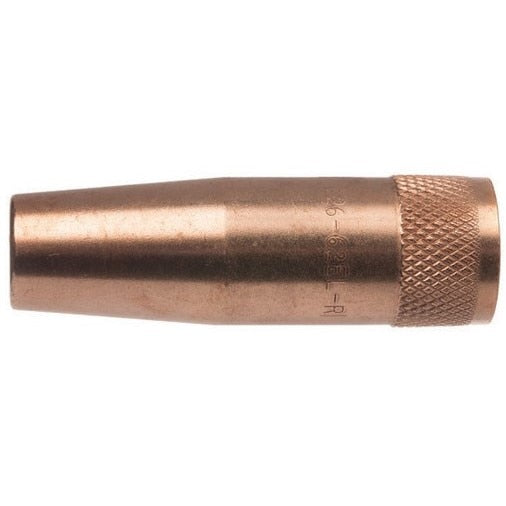

Tweco 1262-1032 Water Cooled Mig Nozzle 600 Amp WC26

Product Description

The TWECO 1262-1032 is a water cooled MIG welding nozzle designed for the WC26 Series of 600 amp Tweco Standard water cooled MIG guns. The nozzle housing is machined from tellurium copper alloy bar stock, which provides consistent dimensional stability and efficient heat dissipation under sustained high-amperage loads. A G7 silicone spatter shield is included with each unit. The part number is roll-stamped on the outside surface for quick identification in the field. Licensed welding technicians and shop maintenance personnel are the typical installers for this component.

This nozzle is designed for medium to heavy duty MIG welding applications running up to 600 amps. It threads directly onto the outer jacket assembly of water cooled conductor tubes. The WC26 Series configuration is compatible with Tweco Standard or Eliminator consumables. A spatter shield item WC26-1 (Stock No. 1264-1009) is also available and sold separately for use with this nozzle.

Key Features

• Rated for medium to heavy duty welding applications up to 600 amps
• Nozzle housing machined from tellurium copper alloy bar for dimensional stability and heat dissipation
• G7 silicone spatter shield included with each nozzle
• Part number roll-stamped on exterior surface for fast identification
• Threads onto outer jacket assembly of water cooled conductor tubes
• Compatible with Tweco Standard or Eliminator consumables

Compatibility

Compatible with Tweco Standard water cooled MIG guns in the WC26 Series rated at 600 amps. Accepts Tweco Standard or Eliminator consumables. For use with Spatter Shield WC26-1 (Stock No. 1264-1009), sold separately.

Installation Notes

Installation should be performed by a qualified welding technician or maintenance professional. Shut down and de-energize the welding system and allow water cooled components to cool before removing or replacing the nozzle. The nozzle threads onto the outer jacket assembly of the conductor tube — hand-tighten and verify secure seating before resuming operation. Inspect the included spatter shield and the conductor tube threads for damage prior to installation.

Technical Specifications

• Amperage Rating: 600 amps
• Nozzle Material: Tellurium copper alloy
• Spatter Shield Material: G7 silicone
• Length: 8.5 inches
• Width: 4.3 inches
• Height: 1.1 inches
• Weight: 0.3 pounds
• UPC: 608246169958

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1262-1032
