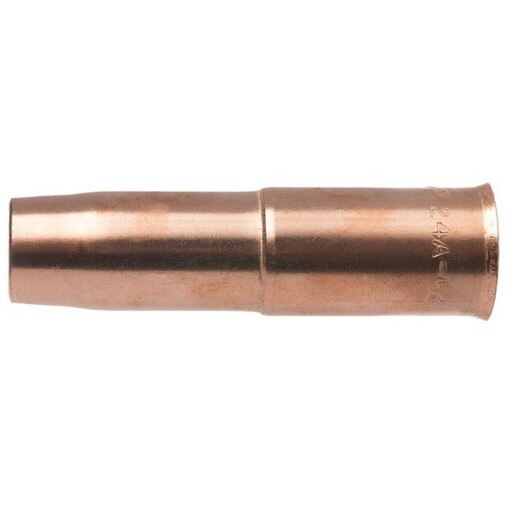

Tweco 1240-1336 Robotic Mig Nozzle 400A Water Cooled

Product Description

The TWECO 1240-1336 is a water-cooled robotic MIG welding nozzle rated for medium to heavy-duty applications up to 400 amps. The nozzle housing is machined from tellurium copper alloy bar stock, providing consistent dimensional stability and efficient heat dissipation during high-cycle robotic welding operations. A nickel-plated finish and bottle-shaped geometry complement the straight inner-diameter bore at the front end, which allows thorough cleaning of the sidewall surfaces and maintains reliable shielding gas flow. Each unit ships with a G7 silicone spatter shield. The part number is roll-stamped on the exterior for fast field identification.

The 1240-1336 is designed for robotic and fixed-automation MIG gun assemblies used in industrial weld cells. Its 0.5 inch diameter bore and threaded connection onto the outer jacket assembly of water-cooled conductor tubes make it well suited for integration with nozzle cleaning stations commonly incorporated into robotic weld cell layouts. Typical installations involve medium to heavy-duty continuous or semi-continuous welding processes where consistent gas coverage and repeatable nozzle geometry are critical to weld quality.

Key Features

• Rated up to 400 amps for medium to heavy-duty robotic MIG welding
• Tellurium copper alloy housing machined from bar stock for dimensional stability and heat dissipation
• Bottle-shaped geometry with straight inner-diameter bore for effective nozzle cleaning station compatibility
• Nickel-plated exterior finish for extended service life in high-spatter environments
• G7 silicone spatter shield included with each nozzle
• Part number roll-stamped on exterior surface for quick identification
• Threads onto outer jacket assembly of water-cooled conductor tubes

Compatibility

Designed for use with robotic and fixed-automation MIG guns, specifically compatible with the RCW24 water-cooled conductor tube assembly. Suitable for nozzle cleaning stations integrated into robotic weld cells.

Installation Notes

Installation should be performed by a qualified welding technician or automation integrator. Shut down and de-energize the welding power source and water-cooling system before removing or installing the nozzle. Thread the nozzle onto the outer jacket assembly of the water-cooled conductor tube by hand until seated, then verify the spatter shield is properly positioned before resuming operation. Confirm shielding gas flow and water-cooling circuit integrity before returning the system to service.

Technical Specifications

• Amperage Rating: 400 amps
• Bore Diameter: 0.5 inches
• Cooling Method: Water cooled
• Housing Material: Tellurium copper alloy
• Spatter Shield Material: G7 silicone
• Geometry: Bottle shaped
• Height: 3 inches
• Width: 1 inch
• Length: 1 inch
• Weight: 0.23 pounds
• UPC: 608246328959

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1240-1336
