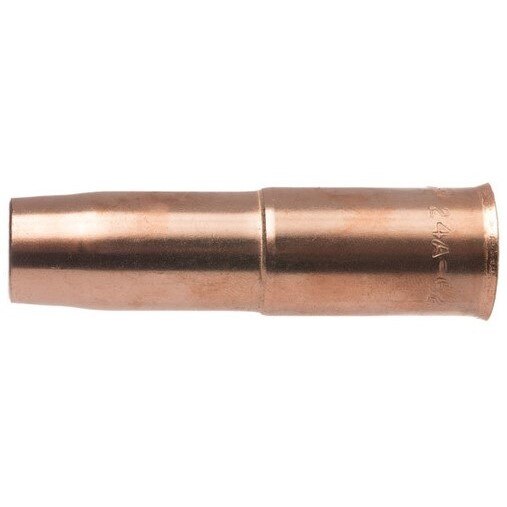

Tweco 1240-1310 Robotic Mig Nozzle 600A 1/2 Inch Bore

Product Description

The TWECO 1240-1310 is a 3-piece robotic MIG nozzle assembly designed for use with robotic and fixed automation MIG guns up to 600 amps. The nozzle housing is machined from tellurium copper alloy bar for effective heat dissipation. A solid brass insert allows the internal threads to be precisely machined to match the gas diffuser. A G7 silicone insulator provides electrical isolation between the nozzle and gas diffuser. The bottle-shaped geometry and 1/2 inch bore diameter support consistent shielding gas flow. This assembly features a 5/32 inch protruding tip configuration, making it suited for applications where longer electrical stick-out is required.

This nozzle assembly is intended for medium to heavy duty MIG welding applications in robotic and fixed automation weld cells. The protruding tip design is typically used when welding open root pipe or tight weld joints where the contact tip must reach deeper into the joint. The straight inner bore at the front end of the nozzle supports effective cleaning by automated nozzle cleaning stations, which are commonly integrated into robotic weld cells. Suitable for light to medium duty automated welding cycles up to 600 A. The part number is roll-stamped on the outside surface for easy field identification.

Key Features

• 3-piece construction: tellurium copper alloy housing, solid brass threaded insert, and G7 silicone insulator — no additional insulator required
• Tellurium copper alloy housing provides effective heat dissipation at sustained high-amperage duty cycles
• Solid brass insert with machined internal threads matched to the gas diffuser for secure seating
• G7 silicone insulator delivers electrical isolation between nozzle and gas diffuser
• 5/32 inch protruding tip suits open root pipe and tight weld joint access
• Straight ID bore supports nozzle cleaning station compatibility in robotic weld cells
• Part number roll-stamped on exterior for quick identification during changeover

Compatibility

Designed to work with robotic and fixed automation MIG guns. Compatible with the REL24 series robotic gun configuration. Verify gas diffuser thread pattern prior to installation.

Installation Notes

Installation is performed by qualified welding equipment technicians or automation integrators. Disable and lock out the welding power source and robotic cell before servicing front-end consumables. Confirm the gas diffuser thread pattern matches the brass insert before torquing the nozzle assembly into place. Inspect the G7 silicone insulator for damage during each consumable change to maintain proper electrical isolation.

Technical Specifications

• Amperage Rating: 600 A
• Bore Diameter: 1/2 inch
• Nozzle Length: 1 inch
• Tip Protrusion: 5/32 inch protruding
• Nozzle Geometry: Bottle shaped
• Housing Material: Tellurium copper alloy
• Insert Material: Solid brass
• Insulator Material: G7 silicone
• Weight: 0.23 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 2

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1240-1310
