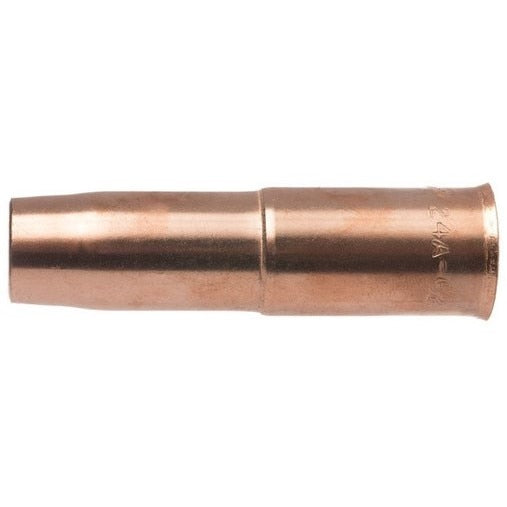

Tweco 1240-1231 Mig Welding Nozzle 3/4 in Bore 450A

Product Description

The TWECO 1240-1231 is a Short Stop heavy duty MIG welding nozzle rated for use in applications up to 450 amps. Built from 122 DHP copper alloy tubing, the nozzle housing is cut and formed for consistent performance under sustained heat. The bore measures 3/4 inches with an outer diameter of 0.97 inches and an overall length of 3.48 inches. The nozzle-to-contact-tip recess relationship is 0.125 to 0.156 inches. Sold as a 2-pack, this nozzle is designed for standard gas diffusers and slides over the standard nozzle insulator. The part number is roll-stamped on the outer surface for quick field identification.

This nozzle is suited for medium to heavy duty MIG welding operations. The adjustable fit allows the technician to set the desired contact tip and nozzle relationship based on application requirements. Recessed tip setups are well-suited for higher heat applications requiring longer electrical stick-out or situations where nozzle contact with the workpiece is likely, such as tack, spot, and stitch welding. Flush tip configurations work where shorter stick-out and tighter arc lengths are needed. Protruding tip setups are common when welding open root pipe or accessing tight joint geometries.

Key Features

• Rated for welding applications up to 450 amps
• 3/4 inch bore with 0.97 inch outer diameter and 3.48 inch overall length
• Housing cut and formed from 122 DHP copper alloy tubing
• Adjustable nozzle position to dial in contact tip and nozzle relationship
• Part number roll-stamped on outer surface for fast identification in the field
• Sold as a 2-pack

Compatibility

Designed for use with standard gas diffusers and slides over the standard nozzle insulator, compatible with TWECO part 34A (stock number 1340-1100).

Installation Notes

Installation and replacement should be performed by a qualified welding technician with the MIG welder powered down and the wire feed disabled before handling front-end consumables. Ensure the nozzle is fully seated over the nozzle insulator before resuming operation. Inspect the nozzle regularly for spatter buildup, which can restrict shielding gas flow and reduce weld quality. Follow the equipment manufacturer guidelines for front-end assembly torque and seating procedures.

Technical Specifications

• Bore Size: 3/4 inches
• Outer Diameter: 0.97 inches
• Overall Length: 3.48 inches
• Amperage Rating: 450 amps
• Nozzle Recess: 0.125 to 0.156 inches
• Material: 122 DHP copper alloy
• Package Quantity: 2 per pack
• Weight: 0.34 pounds
• UPC: 608246057361

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1240-1231
