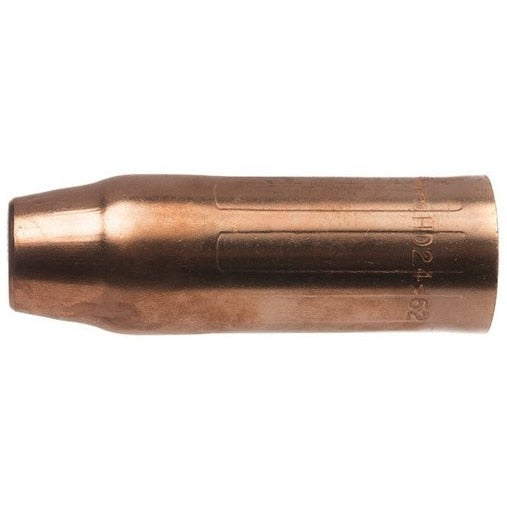

Tweco 1240-1205 Mig Nozzle 450A 5/8 Inch Bore Slip-on

Product Description

The TWECO 1240-1205 is a slip-on tip recess nozzle designed for use with 450 A Tweco SprayMaster MIG guns in medium to heavy-duty welding applications. The nozzle features a 0.625-inch bore, a 0.875-inch OD, and a 3.1-inch length. It is constructed with a 3-piece design: a nozzle housing cut and formed from 122 DHP copper alloy tubing, a nozzle insert machined from solid brass, and a nozzle insulator made from G7 silicone material. The brass insert is crimped in place so the nozzle slides over the metal spring of the gas diffuser. The part number is rolled-stamped on the outer surface for quick field identification. Sold in packs of 2.

This nozzle fits standard gas diffusers and is rated for welding applications up to 450 A. The recessed tip geometry provides a flush contact tip relationship of 0.062 inches, making it suited for higher-heat applications where longer electrical stick-out is required and for situations where the nozzle may contact the workpiece, such as tack, spot, and stitch welding. The G7 silicone insulator provides the electrical isolation required between the nozzle and gas diffuser without the need for a separate insulator component.

Key Features

• 450 A rating for medium to heavy-duty MIG welding applications
• 5/8-inch (0.625-inch) bore fits standard gas diffusers on Tweco SprayMaster MIG guns
• 3-piece design: 122 DHP copper alloy housing, solid brass machined insert, G7 silicone insulator
• Nozzle insulator eliminates the need for an additional separate insulator
• Flush contact tip relationship of 0.062 inches suited for tack, spot, and stitch welding
• Part number rolled-stamped on outer surface for easy field identification
• Sold as 2 per pack

Compatibility

Designed for use with 450 A Tweco SprayMaster MIG guns equipped with a standard gas diffuser.

Installation Notes

Installation is performed by qualified welding technicians or MIG gun service personnel. Ensure the welder is fully powered down and the gun is cool before replacing front-end consumables. The nozzle slides over the metal spring of the gas diffuser — verify the brass insert seats fully before resuming operation. Inspect the silicone insulator for damage during each consumable change to maintain proper electrical isolation.

Technical Specifications

• Bore Size: 0.625 inches
• Nozzle OD: 0.875 inches
• Nozzle Length: 3.1 inches
• Amperage Rating: 450 A
• Tip Relationship: Flush, 0.062 inches recess
• Housing Material: 122 DHP copper alloy
• Insert Material: Solid brass
• Insulator Material: G7 silicone
• Weight: 0.21 pounds
• Package Quantity: 2 per pack

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1240-1205
