Tweco 1240-1101 Mig Nozzle 3/8 Inch Bore 450 Amp Recessed

Product Description

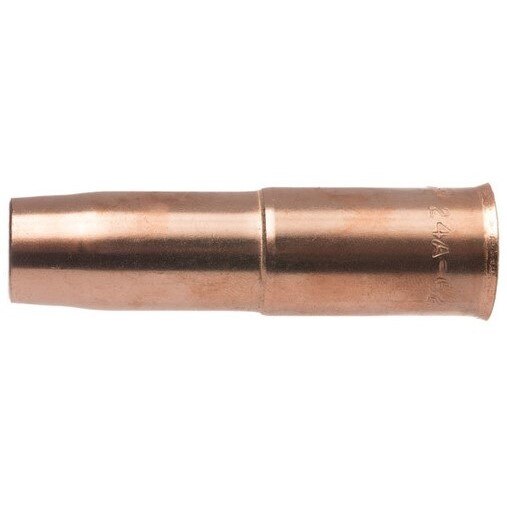

The TWECO 1240-1101 is a Short Stop copper MIG welding nozzle designed for use with Tweco No. 4 MIG guns rated up to 450 amps. Machined from 122 DHP copper alloy tubing, it measures 3.48 inches in length with a 3/8-inch (0.375-inch) bore and a 3/4-inch outer diameter. The contact tip relationship is recessed at 0.125 to 0.156 inches, making it suited for higher heat applications where longer electrical stick-out is needed or where the nozzle may contact the work piece. The part number is roll-stamped on the outer surface for fast field identification. This nozzle is sold as a 2-piece pack and fits over the standard nozzle insulator.

This nozzle is intended for medium to heavy-duty MIG welding applications in industrial and fabrication environments. The recessed tip configuration is well matched to tack welding, spot welding, and stitch welding operations, as well as any application where the nozzle tip risks contacting the base metal. It is compatible with the standard Tweco gas diffuser and is designed to slide over the standard nozzle insulator, part number 34A. Welding professionals working at higher amperages will find the 450-amp rating appropriate for structural and heavy plate work.

Key Features

• 122 DHP copper alloy construction for high conductivity and heat resistance
• 3/8-inch bore with 3.48-inch length and 3/4-inch outer diameter
• Recessed contact tip relationship of 0.125 to 0.156 inches for higher heat and longer stick-out applications
• Part number roll-stamped on outer surface for quick identification during service
• 3-piece nozzle design sized for standard Tweco gas diffusers
• Sold as a 2-piece pack

Compatibility

Designed for use with Tweco No. 4 MIG guns up to 450 amps. Slides over the standard Tweco nozzle insulator, part number 34A (stock number 1340-1100). Fits standard Tweco gas diffuser configurations.

Installation Notes

Installation and replacement of MIG nozzles should be performed by a qualified welding technician with the welding machine powered down and the gun cool to the touch. Ensure the gas diffuser is clean and free of spatter before seating the nozzle. Anti-spatter compound applied to the nozzle interior can extend service life. Inspect the nozzle insulator for damage at each replacement interval.

Technical Specifications

• Bore Size: 0.375 inches
• Nozzle Length: 3.48 inches
• Outer Diameter: 0.75 inches
• Maximum Amperage: 450 amps
• Tip Recess: 0.125 to 0.156 inches
• Material: 122 DHP Copper Alloy
• Weight: 0.17 pounds
• Pack Quantity: 2 per pack

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1240-1101
