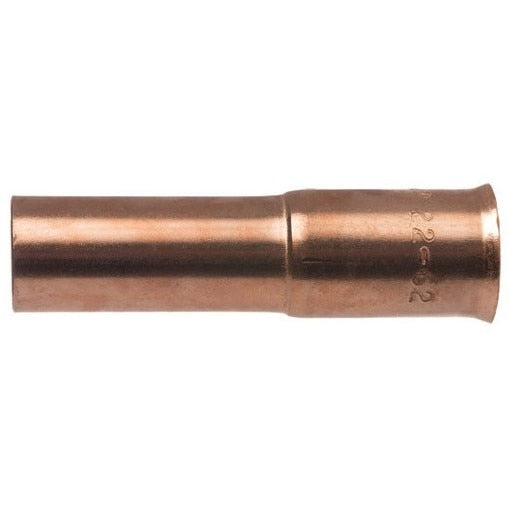

Tweco 1220-1121 Mig Welding Nozzle 5/8 Inch Bore 250A

Product Description

The TWECO 1220-1121 is a short stop MIG welding nozzle constructed from 122 DHP copper alloy tubing, designed for use with standard gas diffusers on Tweco No. 2 MIG guns rated up to 250 amps. The nozzle measures 2.1 inches in length with a 5/8 inch (0.625 inch) bore and a 3/4 inch outer diameter. The housing is cut and formed directly from copper alloy tubing for consistent wall integrity. An adjustable design allows the technician to set the contact tip and nozzle relationship to recessed, flush, or protruding positions depending on joint access and heat requirements. Sold as 2 per pack.

This nozzle is suited for light to medium duty MIG welding applications up to 250 amps. A recessed tip position is appropriate for higher heat applications requiring longer electrical stick-out or where the nozzle may contact the work piece during tack, spot, or stitch welding. A flush tip position works well when shorter electrical stick-out and tighter arc lengths are needed. A protruding tip position is used when welding open root pipe or any joint requiring the gun to reach into a tight weld joint. The nozzle slides over the standard nozzle insulator without modification.

Key Features

• 122 DHP copper alloy construction suited for higher heat welding applications
• Adjustable contact tip and nozzle relationship: recessed, flush, or protruding
• 5/8 inch bore diameter compatible with standard gas diffusers on Tweco No. 2 MIG guns
• Part number rolled and stamped on the outer surface for quick field identification
• Slides over standard nozzle insulator without additional hardware
• Sold as 2 per pack

Compatibility

Designed for use with standard gas diffusers on Tweco No. 2 MIG guns rated up to 250 amps.

Installation Notes

Installation is performed by a qualified welding technician. Disconnect and de-energize the MIG gun and ensure the wire feeder is off before servicing front-end consumables. Slide the nozzle over the nozzle insulator and adjust to the desired tip recess or protrusion before securing. Inspect the nozzle insulator for wear or spatter buildup during each nozzle replacement.

Technical Specifications

• Bore Diameter: 5/8 inch (0.625 inch)
• Outer Diameter: 3/4 inch
• Nozzle Length: 2.1 inches
• Maximum Amperage: 250 amps
• Tip Recess Range: Flush to 1/8 inch recess
• Material: 122 DHP copper alloy
• Package Width: 0.8 inches
• Package Height: 0.8 inches
• Package Length: 2.2 inches
• Weight: 0.14 pounds
• Sold As: 2 per pack
• UPC: 608246056210

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1220-1121
