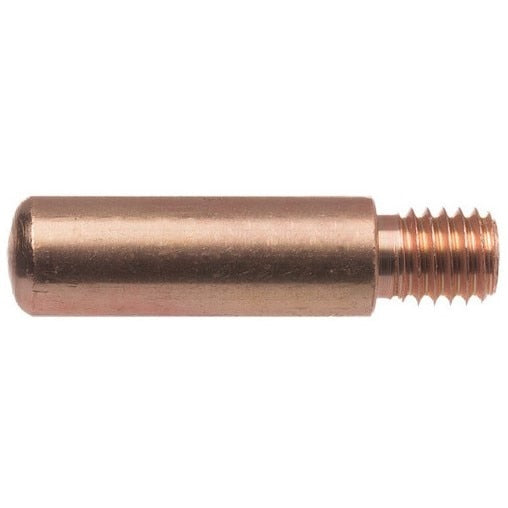

Tweco 1160-1137 Mig Contact Tip 0.045 in 0.054 Bore 25 Pack

Product Description

The TWECO 1160-1137 is a 16 Series heavy-duty tapered contact tip designed for MIG welding applications up to 600 amps. It accommodates 0.045-inch wire with a 0.054-inch nominal bore and measures 1.5 inches in length. The tip is machined from extruded or gun-drilled 122 DHP copper alloy tubing, delivering a consistent, smooth inside diameter held to a tolerance of plus or minus 0.003 inches. The M8 x 1.25-6g thread style ensures secure, consistent contact with the gas diffuser. Each tip is clearly marked with part number and wire diameter for fast field identification. Sold in packs of 25.

This contact tip is rated for heavy-duty welding up to 600 amps and is compatible with Tweco Spray Master and Tweco No. 6 MIG guns, as well as specific MIG gun series in that current range. It suits both slip-on and thread-on nozzle configurations. The thick-walled copper alloy construction acts as a heat sink, drawing heat away from the arc source during sustained high-amperage operation. Ideal for professional welding environments where tip longevity and consistent arc quality are required.

Key Features

• 0.045-inch wire diameter, 0.054-inch nominal bore with plus or minus 0.003-inch ID tolerance
• Rated for welding applications up to 600 amps
• Machined from 122 DHP copper alloy for excellent electrical conductivity and smooth bore surface
• Twist-lock design secures tip to diffuser without thread engagement, increasing electrical contact surface area
• Quarter-turn clockwise rotation reveals a new wear point, effectively doubling tip service life
• Thick-walled design functions as a heat sink to conduct heat away from the arc
• Part number and wire diameter marked on each tip for easy identification

Compatibility

Compatible with Tweco Spray Master and Tweco No. 6 MIG guns rated 350 to 600 amps, as well as specific MIG gun series designed for use with 16 Series consumables. Fits slip-on and thread-on nozzle styles.

Installation Notes

Installation is performed by a qualified welder or MIG gun technician. Power down and disconnect the welding machine before replacing the contact tip. Thread the tip onto the gas diffuser using the M8 x 1.25-6g thread and twist to lock securely before resuming operation. When the active wear point is reached, twist a quarter turn clockwise to expose a fresh wear surface rather than replacing the tip immediately.

Technical Specifications

• Wire Diameter: 0.045 inches
• Bore (Nominal ID): 0.054 inches
• OD: 0.375 inches
• Length: 1.5 inches
• Thread Size: M8 x 1.25-6g
• Current Rating: 600 amps maximum
• Material: 122 DHP copper alloy
• ID Tolerance: plus or minus 0.003 inches
• Weight: 0.03 pounds
• Quantity per Pack: 25

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1160-1137
