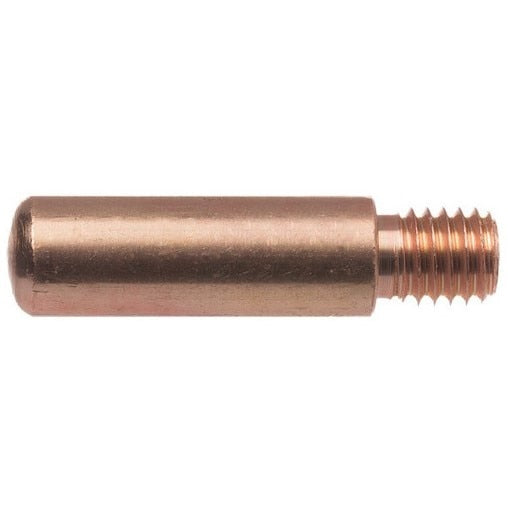

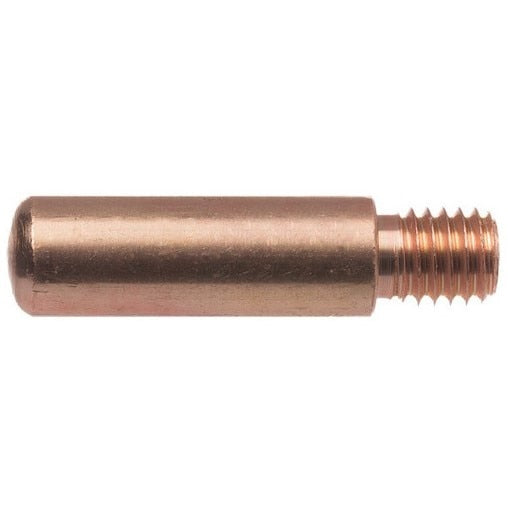

Tweco 1160-1109 Mig Contact Tip 0.078 in 600A Pack of 25

Product Description

The TWECO 1160-1109 is a 16 Series Standard Heavy Duty MIG contact tip rated for welding applications up to 600 amps. Designed for use with 350-600A Tweco Spray Master and Tweco No. 6 MIG guns, this tip accommodates 5/64 inch (0.078 inch) wire with a 0.09 inch nominal bore ID and 0.375 inch OD. It measures 1.5 inches in length and threads in with an M8 x 1.25-6g thread. The tip is machined from 122 DHP copper alloy tubing, which provides a consistent, smooth inside diameter surface held to a +/- 0.003 inch tolerance. Sold in packs of 25.

This contact tip is suited for heavy-duty industrial MIG welding environments where high amperage and extended duty cycles are the norm. It fits applications requiring 350-600A output, including structural, fabrication, and manufacturing settings. The tip is compatible with slip-on or thread-on nozzle styles and is marked with the part number and wire diameter for quick identification on the job. A quarter-turn clockwise rotation when the first wear point is reached exposes a new wear point, effectively doubling the tip service life.

Key Features

• Rated up to 600A for heavy-duty MIG welding applications
• Machined from 122 DHP copper alloy tubing for consistent inside diameter surface
• Inside diameter tolerance held to +/- 0.003 inch for reliable wire feed
• Thick-walled design acts as a heat sink, conducting heat away from the arc source
• Twist-lock design locks in place on the gas diffuser, increasing electrical contact surface area
• Quarter-turn clockwise rotation reveals a second wear point, doubling tip service life
• Part number and wire diameter marked on each tip for easy field identification

Compatibility

Compatible with Tweco Spray Master MIG guns rated 350-600A and Tweco No. 6 MIG guns. Fits slip-on and thread-on nozzle configurations using M8 x 1.25-6g thread. Designed for use with 5/64 inch (0.078 inch) welding wire.

Installation Notes

Installation is performed by a qualified welding technician or MIG gun service professional. Always power down and de-energize the welding system before replacing contact tips. Thread the tip into the gas diffuser hand-tight using the M8 x 1.25-6g thread and confirm the twist-lock engagement before resuming operation. Do not overtighten, as this can deform the tip or diffuser threads.

Technical Specifications

• Wire Diameter: 0.078 inch (5/64 inch)
• Bore ID: 0.09 inch nominal
• Outer Diameter: 0.375 inch
• Length: 1.5 inches
• Thread Size: M8 x 1.25-6g
• Amperage Rating: Up to 600A
• Material: 122 DHP Copper Alloy
• Inside Diameter Tolerance: +/- 0.003 inch
• Weight: 0.04 pounds
• Quantity per Pack: 25
• UOM: Each

Standard Information

• Brand: TWECO
• Manufacturer Part Number: 1160-1109
